DC-Servo Linear Stage With CONEX™ Controller
DC-Servo Linear Stage With CONEX™ Controller
The CONEX-MFACC is a CONEX-CC DC motor controller/driver coupled with the all-steel MFA-CC linear stage. The unit is a miniature, low-cost option which offers precision motion in space-confined applications.
- Affordable DC motor controller/driver integrated with a standard MFA linear stage
- Ultra-compact controller and driver
- Low-noise linear amplifier technology for smooth motion and less motor heating
- Fast USB communication for Out-of-the-box use
- 25 mm travel and 100 nm MIM
- All-steel construction with precision-ground, double-row linear ball bearings See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-MFACC DC Servo Linear Stage With CONEX™ ControllerMotorized Linear Stage, MFA-CC Integrated with CONEX-CC Controller |
Features
Scalable Architecture
Complete Your Conex System
CONEX-PS is an essential need to supply power to your Conex devices and it is purchased separately. The supplied power can be shared by modules using the optional CONEX-PS-CB power chain cable; one cable is included in this kit and additional cables can be purchased separately.
We also offer the CONEX-BP base plate which is used to securely mount up to 6 CONEX-AGP motion controllers to save you space and bring you convenience.
Compact Controller with Integrated Stage
In terms of size, the CONEX-CC controller is comparable to a deck of cards, only measuring 93 x 53 x 23 mm. Six controllers can fit on a CONEX-BP baseplate. The CONEX-MFACC is ideal for space-confined applications.
All Steel Stage

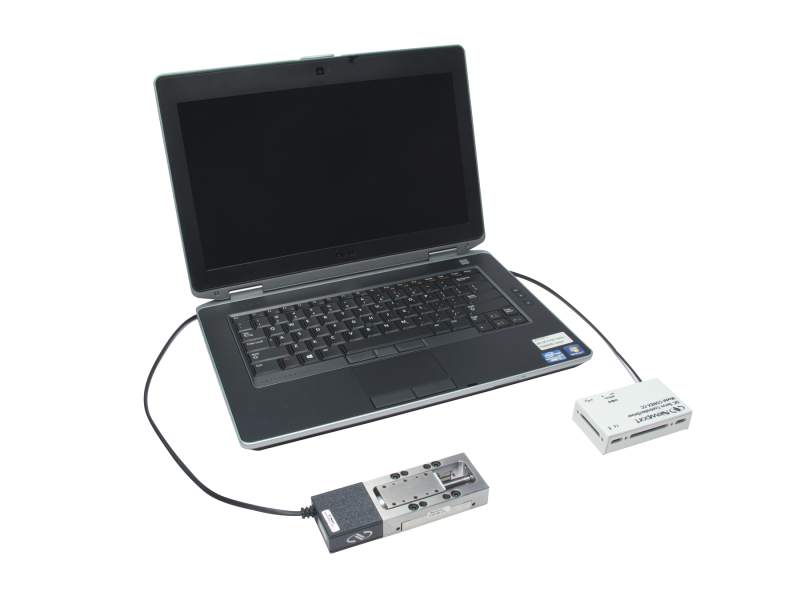

USB Communication with PC
Communication between the CONEX™ controller and PC is achieved via the integrated USB interface, providing a fast ubiquitous communication protocol. For OEM's or security sensitive applications, RS-232 and RS-485 are embedded onto the controller.
Simple Programming with Extensive Language Options
Linear Amplifier
Out-of-the-box Control
Accessories
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-BP Base Plate, Mounts Multiple CONEX™ Controllers | |||||
 | CONEX-PS 1Power Supply, 24 VDC, CONEX™ Motion Controllers | |||||
 | CONEX-PS-CB 2Power Chain Cable, 100 mm Length, CONEX™ |
- Power Supply sold separately.
- A CONEX-PS-CB is included in each CONEX-CC product. Purchase more as needed.
Resources
Technical Notes
GUI_Launch_error_AdminRights_solution(33.9 kB, PDF)
Software
CONEX-CC_Installer_Win10(5.8 MB, ZIP)
Manuals
CONEX-CC Command Interface User Manual(816.5 kB, PDF) CONEX-CC Controller GUI User Manual(1.1 MB, PDF) CONEX-CC Introduction, Safety & Service(1.6 MB, PDF) MFA Linear Stages User's Manual(1.4 MB, PDF) CONEX-CC - Controller Documentation(1.2 MB, PDF)
Literature
CONEX Datasheet(4.2 MB, PDF) MFA Data Sheet(1.4 MB, PDF)
