Most Oriel Fiber Bundles use 11 mm ferrules. Having a common external bundle diameter simplifies coupling and positioning. Convert SMA or ST terminations to 11mm ferrules to make them compatible with Oriel accessories. Also, the ferrules described here may be added to third-party fiber assemblies and liquid light guides.
- Convert fibers with SMA fibers to Oriel 11 mm terminations
- Convert fibers with ST connectors to Oriel 11 mm terminations
- Adapt third-party fiber optic cables and liquid light guides for use with Oriel accessories See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

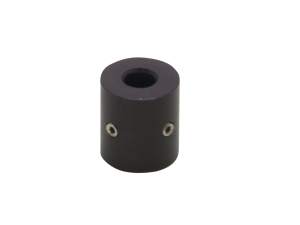

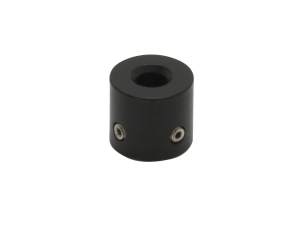

 | 77640 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length | |||||
 | 77641 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length | |||||
 | 77642 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length | |||||
 | 77663 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length | |||||
 | 77665 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length | |||||
 | 77666 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length | |||||
| 77667 Ferrules for Oriel Fiber BundlesFiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length | |||||
 | 77670 Ferrules for Oriel Fiber BundlesFerrule Converter, SMA Termination to 11mm Standard Ferrule | |||||
 | 77675 Ferrules for Oriel Fiber BundlesFerrule Converter, ST Termination to 11mm Standard Ferrule |
Features
Convert fibers with SMA fibers to Oriel 11mm terminations
Most Newport fiber optic cable assemblies are offered with standard 11 mm ferrule terminations. For those with SMA terminations, we offer the model 77670 to convert the termination type to be compatible with our standard fiber holders. You can also convert any third-party fiber with an SMA termination.
Model 77670 ferrule converter
Convert fibers with ST connectors to Oriel 11mm terminations
Most Newport fiber optic cable assemblies are offered with standard 11 mm ferrule terminations. For those with ST terminations, we offer the model 77675 to convert the termination type to be compatible with our standard fiber holders.
Model 77675 ST fiber ferrule converter
Adapt third-party fiber optic cables and liquid light guides for use with Oriel accessories
Third party fibers and liquid light guides with cylindrical terminations may be converted to standard Oriel 11mm terminations by use of these ferrules. This allows them to be compatible with Oriel's wide array of fiber coupling accessories. These standard Fiber Optic Ferrules are aluminum cylinders that attach to the tips of fiber bundles, using set screws. Contact Newport Sales for more information on OEM opportunities.

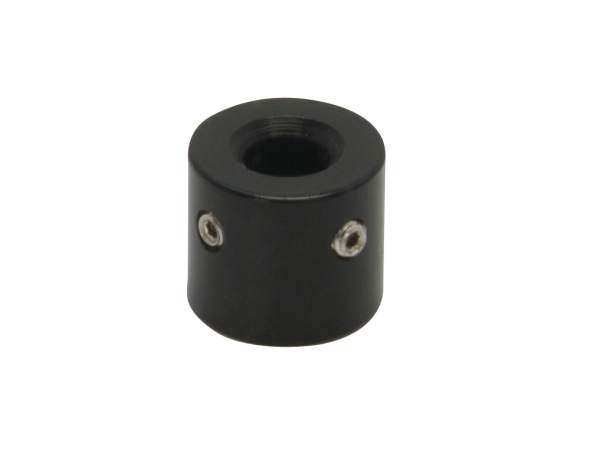

Model 77641 ferrule converter
