Performa-i Hex-Driven Mirror Mounts
Performa-i Hex-Driven Mirror Mounts

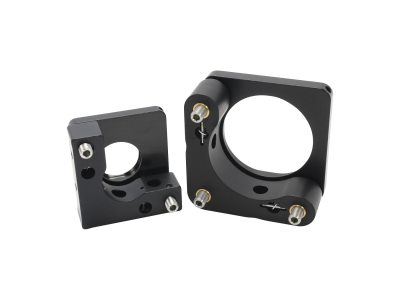

The Newport's Performa-i series Industrial kinematic mounts have been optimized for OEM applications and feature precise angular adjustment, high stability, and "set, lock, & forget" capability.
- Stable kinematic mechanism
- Space-saving geometry
- Stress-relieved aluminum construction
- Locking, 80- and 100-TPI hex-key actuators
- Threaded aperture versions for thin optic
- Dual mounting holes enable left or right-handed configurations See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

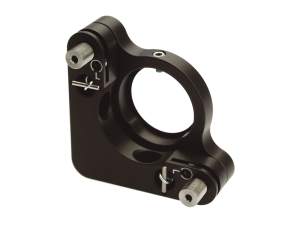

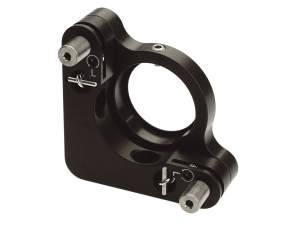

 | P100-AI21 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 2 Locking Allen-Keys | |||||
 | P100-AI28 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 1.0 in., 80 TPI, 2 Locking Allen-Keys | |||||

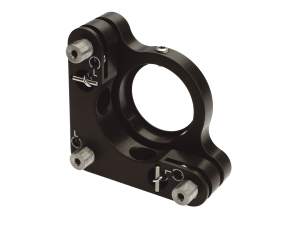

 | P100-AI31 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 3 Locking Allen-Keys | |||||
 | P100-AI38 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 1.0 in., 80 TPI, 3 Locking Allen-Keys | |||||
 | P100-At28 Performa-i Hex-Driven Mirror MountsMirror Mount, Thin Optic, 1.0 in., 80 TPI, 2 Locking Allen-Keys | |||||
 | P100-At38 Performa-i Hex-Driven Mirror MountsMirror Mount, Thin Optic, 1.0 in., 80 TPI, 3 Locking Allen-Keys | |||||

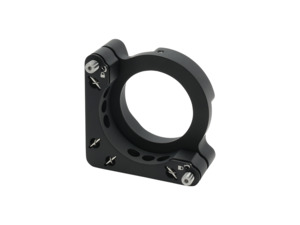

 | P200-AI28 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 2.0 in., 80 TPI, 2 Locking Allen-Keys | |||||
 | P200-At28 Performa-i Hex-Driven Mirror MountsMirror Mount, Thin Optic, 2.0 in., 80 TPI, 2 Locking Allen-Keys | |||||
 | P50-AI21 Performa-i Hex-Driven Mirror MountsMirror Mount, PERFORMA-i, 0.5 in., 100 TPI, 2 Locking Allen-Keys | |||||
 | P50-At21 Performa-i Hex-Driven Mirror MountsMirror Mount, Thin Optic, 0.5 in., 100 TPI, 2 Locking Allen-Keys |
Features
Performa-i Industrial Mount Features
- A slim profile, less than an inch thick, to save space
- Newport's patented thread lock for better long-term stability
- Type-III, hard anodized surfaces for wear resistance of the ball-tipped adjusters
Threaded Aperture Mounts for Thin Optic

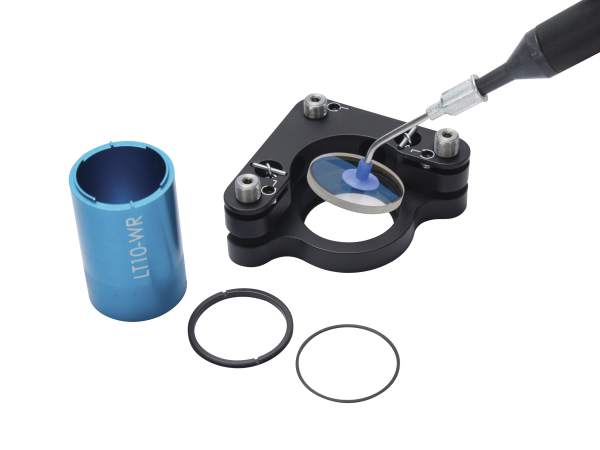

The threaded aperture versions are designed to hold thin optics and lenses with threaded retainers. P100-At28 and P100-At38 include not only a threaded retaining ring but also a protective Delrin spacer to prevent scratching the optic's coating or surface as it is secured. P50-At21 and P200-At28 feature a fully threaded design and include two retaining rings for holding the optic. They also allow for mounting of lens tubes or other optical components with matching threads. Vacuum pick-up tools and spanner wrench facilitate installation and removal of the optic.
Locking Allen-Key Adjusters

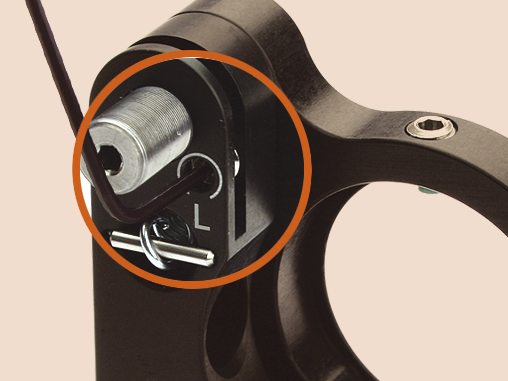

Performa-i Series industrial mounts feature Allen-key adjustments to save space and prevent unintended adjustment. A flexure lock is built into the mount body and exerts a tangential force on the screw to prevent rotation. Adjustment and locking actions are accomplished using a single tool from the same side of the mount.
Stability Ensured by Kinematic Design

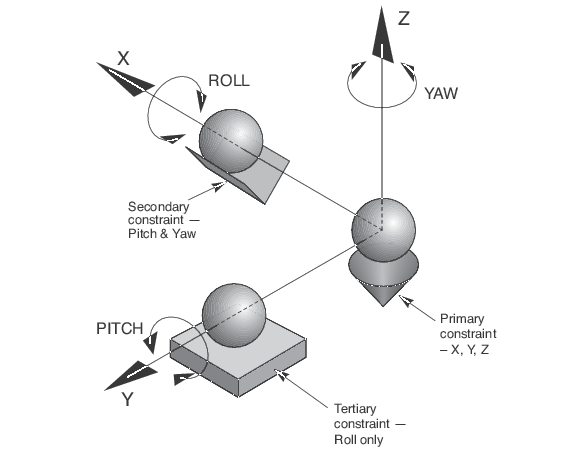

The design of the these mounts follows kinematic principles to ensure the highest stability and precision. Each degree of freedom is constrained just once using the Cone, V, and Flat configuration.
See The Newest OEM Mirror Mounts
The newest and best performing OEM mirror mounts come from Newport. We've focused on incorporating key features for industrial applications into each mount including alignment pin slots, adhesive wells and actuator locks. Click the video link here to see the industry's most cost-effective, compact, and stable mirror mounts.
Accessories
Additional Industrial Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9817-6-K Mirror Mount, Stability, Center, 1.0 in., 3 Allen-Keys | |||||

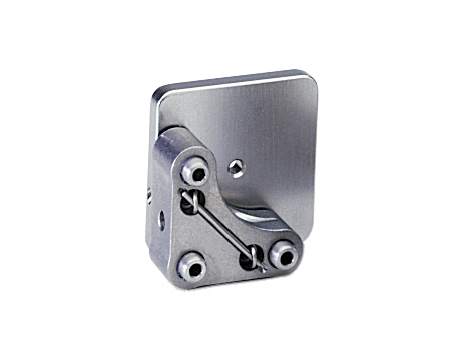

 | 9873-K Blank Plate Mount, Tiny, 3 Allen-Key Adjustment, 2-56 Thd. | |||||

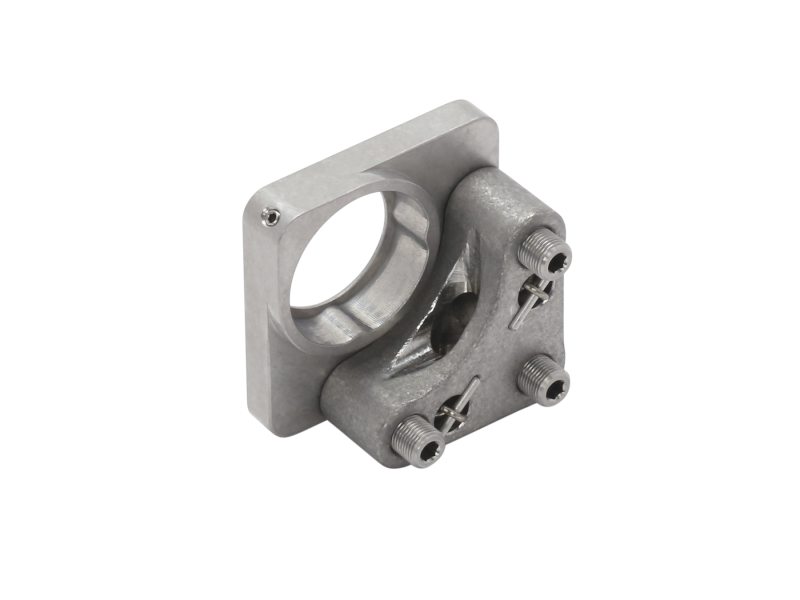

 | 9876-K Mirror Mount, Tiny, Corner, 0.5 in., 3 Allen-Keys | |||||

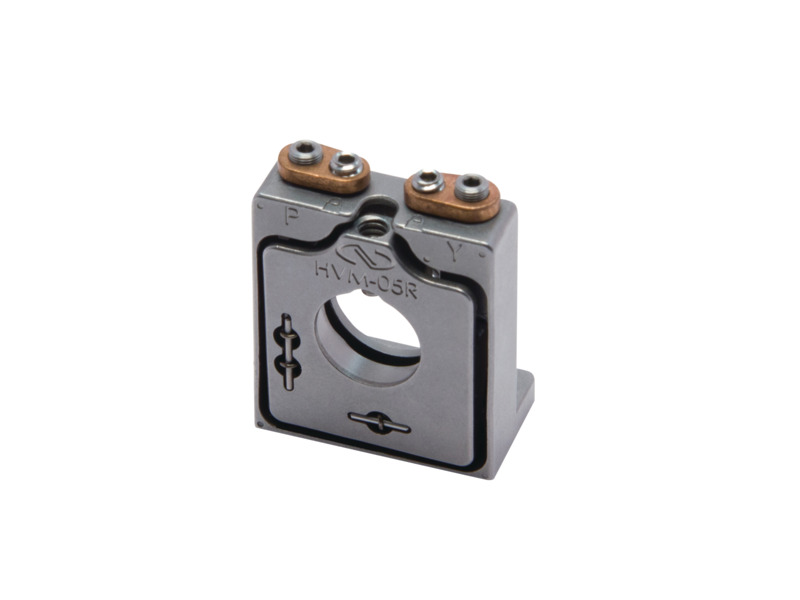

 | HVM-05r Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys | |||||
 | HVM-1i Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32 | |||||

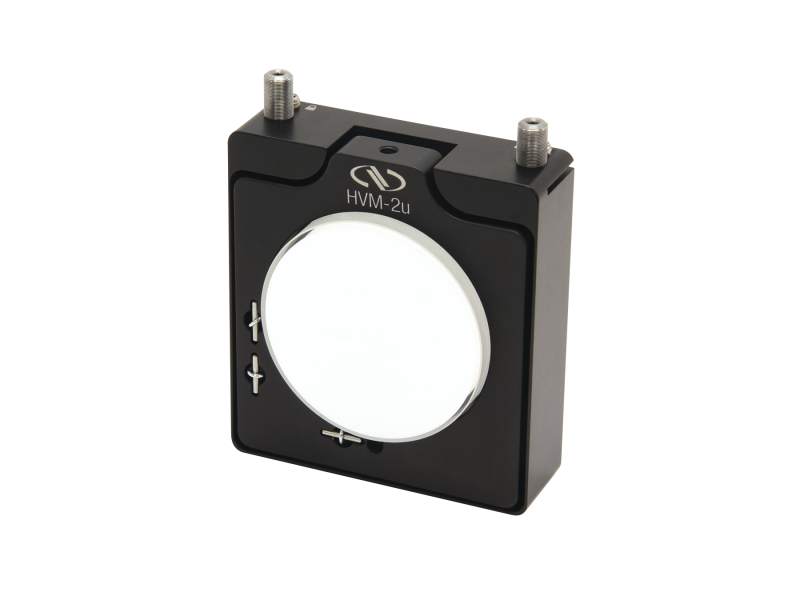

 | HVM-2u Optical Mount, Industrial, Vertical Drive, 2 in., 2 Locking Allen-Keys | |||||

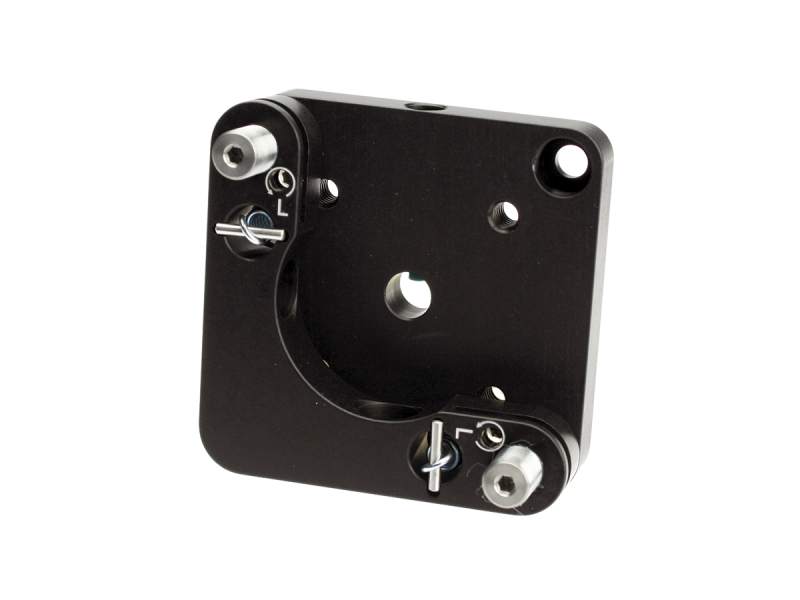

 | P100-PI21 Platform Optical Mount, PERFORMA-I, 2 x 2 in., 100 TPI, 2 Allen-Key | |||||

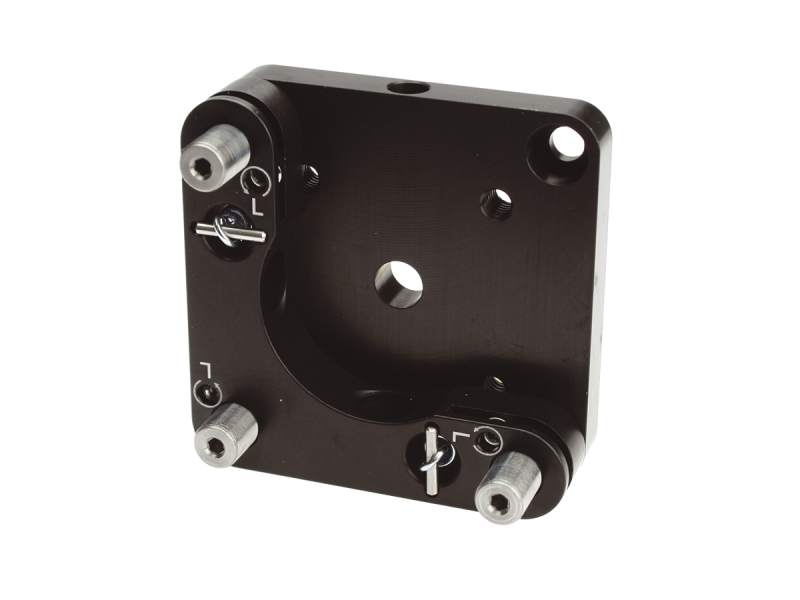

 | P100-PI31 Platform Optical Mount, PERFORMA-I, 2 x 2 in., 100 TPI, 3 Allen-Key | |||||

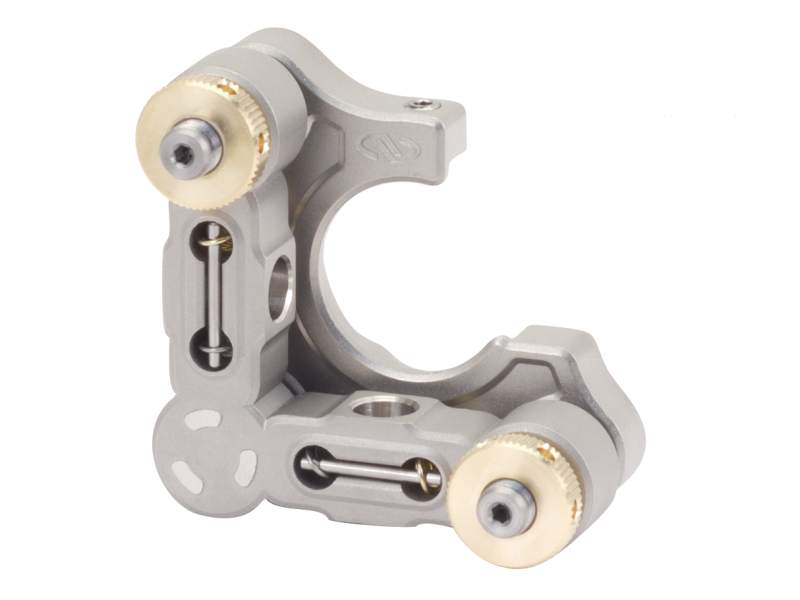

 | SC100-F2H Mirror Mount, Suprema<sup>®</sup>, Clear Edge, 1.0 in., (2) 100-TPI Locking Hex | |||||
 | SS050-F3 Mirror Mount, Suprema<sup>®</sup>, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators | |||||

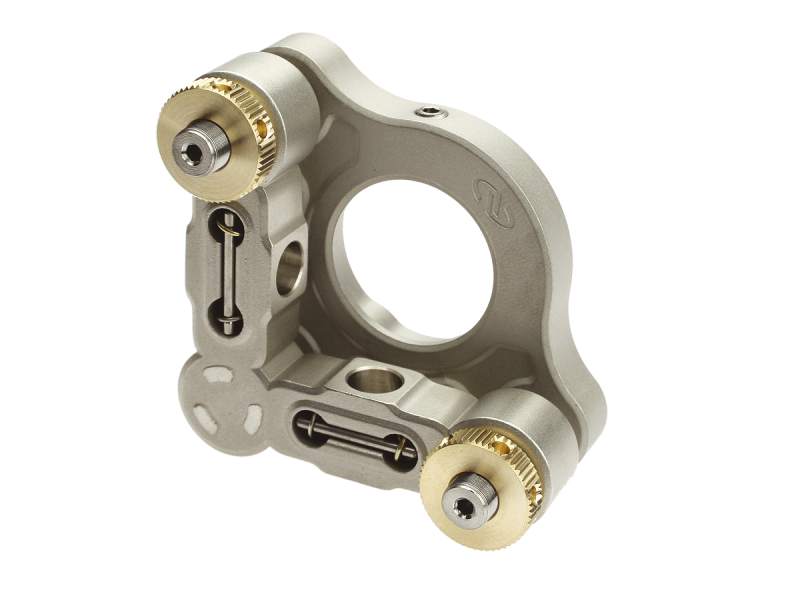

 | SS100-F2H Mirror Mount, Suprema<sup>®</sup>, 1.0 in, (2) 100-TPI Locking Hex-Broach Actuators | |||||
