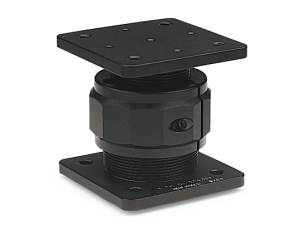

Knob Adjust Variable Height Platforms
Knob Adjust Variable Height Platforms
Our knob adjustable variable-height platforms feature a 2 to 4 inch height range with with 0.002 in. resolution. They lock solidly and can support up to 50 lbs.
- Ideal for vertical positioning of translation stages
- Exceptional load capacity and resolution
- 50 lb load capacity
- 8-32 and 1/4-20 or M4 and M6 mounting threads
- Top plate doesn't rotate during height adjustment See All Features
Features
Knob Adjustable Platform
Each revolution of the adjustment knob corresponds to 0.25 in. of vertical travel. The platform can be adjusted to be between 2 and 4 inch height.
Locking Screw
A locking screw on the side of the adjustment knob allows the platform height to be securely fixed.
Universal Table Mounting
The base of the big lab jack has 1/4-20 (M6) through holes for mounting to metric or imperial optical tables or breadboards.
