Optical Post and Pedestal Lab Jacks
Optical Post and Pedestal Lab Jacks
Tiny lab jacks simplify the vertical alignment of small-area photodetectors, optical posts or optical pedestals. They offer 1/8 inch of travel with 0.001 in. resolution.
- Ideal for positioning posts and pedestals
- 3.2 mm vertical travel
- M4 or 8-32 threads See All Features
Specifications
Features

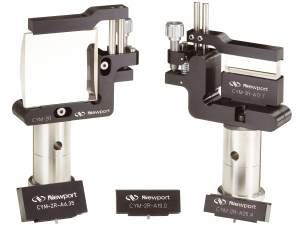

Fine Position Devices Mounted on Optical Pedestals
Threaded 8-32 or M4 holes on the top and bottom let you mount these tiny lab jacks directly to a post or pedestal. A single setscrew locks each jack solidly. In the example shown, a free space optical receiver is positioned vertically for beam alignment.
Precision Vertical Travel
Tiny lab jacks offer 3.2 mm of vertical travel with a resolution of 0.03 mm. They can support a 4.4 N load capacity. The upper platform doesn't rotate during height adjustment.
