Linear Stage Cable Management Solutions
Linear Stage Cable Management Solutions
Cable management solutions help protect motorized stage cables from damage during operation, optimize workspace, and improve maintenance and safety. They are ideal for industrial applications and complex systems.
- Flat cables for ILS300LM stages
- Cable chains for ILS300LM, IMS-LM, and ONE-XY stages See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

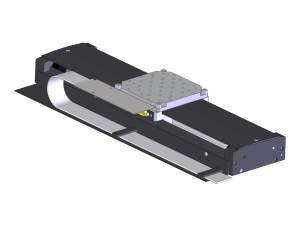

 | ILS300LM-CF Linear Stage Cable Management SolutionsCable, Flat for ILS-LM, 300mm travel | |||||
 | ILS300LM-CFXY Linear Stage Cable Management SolutionsCable, Flat for ILS-LM, 300mm XY travel | |||||

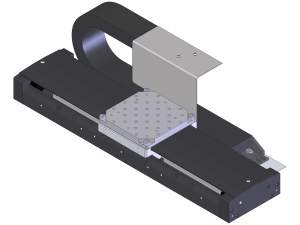

 | ILS300LM-CH Linear Stage Cable Management SolutionsCable Chain, for ILS-LM, 300 mm Travel | |||||

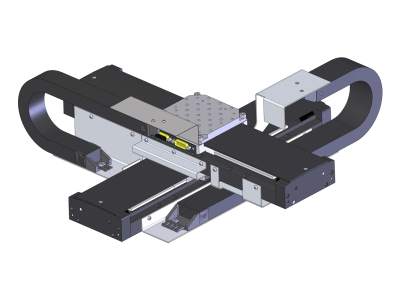

 | ILS300LM-CHXY Linear Stage Cable Management SolutionsCable Chain, for ILS-LM, 300 mm XY travel | |||||

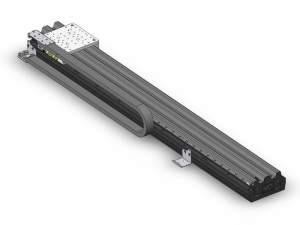

 | IMSLMC Linear Stage Cable Management SolutionsCable Chain Kit, IMS Stage, Single Axis | |||||
 | IMSLMC2 Linear Stage Cable Management SolutionsCable Chain Kit, IMS Extended Travel Stages, Single Axis | |||||
 | MLT-CML Linear Stage Cable Management SolutionsCable Chain Kit, MLT200 and MLT250 | |||||
| MLT-CMS Linear Stage Cable Management SolutionsCable Chain Kit, MLT25, MLT50 and MLT100 |
Features
Prevents Cables from Affecting Performance
By properly supporting the weight of cables without sagging or stress, cable management solutions prevent the negative effect of cables pulling on the stage carriage.
Optimizes Workspace
By placing cables into a limited, controlled area, access to the critical parts of a system is maximized. In particular, the flat cable carrier designed exclusively for the ILS300LM high-performance, 300-mm travel, linear motor stage offers a lower height and allows mounting of loads flushed to the top surface of the stage. Additionally, properly housed cables are not susceptible to getting caught in the moving parts of the system.
Facilitates Maintenance
Cable management solutions route cables efficiently while protecting them, avoid tangling, and provide easier tracing of cable paths when performing maintenance on the system or troubleshooting.
Versatile Cable Chains
Cable chains enable routing of cables to the stationary base of the stage and are typically more economic than flat cable carriers. Furthermore, the length of a chain's cable tracks can be adjusted according to the travel range.
