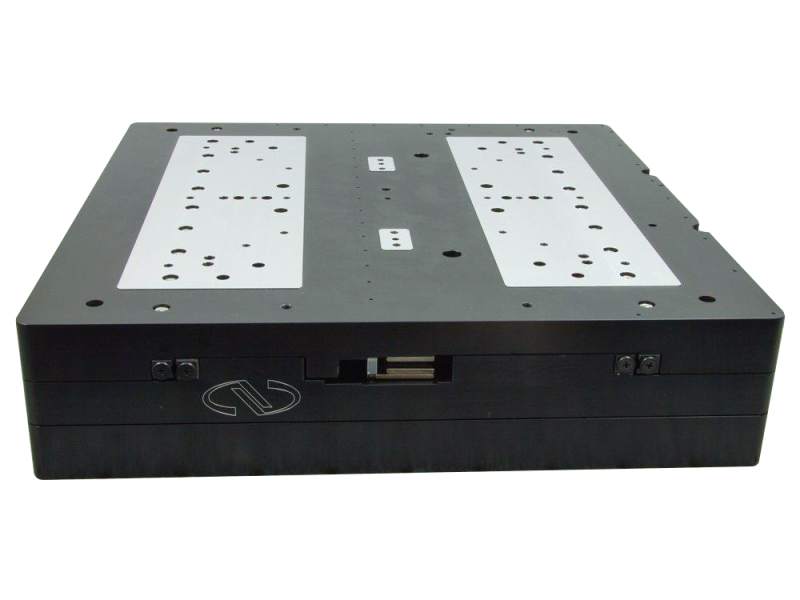

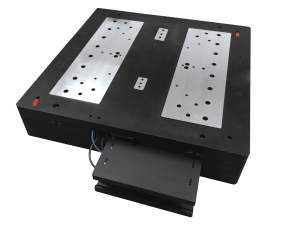

One-XY Series Integrated Linear Motor XY Linear Translation Stages

The ONE-XY uniquely integrates both the X and Y axes in a low-profile design with excellent positioning accuracy, flatness, straightness, stiffness, MIM, and repeatability.

Integrated XY stages with built-in orthogonality
Excellent planarity with micron-level straightness and flatness
Low profile three plate design reduces stacking errors and increases stiffness
High efficiency, non-cogging linear motor
Linear encoder for nano-scale MIM and repeatability

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		ONE-XY100 One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 90 mm Travel	UNIVERSAL
		ONE-XY100HA One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 90 mm Travel, High Accuracy	UNIVERSAL
		ONE-XY200 One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 190 mm Travel	UNIVERSAL
		ONE-XY200HA One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 190 mm Travel, High Accuracy	UNIVERSAL
		ONE-XY300 One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 290 mm Travel	UNIVERSAL
		ONE-XY300HA One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 290 mm Travel, High Accuracy	UNIVERSAL
		ONE-XY60 One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 50 mm Travel	UNIVERSAL
		ONE-XY60HA One-XY Integrated Linear Motor XY Linear StagesMotorized XY Linear Stage, Linear Motor, 50 mm Travel, High Accuracy	UNIVERSAL

Compatible Controllers

Compatible motion controllers for these linear motor driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV02 Driver Module and a E5820A Encoder Adapter for each axis.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV02 Driver Module and a E5820A Encoder Adapter for each axis.

Specifications

[calculators:text.product.notes]

Also available in a high accuracy (HA) version. Specifications measured on stage centerline, 50 mm above mounting surface. Newport provides NIST traceable, test results.

Features

Increased Stiffness

For better stability, the wide separation of cross-roller bearings and a thick middle plate ensures higher stiffness against cantilevered loads.

Micron-level Straightness and Flatness

Because of the ONE-XY's precision grinding and cross-roller bearings, it achieves micron-level straightness and flatness.

Ironless Linear Motor

The high efficiency, ironless linear motor has the advantage of higher speed, acceleration and system responsiveness without wear to motor brushes or drive screws, significantly reducing heat generation. Additionally the non-cogging feature of the Ironless Linear Motor ensures excellent speed stability. Not only does the ironless motor provide these advantages, it also results in high-throughput and high reliability.

Integrated X and Y Axes

The ONE-XY's most distinguishing feature is its 3 plate design, allowing movement in both X and Y direction with a low profile relative to stacked stages. Orthogonality is built into the design, therefore enhancing the XY accuracy.
