Mirror Mount Fiber Optic Adapters
Mirror Mount Fiber Optic Adapters
These fiber optic adapters allow users to quickly adapt fiber optic components with standard mounts.
- SMA, FC, FCA adapters for 25.4 mm mounts
- Fiber chuck adapter for 25.4 mm mounts
- Versatile and easy to use See All Features
Features
Fiber Chuck Adapter

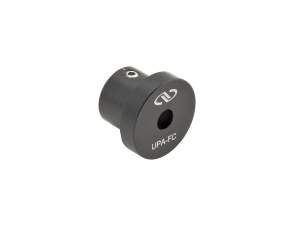

The UPA-FC adapts standard 0.25 in. diameter fiber chucks to 1 in. Optic Mounts. It secures the fiber chuck with a single set screw and has a reference mark for use with the degree scale on the 561-RFC (shown), fiber chuck rotation mount.
SMC, FC, FCA Adapters

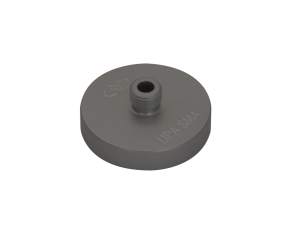

These fiber optic adapters hold connectorized fibers having SMA, FC, or FCA terminations. They are designed to fit into mirror mounts, lens mounts or any other mount that can hold a 25.4 mm diameter optic.
Compatible with 1-in.Mounts
All of the UPA series fiber adapters are compatible with 1-in. diameter mirror mounts. Shown here is the Suprema® SX100-F2KN-254 mirror mount holding a bare fiber using the UPA-FC fiber chuck adaptor and the 561-RFC fiber chuck.
Accessories
Fiber Chucks
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FPH-DJFiber Chuck, Delrin-Jawed, 300-1000 micron Fiber | |||||
 | FPH-JFiber Chuck, Teflon Lined, 125-250 micron Fiber | |||||
 | FPH-SFiber Holder, 80–200 micron Fiber | |||||
 | FPH-SRStrain Relief, Bare Fiber, Delrin Jaws | |||||
 | 561-RFCFiber Chuck Rotation Mount, 561 Series |
Fiber Patch Cables
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-MBB-C-3FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 3 m, FC |
Compatible 1-in. Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | U100-A2KMirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs | |||||
 | 9807Mirror Mount, Classic, Center, 1.0 in., 3 Knobs | |||||
 | M1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators | |||||
 | LH-1DBMirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE | |||||
 | HVM-1iMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32 | |||||
 | SU100-F2KMirror Mount, Suprema®, 1.0 in, Two 100 TPI Locking Knob Actuators |
Fiber Aligners
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9016NFFive-Axis Fiber Positioner, Tiny, Small Collimator or Ferrule, 8-32 | |||||
 | 9095Five-Axis Fiber Launcher, Flexure Design, Bare | |||||
 | 9091Optical Fiber Positioner, XYZθXθY, Singlemode, 8-32 | |||||
 | FPR-2AFiber Optic Positioner, XYZθxθyθz, Bare, FPH-S,FPH-J, or FPH-DJ |
