PulseScout2 Modular Autocorrelator
PulseScout2 Modular Autocorrelator
PulseScout2™ Optical Autocorrelators are a versatile, easy-to-use modular diagnostic tool for measuring ultrafast pulses from both high repetition rate (MHz) oscillators and low repetition rate (kHz) amplifiers from Visible to IR wavelength range.
- Broad Ultrafast Pulse Width Capability
- Broad VIS-NIR Wavelength Range
- Works with High and Low Rep Rate Lasers
- Easy to Align
- Collinear and Non-Collinear Configurations are Standard
- SCPI Interface Software Included See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PSCOUT2-BASE PulseScout2 AutocorrelatorPulseScout2 Autocorrelator, Base Model, 20-3500 fs, 420-1600 nm |
Features
Broad Ultrafast Pulse Width Capability

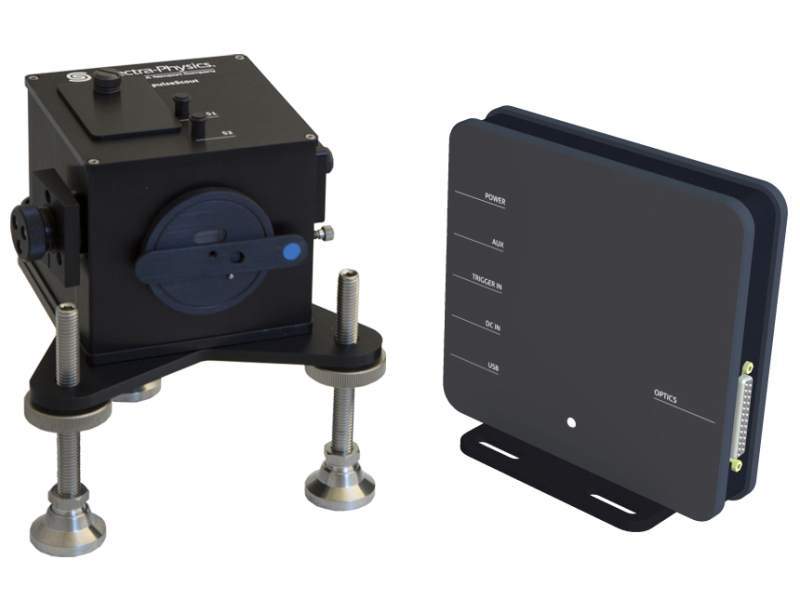

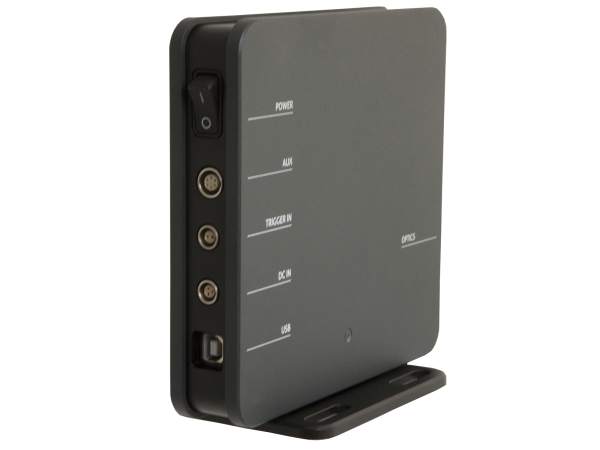

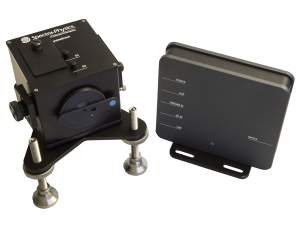

The PulseScout2 is a Michelson interferometer based autocorrelator capable of measuring pulse widths from 20 fs to 3.5 ps in the 420 -1600 nm wavelength range. It requires horizontally polarized input with a minimum beam diameter of 2 mm (1/e2). The base model contains the optical head shown on the left and control unit shown on the right. Interchangeable detector modules are offered but are not included with the base model.
Interchangeable Detector Modules

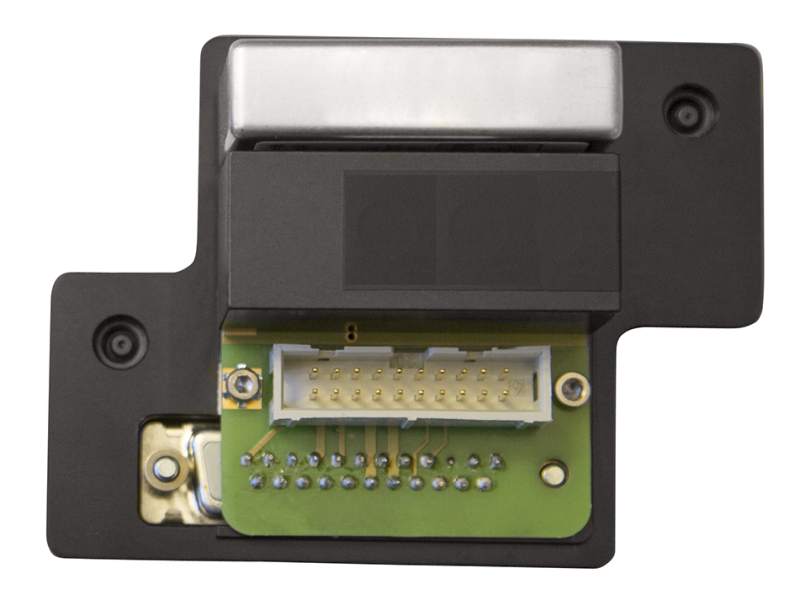

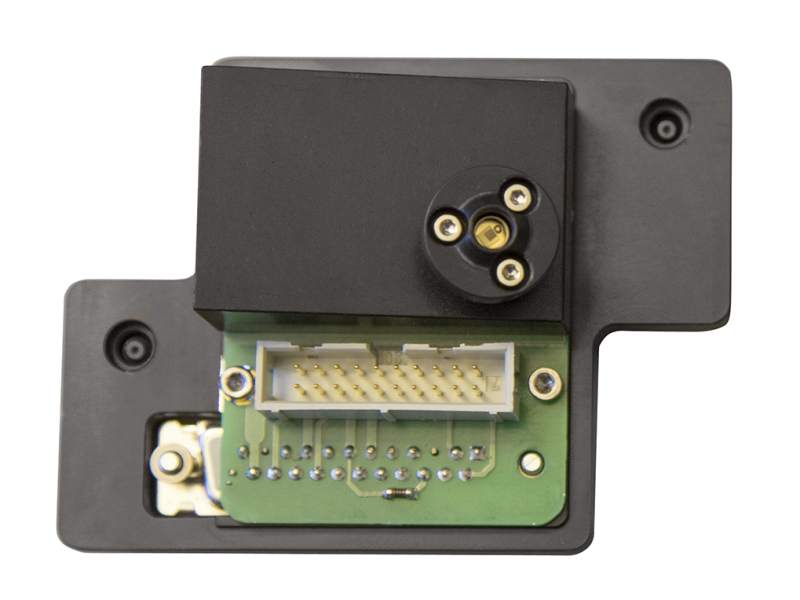

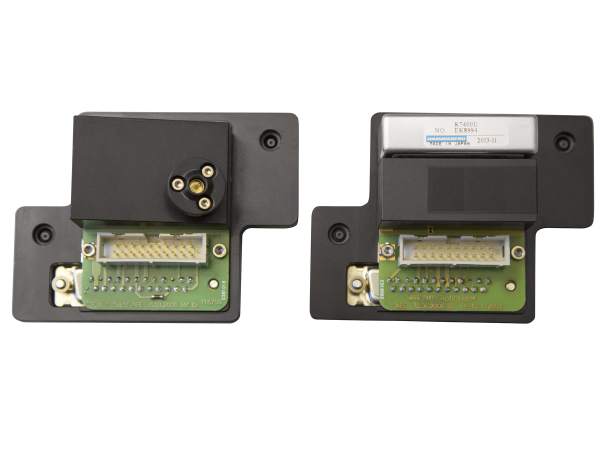

The PulseScout Detector modules are available in BLUE (420 - 550nm), RED (520 - 750nm), NIR (700 - 100nm), and IR (1000 - 1600nm). Two versions are offered for each wavelength range: photomultiplier tube PMT models for high repetition rate (MHz) oscillators (such as Tsunami®) and photodiode detector PD models for low repetition rate (kHz) amplifiers (such as Spitfire® Ace™). Each detector comes with a low-pass filter and SHG crystal.
Easy to Set up and Reconfigure
The PulseScout2 optical head in base model does not include a detector module. Interchangeable detector modules can be used with the same autocorrelator optical head. You can simply replace the detector module to change the wavelength range or detector type in seconds.
Computer Interface Software Suite Included
Built-in Target for Easy Alignment
Alignment is straight-forward with the built-in target and crosshair, and can be done easily even for first time users, making this autocorrelator an ideal diagnostic tool for all of your ultrafast applications.
Collinear and Non-Collinear Configurations
Accessories
Required Detector
One or more detectors must be purchased separately. Select a Photodiode or Photomultiplier Tube Detector covering one of four spectral ranges.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PSCOUT2-BLUE-PD PD Detector Module, BLUE, 420-550 nm, Inc. SHG Crystal, PulseScout2 | |||||
 | PSCOUT2-BLUE-PMT PMT Detector Module, BLUE, 420-550 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-IR-PD PD Detector Module, IR, 1000-1600 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-IR-PMT PMT Detector Module, IR, 1000-1600 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-NIR-PD PD Detector Module, NIR, 700-1100 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-NIR-PMT PMT Detector Module, NIR, 700-1100 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-RED-PD PD Detector Module, Red, 520-750 nm, Inc. SHG Crystal, PulseScout2 | |||||
| PSCOUT2-RED-PMT PMT Detector Module, Red, 520-750 nm, Inc. SHG Crystal, PulseScout2 |
Resources
Literature
PulseScout2 Autocorrelator Datasheet(887.8 kB, PDF)
Software
pulseScout2 Control Software(214.4 MB, ZIP)
Manuals
PulseScout2_Manual_v1.1.pdf(52.4 MB, PDF)
