Rotating Column Vertical Positioners
Rotating Column Vertical Positioners
Designed for adjusting the vertical location of optical mounts, these stages use a space-efficient threaded column to set the height of the platform.
- Combines vertical adjustment with rotation
- Quick height adjustment with locking mechanism
- Up to 60 mm of vertical travel See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

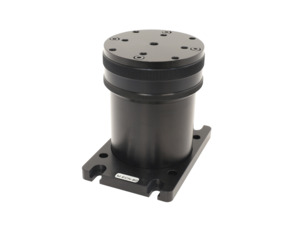

 | ECN-80 Rotating Column Vertical PositionersLab Jack, 80 mm Diameter Rotating Column, 106 to 166 mm Travel Range | |||||
 | M-ECN-46 Rotating Column Vertical PositionersLab Jack, 50 mm Diameter Rotating Column, 41 to 59 mm Travel Range | |||||
| M-ECN-80 Rotating Column Vertical PositionersLab Jack, 80 mm Diameter Rotating Column, 106 to 166 mm Travel Range | |||||

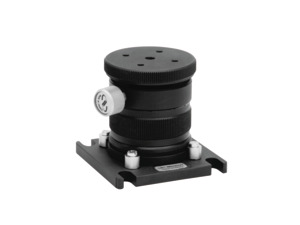

 | M-ECR-46 Rotating Column Vertical PositionersLab Jack, 50 mm Diameter Rotating Plate, 56 to 71 mm Travel Range | |||||
 | M-ECR-80 Rotating Column Vertical PositionersLab Jack, 80 mm Diameter Rotating Plate, 101 to 131 mm Travel Range |
Specifications
Features
Threaded Column Height Adjustment
For the ECN Series, the height is adjusted by rotating the platform on a threaded column. Once at the desired height, the top plate can be oriented by rotating the entire column. A knurled ring securely locks the position of the platform.
For the ECR Series, the height is adjusted by rotating a knurled ring and then locked with a thumbscrew. The top plate of the ECR-80 can be freely rotated and locked in position with three side screws.
Variety of Threaded and Slotted Mounting Holes
The top platform on each of these lab jacks has an array of mounting holes and the base plate has slotted holes for mounting to an optical table hole pattern. ECN-80 and ECR-80 are also supplied with an adapter plate with 1/4-20 (M6) hole on a standard 1.0 in. (25 mm) grid.
