13 mm Travel ULTRAlign™ Integrated Crossed-Roller Bearing Steel Linear Stages

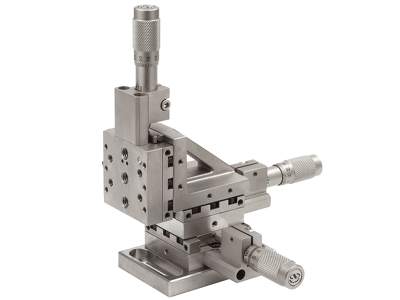

461 Series ULTRAlign™ crossed-roller bearing linear translation stages feature stainless steel construction, 13 mm of travel, and a low profile. They are available in single or multi-axis configurations. Crossed-roller bearings and precision-manufactured bearing reference surfaces provide linear travel with guaranteed <100 µrad deviation of each axis.

Extra thick plates and fewer mounting holes for stiffness and stability
Stainless steel construction with crossed-roller bearings for high stability and rigidity
Precise, linear travel with individually tested and guaranteed <100 µrad deviation
Left and right-hand stage stack configurations
Each axis can be locked in place

See All Features

Description	Compatibility	Price
461-X-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesManual Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	$756
461-XY-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXY Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	$1,282
461-XYZ-LH-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20, Left-handed	IMPERIAL	$2,078
461-XYZ-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	$2,078
461-XZ-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	$1,205
461-Z-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesVertical Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	$756
M-461-X-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesManual Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6	METRIC	$756
M-461-XY-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXY Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6	METRIC	$1,282
M-461-XZ-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesXZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6	METRIC	$1,205
M-461-Z-M 13 mm Travel ULTRAlign Crossed-Roller Bearing StagesVertical Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6	METRIC	$756

Show All

Specifications

Recommended Actuators

Features

Precision Control and Extra Stiffness

ULTRAlign Stainless Steel Crossed-Roller Translation Stages provide a low profile, yet solid and stable linear translation, that can be locked in place without disturbing translation or position. Perfect for many standard optical applications such as interferometry, linear translation by the crossed-roller bearings and the precision-manufactured bearing reference surfaces provide a maximum angular deviation of <100 µrad for any axis. Z-axis stages do not depend on springs for support, ensuring maximum vertical load capacity. The mounting surface of these stages has multiple threaded holes, available in either English or Metric units, to make mounting easy and versatile in most table-top optical systems.

Preloaded crossed-roller bearings provide repeatable, zero stick-slip linear motion with negligible side-play.

Versatile Stage Configurations

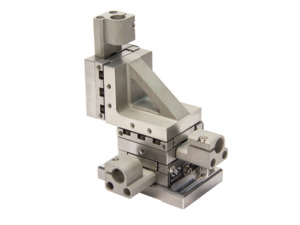

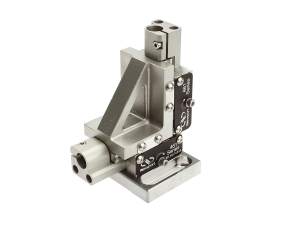

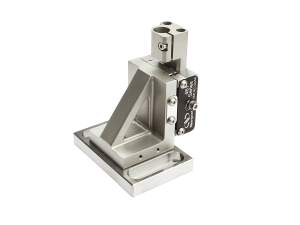

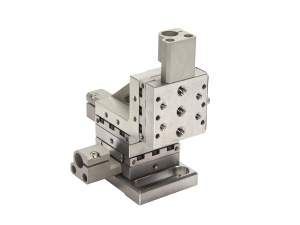

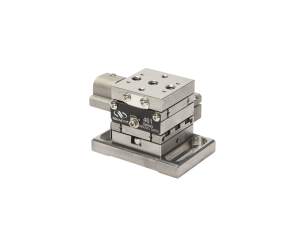

Multiple configurations for these stages are available to match your specific requirements: X, Z, XY, XZ and XYZ. XYZ stage is offered with a choice between left-handed and right-handed. In addition, the mounting base can be removed for an even lower profile. 1.0 in. (25.4 mm) travel version is also available.

Individually Tested to Guarantee <100 µrad Deviation

Each ULTRAlign Stainless Steel Crossed-Roller Translation Stage is tested individually to ensure it meets the <100 µrad angular deviation requirement. We don't just say it, we guarantee it. The actual test results are included with each stage.
