Interface Kit, Q Series Housing to Power Supply, DC Arc Lamps

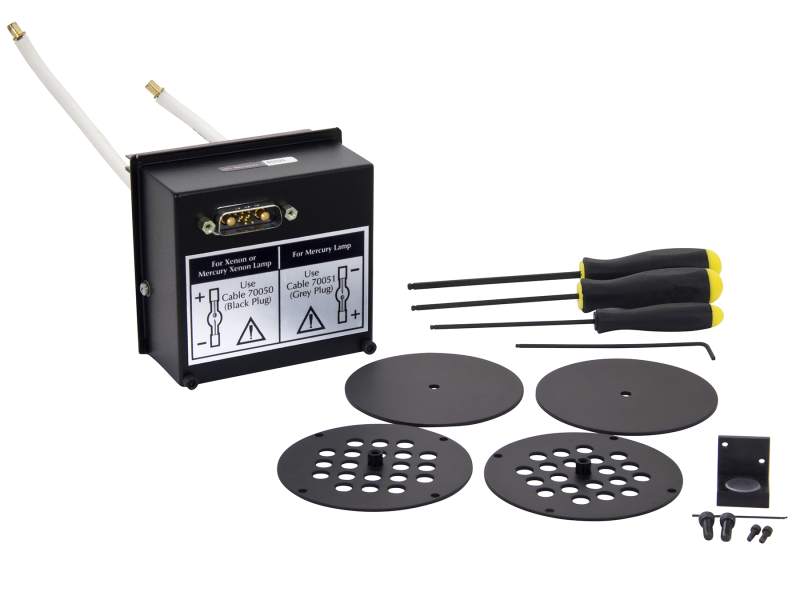

The 60025 Interface Kit is used to connect a Q Series lamp housing to the 69907 arc lamp power supply. This item provides ignition for Xenon and Mercury arc lamps. It also includes a safety interlock feature to ensure the lamp cannot be used without the lamp housing cover being in place. When ordering a Q Series Light Sources for arc lamps, this interface kit is provided along with all other items needed to power the lamp. If the 60000 Q Housing is being configured by ordering individual parts, the 60025 is a required item whenever an arc lamp is to be used. Note that the 60025 is not for use with IR emitters, deuterium lamps or quartz tungsten halogen lamps. Because the Q Series Lamp Housing is designed to be flexible and easy to reconfigure, when using these other types of light sources, order the appropriate interface kit.

Specifications

Technical Specs

Type
DC Arc Lamp Ignition Kit

Lamp Wattage
50 - 100 W

Type
DC Arc Lamp Ignition Kit

Lamp Wattage
50 - 100 W

Resources & Downloads

3D Product Models

2D Product Drawings

MKS EU ROHS3 - Interface Kits for Q Series Lamp Housings.pdf(233.6 kB, PDF)

Related Products

Compatible Lamps

Description	Compatibility
Xenon Arc Lamp, 75 W, 0.25 x 0.5 mm Effective Arc Size	UNIVERSAL	Learn More
Xenon Arc Lamp, 100 W, Ozone Free	UNIVERSAL	Learn More
Xenon Arc Lamp, 75 W, Ozone Free	UNIVERSAL	Learn More
Arc Lamp, Mercury, 100 W, 0.25 x 0.25 mm Effective Arc Size	UNIVERSAL	Learn More
Arc Lamp, Mercury, 50 W, 0.2 x 0.35 mm Effective Arc Size	UNIVERSAL	Learn More

Compatible Power Supplies

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Arc Lamp Power Supply, Universal, 40 to 200 Watt	UNIVERSAL				Learn More

Compatible Lamp Housings

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Lamp Housing, Q Series, Adjustable Reflectors & Up to 4 Condensers	UNIVERSAL				Learn More
