XYZ Linear Stage, Triple Divide, 1.1 in. Travel, 8-32 and 1/4-20 Threads

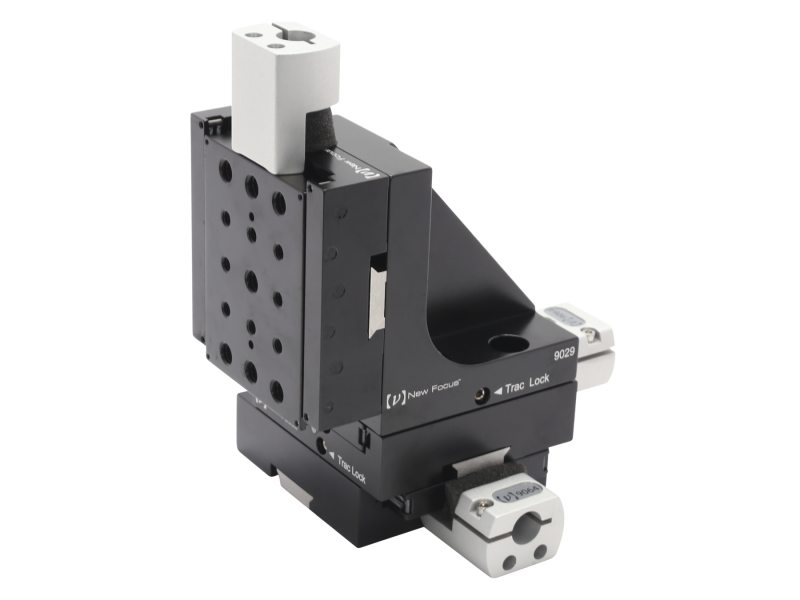

The 9064-XYZ Triple Divide XYZ Axis Translation Stage puts all the Triple-Divide™ stage pieces together to build an XYZ-translation stage with 1.1 inch travel that's as stable as a single piece. All these components can be easily reconfigured using our e⋅z⋅Trac. Precision holes in the track guarantee repeatability when you reconfigure the stage. Now you no longer have to put your XYZ stages on the shelf when you only need a single-axis stage. 8-32 and 1/4-20 threaded mounting holes. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.

Specifications

Technical Specs

Axes of Travel
X, Y, Z
Maximum Stage Travel
28 mm
Centered Normal Load Capacity
89 N
Straight Line Accuracy
<2.5 µm
Material
Aluminum
Bearings
Single-Row Ball Bearings
Thread Type
8-32 and 1/4-20

Recommended Adjustment Screw
9302
Recommended Vernier Micrometer
SM-25
Recommended Digital Micrometer
DMH-1
Recommended Lockable Micrometer
DM-25L
Recommended Piezo Actuator
8302

Axes of Travel
X, Y, Z
Maximum Stage Travel
28 mm
Centered Normal Load Capacity
89 N
Straight Line Accuracy
<2.5 µm
Material
Aluminum
Bearings
Single-Row Ball Bearings
Thread Type
8-32 and 1/4-20

Recommended Adjustment Screw
9302
Recommended Vernier Micrometer
SM-25
Recommended Digital Micrometer
DMH-1
Recommended Lockable Micrometer
DM-25L
Recommended Piezo Actuator
8302

Resources & Downloads

Manuals

9064 Translation Stages User Manual(1.4 MB, PDF)

Drawings And Cad

9064xyzrb-Drawing(137.7 kB, PDF)
20029064-XYZ-R(126.2 kB, PDF)
