Piezo Linear Stage, 12 mm travel, Vacuum Compatible
Model: AG-LS25V6
Product Series Overview

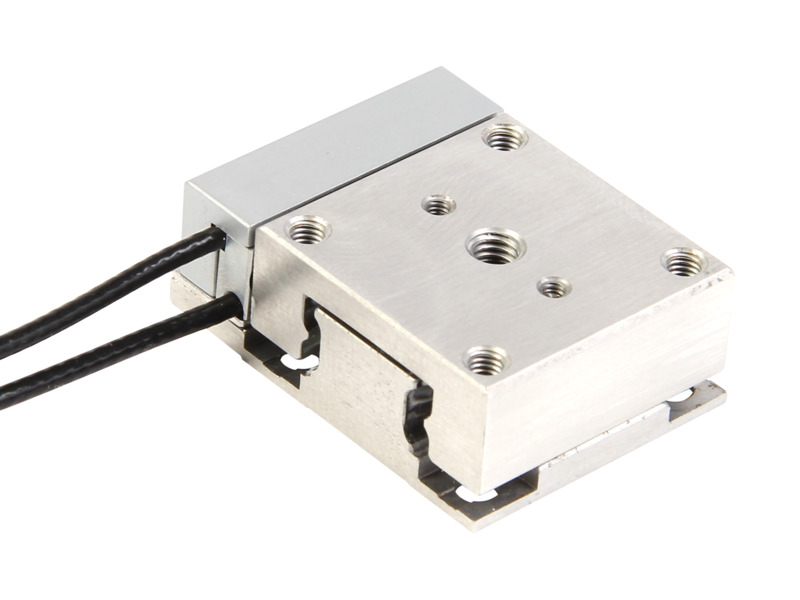

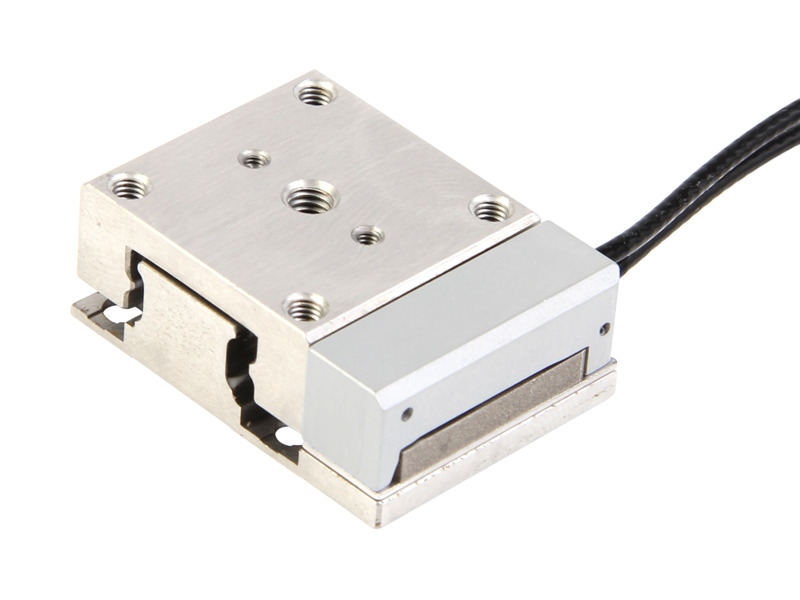

Agilis™ Piezo Motor Linear StagesThe AG-LS25V6 is the vacuum compatible version of the AG-LS25 piezo motor driven linear stage and is rated for 10-6 Torr. The AG-LS25V6 features 12 mm travel and precision motion is achieved by calibrated, pre-stressed linear ball bearings. The thermally matched stainless steel design and precision manufactured bearing surfaces provide ripple-free, low friction linear travel and angular deviations better than 200 µrad in any axis.
Use with either the Agilis™ AG-UC2 handheld, AG-UC8 or AG-UC8PC controllers.
Note: The connector supplied with the stage is not vacuum compatible due to various feed-through configurations and customer preferences. Please contact Newport for vacuum compatible connector options.
Multi-Axis Stage Configurations
Agilis™ piezo motor linear stages can be configured as XY, XZ, or XYZ stage stacks. You can use the 339233, 90 degree angle bracket for building XZ and XYZ stage configurations. Attention this bracket is not compatible with the AG-LS25-27 (as Z-axis). For XY stage assemblies of AG-LS25 stages, use the 4 x TC M3x4 screws supplied with each stage. The AG-LS25-27 & AG-LS25-27V6 must be positioned at the bottom of the stack (X-axis). The AG-LS25 & AG-LS25V6 stages can be stacked on top of the AG-LS25-27(V6) as the Y-axis, or as the Z-axis using the 339233, 90 degree angle bracket. Please note that the 339233, 90 degree angle bracket, is anodized and not vacuum compatible. An XZ stage stack is shown.
50 nm Minimum Incremental Motion
Vacuum Compatible Versions
Set-and-Forget Long-Term Stability
Ripple-Free and Low Friction Travel
