Lens Mount Barrel, 25.4 mm, M30 x 0.75 Lens Mounts

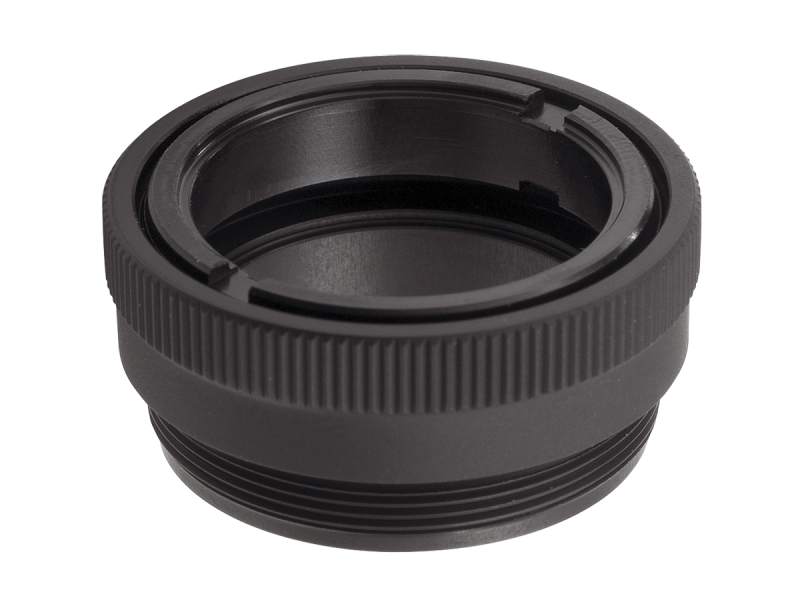

The B25.4 Lens Mount Barrel can be used to create optical systems by mounting it to X26 Rails and Carriers via SB or CB Series Lens Barrel Holders. The lens barrels consist of a M30 x 0.75 threaded body, and a retaining ring for 1 inch (25.4 mm) diameter lenses. When screwed together, the lens is securely held in place. For thick lenses, the retaining ring is reversible. Two or more lens barrels can be threaded end-to-end to construct simple optical systems. Several accessories are provided to assist in creating optical systems.

Specifications

Technical Specs

Type
Lens Mount Barrel

Optic Diameter
25.4 mm

Type
Lens Mount Barrel

Optic Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

B-SERIES-S(113.9 kB, PDF)

Other

B25.4_RoHS2021.pdf(284.5 kB, PDF)

Related Products

Accessories

Description	Compatibility
Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	Learn More
Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	Learn More
Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	Learn More
Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	Learn More
Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	Learn More

Similar

Description	Compatibility
Lens Mount Barrel, 12.7 mm, M20.25 RMS Lens Mounts	UNIVERSAL	Learn More
Lens Mount Barrel, 18 mm, M20.25 RMS Lens Mounts	UNIVERSAL	Learn More
Long Lens Mount Barrel, 18 mm, M20.25 RMS Lens Mounts	UNIVERSAL	Learn More
Lens Mount Barrel, 38.1 mm, M45 x 0.75 Lens Mounts	UNIVERSAL	Learn More

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Lens Barrel Holder, M30 x 0.75, 40 mm Optical Axis Height	UNIVERSAL				Learn More
		Optical Rail Carrier, 40 mm Length, M6 Thread, X26 Series	METRIC				Learn More
