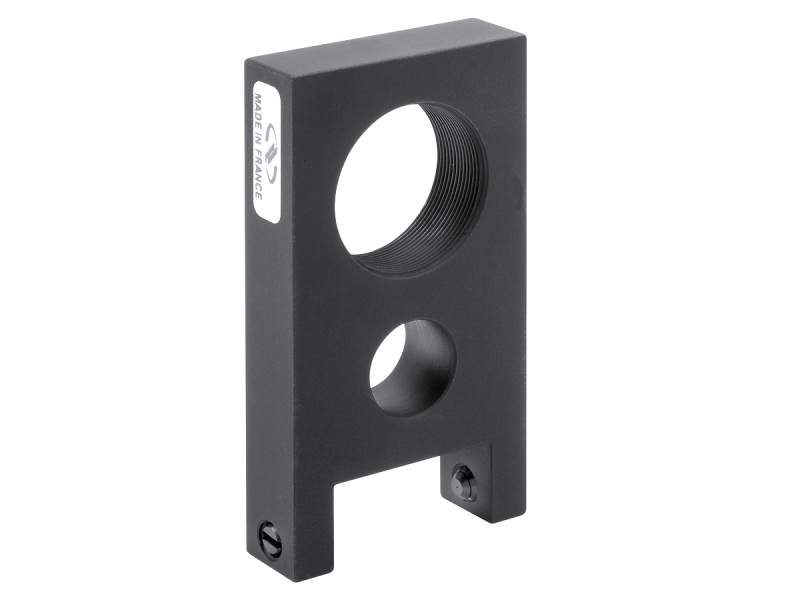

Lens Barrel Holder, M30 x 0.75, 40 mm Optical Axis Height

26 mm Optical Rail Mounts

The CB26.25.4 Lens Barrel Holder mounts directly to X26 Rails. It provides a means of holding B25.4 Series Lens Mount Barrels having M30 x 0.75 threads.

Specifications

Technical Specs

Type
Lens Barrel Holder
Thread Type
M30 x 0.75

Mounting Threads
Direct Rail Mount

Type
Lens Barrel Holder
Thread Type
M30 x 0.75

Mounting Threads
Direct Rail Mount

Resources & Downloads

3D Product Models

2D Product Drawings

CB26-S(72.5 kB, PDF)
