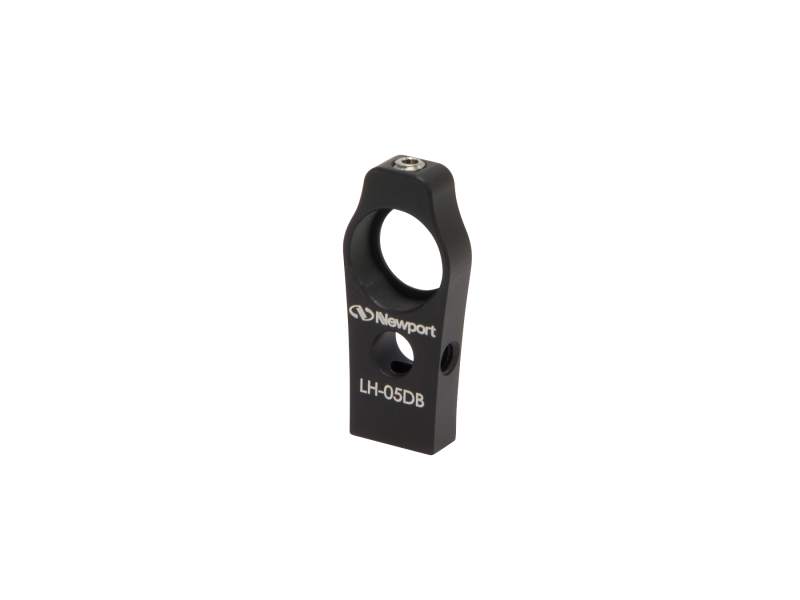

Mirror Mount, Fixed, 12.7 mm Diameter, 8-32 Thread, A-LINE

The A-LINE™ LH-05DB Fixed Mirror Mount is a convenient and economical solution for mounting Ø0.5 in. (12.7 mm) mirrors, beamsplitters or adaptors. The mount consists of a double-bored aperture and set screw to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with LH-GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Fixed Mirror Mount
Optic Diameter
12.7 mm
Adjustments
Fixed

Thread Type
8-32
Clear Aperture
11.4 mm

Type
Fixed Mirror Mount
Optic Diameter
12.7 mm
Adjustments
Fixed

Thread Type
8-32
Clear Aperture
11.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

LH-05DB-358(381.1 kB, PDF)

Other

LH-05DB RoHS Certificate(279.8 kB, PDF)
LH-05DB_RoHS2021.pdf(688.5 kB, PDF)
