Kinematic Mirror Mount, Insertable, 25.4 mm A-LINE

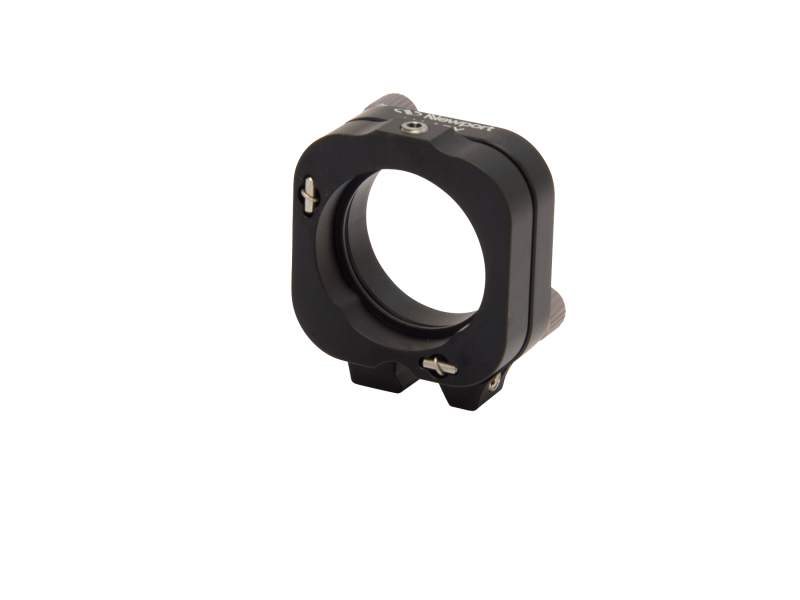

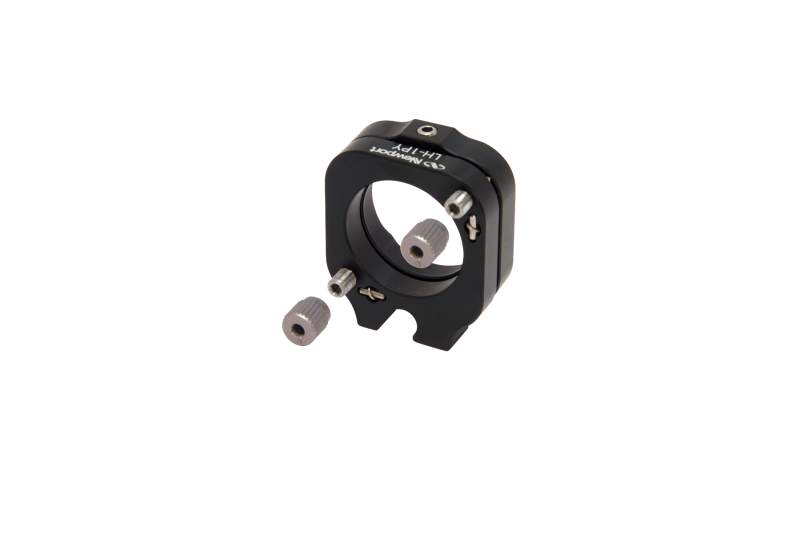

The A-LINE™ LH-1PY is an +/- 3-deg travel adjustable mirror mount for mounting Ø1 in. (25.4 mm) mirrors. The mount has a unique angled slot to allow it to be inserted on to the LH-GR guide rods. This feature allows the user to easily add and remove optics from the middle of a beam path with out disassembly. This mount has special threaded knobs which can be removed with the aid of a 5/64th (2-mm) hex wrench.

Specifications

Technical Specs

Type
Adjustable Mount
Adjustments
θx, θy
Optic Diameter
25.4 mm

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm

Type
Adjustable Mount
Adjustments
θx, θy
Optic Diameter
25.4 mm

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm

Resources & Downloads

3D Product Models

2D Product Drawings

LH-1PY-361(419.1 kB, PDF)

Other

LH-1PY RoHS Certificate(277.1 kB, PDF)
LH-1PY_RoHS2021.pdf(678.6 kB, PDF)
