Fine Focusing Lens Mount, 1.0 in., Micrometer Drive, 8-32 and M4, A-LINE

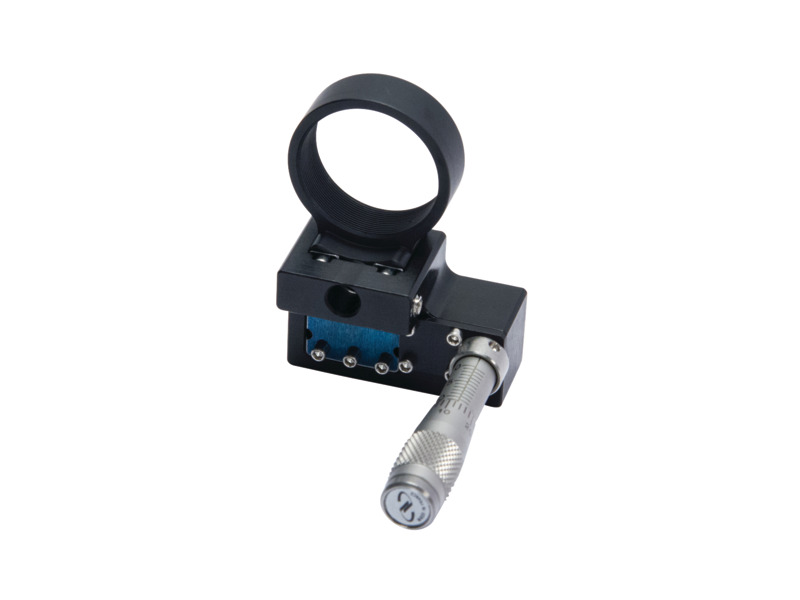

The LH-1TZ lens mount provides 1.5 mm of fine, z-axis focusing adjustment for 1.0 in. (25.4 mm) lenses. A micrometer driven parallel flexure mechanism delivers 1.7 μm of focusing sensitivity for applications in spatial filtering, fiber collimation, fiber alignment or interferometry. It is designed to be either guide-rod mounted in combination with other A-Line™ series mounts or can be post-mounted via its 8-32 or M4 threaded mounting hole on the base. The LH-1TZ includes two threaded retaining rings for holding 1-in lenses or other optics. 1-in. adaptors to mount optical fibers, microscope objectives or pin holes are compatible with the LH-1TZ.

Specifications

Technical Specs

Type
Adjustable Mount
Optic Diameter
25.4 mm
Adjustment Type
Micrometer
Adjustments
z

Optical Axis Height
41.3 mm
Thread Type
8-32 and M4
Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm

Type
Adjustable Mount
Optic Diameter
25.4 mm
Adjustment Type
Micrometer
Adjustments
z

Optical Axis Height
41.3 mm
Thread Type
8-32 and M4
Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
