Insertable Link Block, 1-in to 2-in, 8-32 Thread., A-LINE

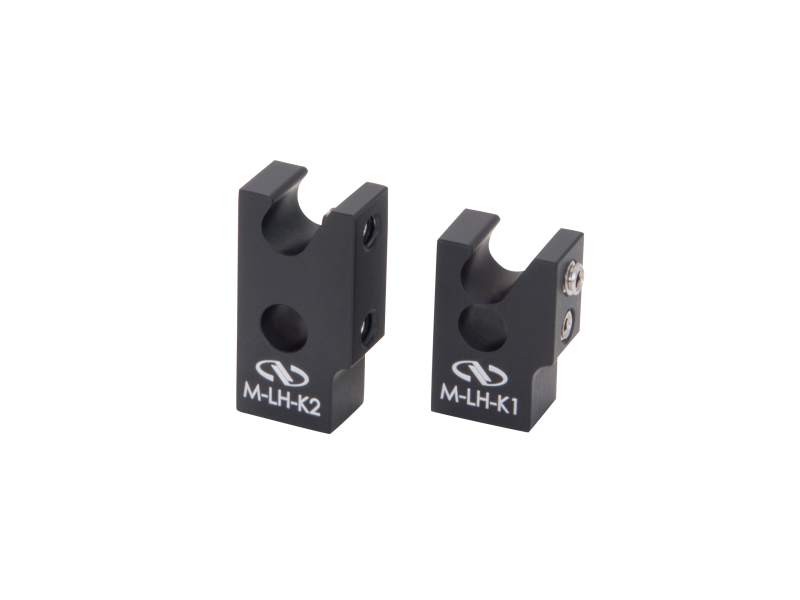

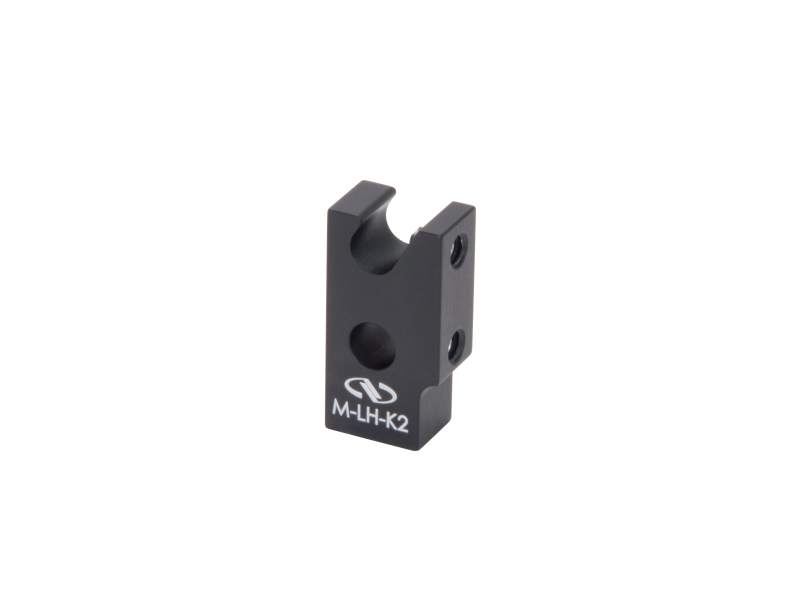

The A-LINE™ LH-K2 Insertable Link Block allows the user to align the optical centers of 1-in. and 2-in. A-Line lens mounts. The Link Block has two 6-mm alignment holes spaced 0.50-in.(12.7-mm) apart to align the two sizes of lens mounts. It incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The slotted guide rod hole can also be used as an insertable post mount for guide-rod-mounted group of A-line lens mounts.

Specifications

Technical Specs

Type
Rod Adaptor
Adjustment Type
Fixed

Thread Type
8-32
Adjustments
Fixed

Type
Rod Adaptor
Adjustment Type
Fixed

Thread Type
8-32
Adjustments
Fixed

Resources & Downloads

3D Product Models

2D Product Drawings

LH-K2 DWG(121.7 kB, PDF)

Other

LH-K2_RoHS2021.pdf(688.6 kB, PDF)
