Laser Machining Software, PRO, 3D & PCB Modules and Machine Vison PRO
Model: LMS-DXP3PP
Product Series Overview
Industrial Laser Machining SoftwareThe LMS PRO is the most advanced tool to create laser machining designs and control laser machines. Be it semiconductor production, mold texturing, or additive manufacturing – it has the flexibility to control most laser machining applications.
- Unlimited number of axes
- Galvo + Stages stitching and IFOV
- Complex 3D process and automation tools
- Includes 3D and PCB Modules
This version includes MV PRO which integrates machine vision functionality for LMS. It supports industrial cameras (IDS, AVT, Basler, Mightex, PointGrey and similar) and adds focus finding, view stitching functionalities as well as manual, semi-automatic and fully automatic sample alignment. It also unlocks calibration tools that use a camera for data collection.
3D Module Option

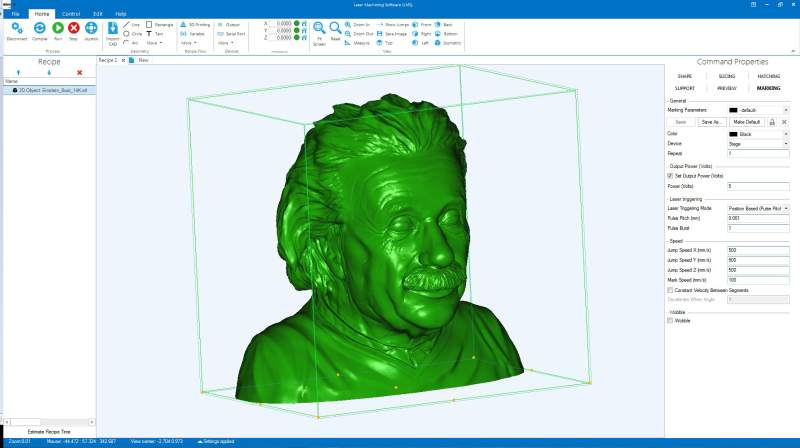

Option for LMS LITE. An addition for 3D files (STL, STP, IGES) import and preparation for laser 3D printing and/or deep laser engraving. It includes model fixing and support generation tools for 3D printing (included with LMS PRO).
Compatible Controller
The XPS-D Universal High-Performance Motion Controller is capable of controlling a variety of motor types and executing complex motion through a high-speed Ethernet TCP/IP interface. It features a user friendly interface and API's and provides extensive analog and digital I/Os for integrating external devices. The XPS-D can control up to 8 axes of motion in a single enclosure.
PCB Module Option
Option for LMS LITE. Adds Gerber and NC Drill / Excellon file support for PCB laser etching, drilling and cutting control. All the processes can be combined and controlled in LMS with minimal operator intrusion (included with LMS PRO).
Resources & Downloads
3D Product Models
2D Product Drawings
LMS Data Sheet(2.2 MB, PDF) Laser Machining Brochure 2018(3.4 MB, PDF)
