IDL Industrial Application Linear Motor Linear Translation Stages

The long-travel IDL industrial-grade linear stages boast the highest load capacity and speed of all linear motor stages. With features like a hard top cover, flexible side bands and air purge, and with a wide variety of sizes and travel ranges to choose from, these stages are well suited for demanding production enviroments. In particular, the IDL stages' outstanding accuracy, pitch and yaw performance make them ideal for laser micro-machining applications.

Built for industrial environments with debris protection, high throughput and reliability
High-efficiency, non-contact, ironless linear motor for fast motion and speed stability
Extended travel and high load capacities to fit different applications
Quick and reliable delivery based on customers' production needs

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		IDL165-100LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 100 mm Travel, 165 mm	UNIVERSAL
		IDL165-200LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 165 mm	UNIVERSAL
		IDL165-300LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 165 mm	UNIVERSAL
		IDL225-1000LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 1000 mm Travel, 225 mm	UNIVERSAL
		IDL225-1200LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 1200 mm Travel, 225 mm	UNIVERSAL
		IDL225-200LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 225 mm	UNIVERSAL
		IDL225-300LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 225 mm	UNIVERSAL
		IDL225-400LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 400 mm Travel, 225 mm	UNIVERSAL
		IDL225-500LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 500 mm Travel, 225 mm	UNIVERSAL
		IDL225-600LM IDL Industrial Grade Linear Motor Linear StagesMotorized Linear Stage, Industrial, Linear Motor, 600 mm Travel, 225 mm	UNIVERSAL

Show All

Compatible Controllers

Compatible motion controllers for IDL225-LM to IDL560-LM linear motor driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-EDBL High Power Amplifier.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-EDBL High Power Amplifier.

Compatible motion controllers for IDL165-LM linear motor driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 driver module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 driver module.

Features

Industrial-Level Build and Performance

With a focus on high throughput, heavy load capacity, and extreme durability, the IDL stages have been designed for the most rigorous demands of precision industrial laser microprocessing. Industrial grade hard covers, wear-resistant sidebands, air purge, and directed debris path make the IDL suitable for industrial environments.

Platform Sizes, Travel Ranges & Load Capacities for Popular Industrial Applications

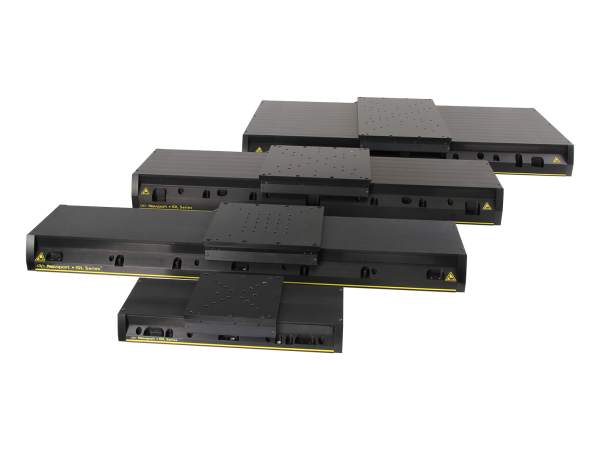

The various sizes of width, travel range and load capacities of the IDL family are available to fit numerous applications. Given the variety, these stages are directly stackable with each other, minimizing design and assembly time.

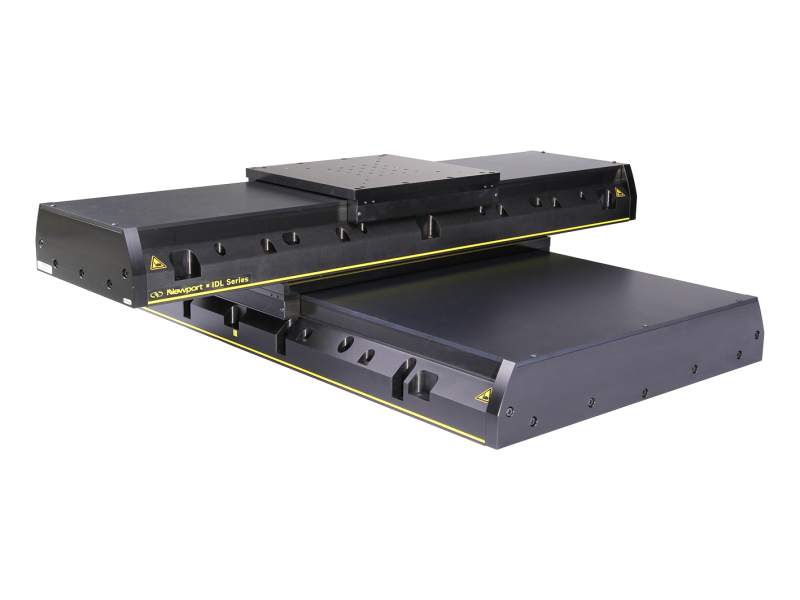

Easy Direct Mounting of XY Stack Configurations

IDL stages feature both imperial and metric mounting hole patterns allowing for flexible mounting.

Reliable Stage Delivery

Just like any other Newport product, the IDL series can be ordered both from stock or under a blanket schedule. This ensures that OEMs meet their commitments.

Individual Stage Metrology Report is Included

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
