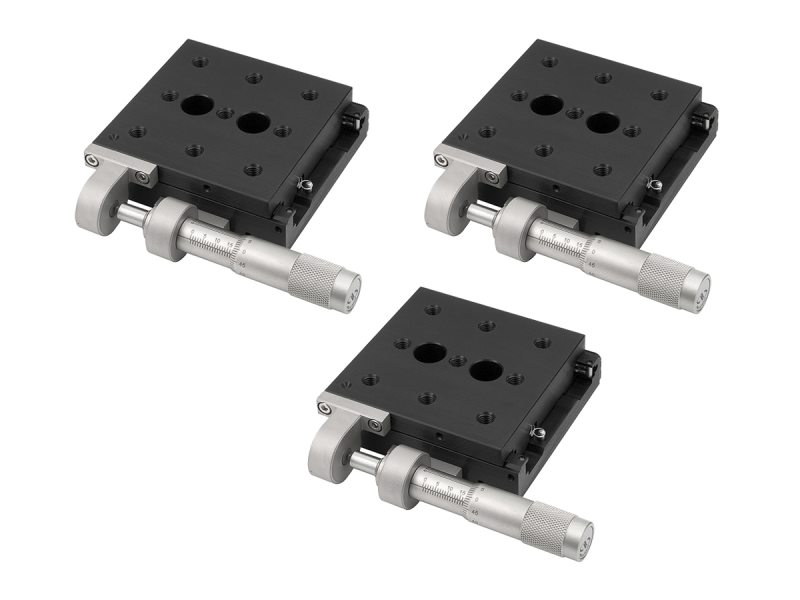

Linear Stage Bundle, Three M-423 Linear Stages with SM-25 Micrometers

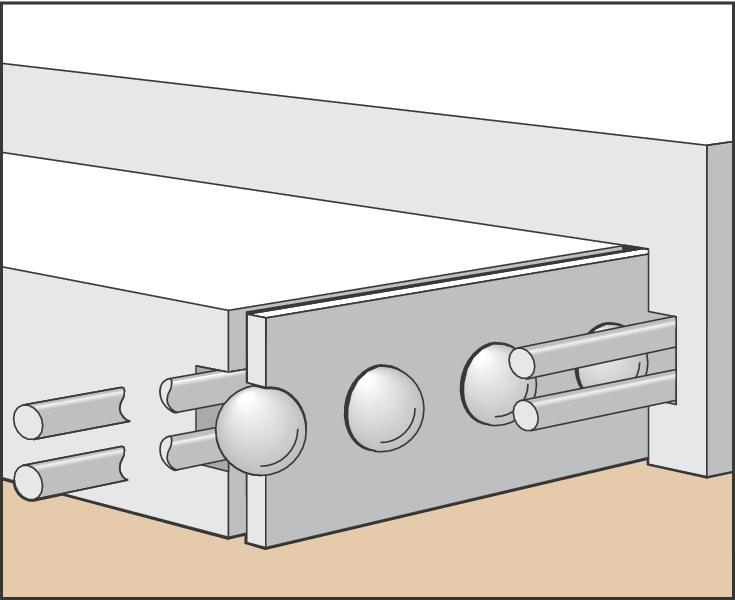

The M-423-MIC is a special bundle of three M-423 Linear Stages included with all required SM-25 Micrometers. The model M-423 translation stage, with its large 76.2 mm square platform, features exceptional performance, usability, and value with precision ball bearing construction – hardened balls rolling between opposing pairs of hardened and polished stainless steel rods providing better than 200 microradian angular deviation. For stability, repeatability, and exceptionally smooth motion, actuators bear upon a hardened carbide insert. Springs provide preload against the actuator tip to eliminate backlash. Although the stage is capable of traveling a full 25.4 mm with the SM-25 micrometer drive (included in bundle), the actuator mounting blocks can be relocated to accommodate 12.7 mm drives like the SM-13. This stage can also be reconfigured into a left-handed version with the micrometer on the opposite side.
