Linear Stage, High-Performance, Low-Profile, Ball Bearings, 101.6 mm, M6
Model: M-443-4
Product Series Overview

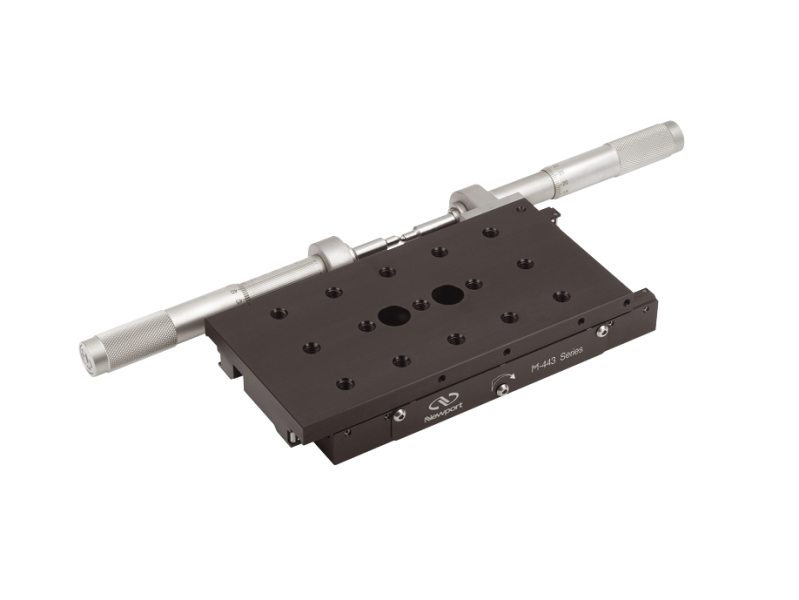

Extended Range, Ball Bearing StagesModel M443-4 is a low-profile, precision ball bearing linear stage with a maximum travel range of 101.6 mm It features exceptional performance, usability and value with a 258 N centered load capacity and M6 mounting holes. Hardened balls rolling between opposing pairs of hardened and polished stainless steel rods allow for stability, repeatability, and exceptionally smooth motion. Two actuators (sold separately) bear against each other, tip-to-tip, to enable up to 101.6 mm of travel. Springs provide preload against the actuator tips to eliminate backlash.
A stable stainless steel actuator mounting system allows your choice of manual or motorized actuators to be attached. Note that this stage does not have a lock and does not include the required two actuators. The following 50.8 mm travel actuators are recommended and may be ordered separately: AJS100-2 adjustment screw, SM-50 micrometer, and LTA-HS motorized actuator.
Ball-bearings Provide Smooth Linear Translation
Designed to be Reconfigured to Left or Right-Handed
These extended range stages are designed with symmetrical features allowing them to be reconfigured for left or right-handed operation. This video shows a 423 stage being reconfigured to have the micrometer accessible from the opposite side of the stage. This is needed to allow the stage to be used for vertical travel but is also useful for improving adjustment accessibility. Note, also, that the lock and the micrometer locations can be switched.
