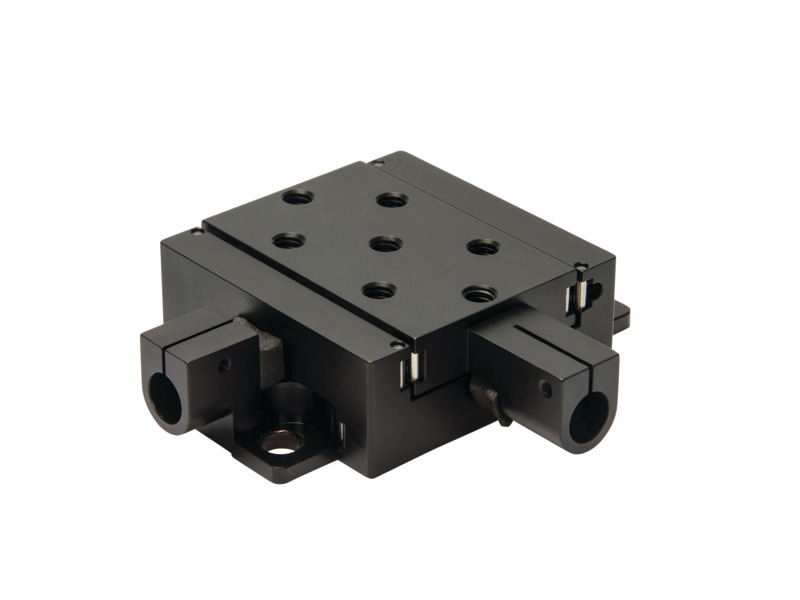

XY Linear Stage, Quick-Mount, 13 mm Travel, M6

The M-460A-XY 13 mm XY Travel Quick-Mount Stage has an integrated, yet modular, design allowing for increased versatility. The M-460A-XY features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The stages are spring loaded against the drive actuator for backlash free motion. Vertical-drive assemblies carry the load through the actuator spindle rather than the springs for positive load support. Metric M6 tapped mounting holes are provided. Two actuators are required and are ordered separately.

Stainless Steel Ball-Bearings for Smooth Translation

The light-weight aluminum construction translates using stainless steel ball bearings running along opposing pairs of polished stainless steel rods. The stages are also spring loaded against the drive actuator for backlash free motion. For the lower load capacity of the lightweight stage, this offers exceptional straightness of travel over the full 0.5-in. (or 13 mm) travel range, with <150 µrad deviation.

Fast Side Tab Mounting

Most standard stages mount beneath the translating component, requiring proper positioning to expose the mounting through holes. With the 460A Series Quick-Mount Linear Stages, however, convenient external mounting tabs eliminate this need. These stages offer the easiest mounting, regardless of the stage's initial position, for fast implementation into optical systems.

Low Profile Design Fits in Tight Spaces

Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.

Specifications

Technical Specs

Stage Type
Right-Handed
Axes of Travel
X, Y
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
67 N
Vertical Axial Load Capacity
22 N
Recommended Actuators
SM-13 mic, AJS100-0.5 screw
Angular Deviation
<150 µrad
Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive

Thread Type
M6
Recommended Adjustment Screw
AJS100-0.5
Recommended Vernier Micrometer
SM-13
Recommended DM Differential Micrometer
DM-13
Recommended Lockable Micrometer
DM-13L
Recommended TRA Motorized Actuator
TRA12CC or TRA12PPD
Recommended TRB Motorized Actuator
TRB12CC or TRB12PP

Stage Type
Right-Handed
Axes of Travel
X, Y
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
67 N
Vertical Axial Load Capacity
22 N
Recommended Actuators
SM-13 mic, AJS100-0.5 screw
Angular Deviation
<150 µrad
Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive

Thread Type
M6
Recommended Adjustment Screw
AJS100-0.5
Recommended Vernier Micrometer
SM-13
Recommended DM Differential Micrometer
DM-13
Recommended Lockable Micrometer
DM-13L
Recommended TRA Motorized Actuator
TRA12CC or TRA12PPD
Recommended TRB Motorized Actuator
TRB12CC or TRB12PP
