Quick-Mount, Ball Bearing Aluminum Linear Stages
Quick-Mount, Ball Bearing Aluminum Linear Stages
460A Series quick-mount linear stages have external mounting tabs, as apposed to through holes beneath the sliding stage, which allow the fastest mounting regardless of the stage's initial position. The light-weight aluminum construction translates on stainless steel ball bearings and rods with a minimum profile for 0.5 in. linear translation with <150 µrad deviation.
- Stages mounted with side tabs for easiest integration into optical systems
- Low profile fits in tightest configurations
- Ball-bearings provide smooth travel over 0.5 in. with <150 µrad deviation
- Can be configured with manual or motorized actuators and for left-handed use See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

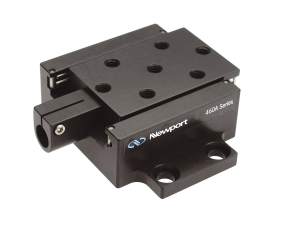

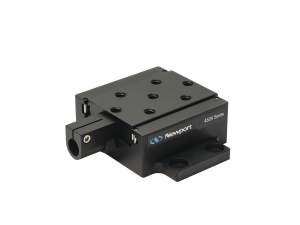

 | 460A-X Quick-Mount, Ball Bearing StagesManual Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | |||||

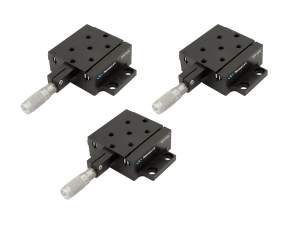

 | 460A-X-MIC Quick-Mount, Ball Bearing StagesLinear Stage Bundle, Three 460A-X Linear Stages and SM-13 Micrometers, 1/4-20 | |||||

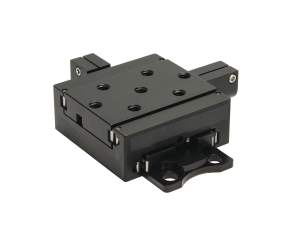

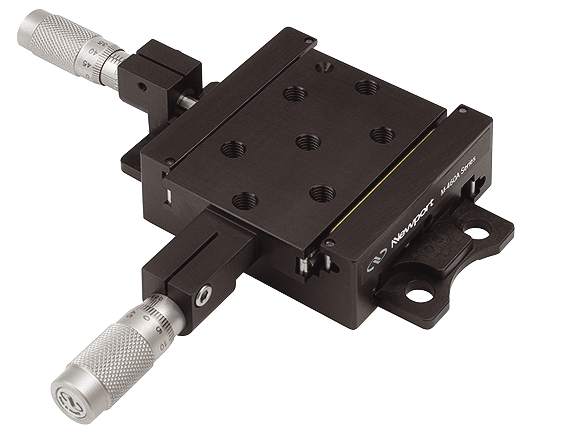

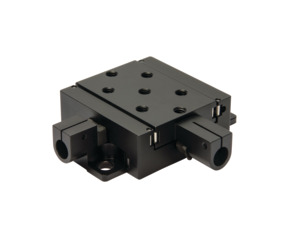

 | 460A-XY Quick-Mount, Ball Bearing StagesXY Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | |||||
 | 460A-XY-LH Quick-Mount, Ball Bearing StagesXY Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20, Left-Handed | |||||

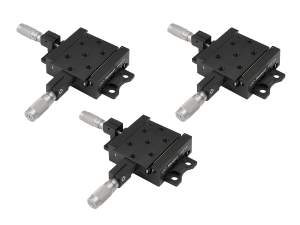

 | 460A-XY-MIC Quick-Mount, Ball Bearing StagesLinear Stage Bundle, Three 460A-XY Linear Stages and SM-13 Micrometers, 1/4-20 | |||||

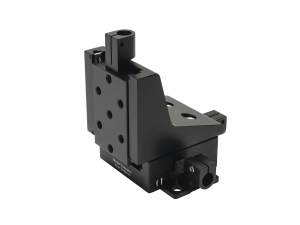

 | 460A-XYZ Quick-Mount, Ball Bearing StagesXYZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | |||||

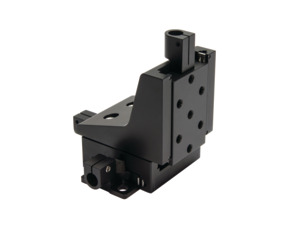

 | 460A-XYZ-LH Quick-Mount, Ball Bearing StagesXYZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20, Left-Handed | |||||

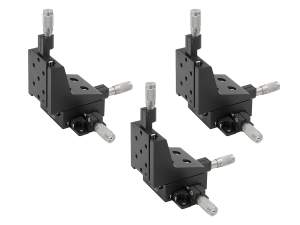

 | 460A-XYZ-MIC Quick-Mount, Ball Bearing StagesLinear Stage Bundle, Three 460A-XYZ Linear Stages & SM-13 Micrometers, 1/4-20 | |||||

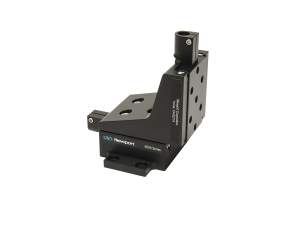

 | 460A-XZ Quick-Mount, Ball Bearing StagesXZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | |||||
 | M-460A-X Quick-Mount, Ball Bearing StagesManual Linear Stage, Quick-Mount, 13 mm Travel, M6 |
Specifications
Recommended Actuators
Features
Stainless Steel Ball-Bearings for Smooth Translation
Fast Side Tab Mounting
Low Profile Design Fits in Tight Spaces

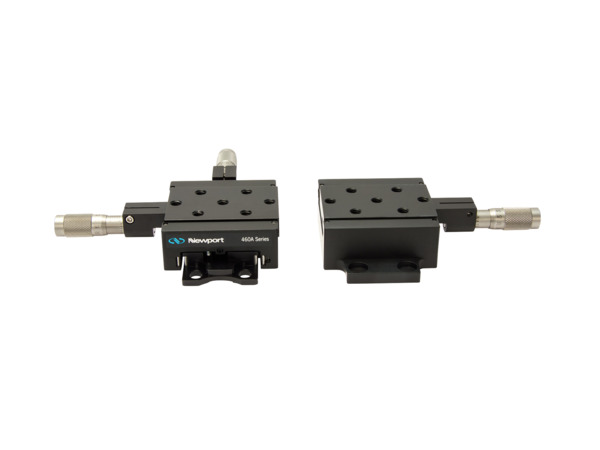

Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.
Versatile Stage Configurations

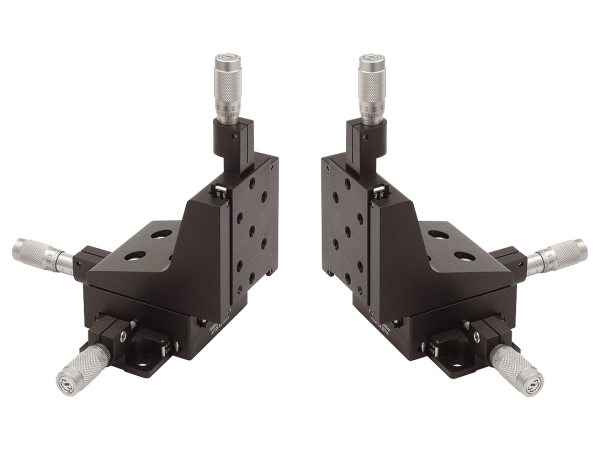

Multiple configurations for these stages are available to match your specific requirements: X, XY, XZ and XYZ. The integrated vertical stage and angle bracket is user removable allowing conversion of an XYZ stage to an XY stage, or conversion of an XZ stage to an X stage. XYZ stage is offered with a choice between left-handed and right-handed.
Cost Saving Stage-and-Micrometer Bundles
We offer a special bundle of three (M-)460A-X, (M-)460A-XY, or (M-)460A-XYZ stages with the recommended SM-13 actuators included. When you purchase the bundle, you get all the SM-13 micrometers for free!
Accessories
Motorized Actuators
Manual Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AJS100-0.5 Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock | |||||
 | AJS127-0.5 Adjustment Screw, 127 TPI, 12.7 mm Travel, Small Knob, Side Lock | |||||
 | DM-13 Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load | |||||
 | DM-13L Lockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb. | |||||
 | HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | |||||
 | SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI |
