Optical Rail, Miniature, 12 in. Length, 8-32 Thread and 1/4-20 CLR
Optical Rail, Miniature, 12 in. Length, 8-32 Thread and 1/4-20 CLR
Model: MRL-12M
Product Series Overview

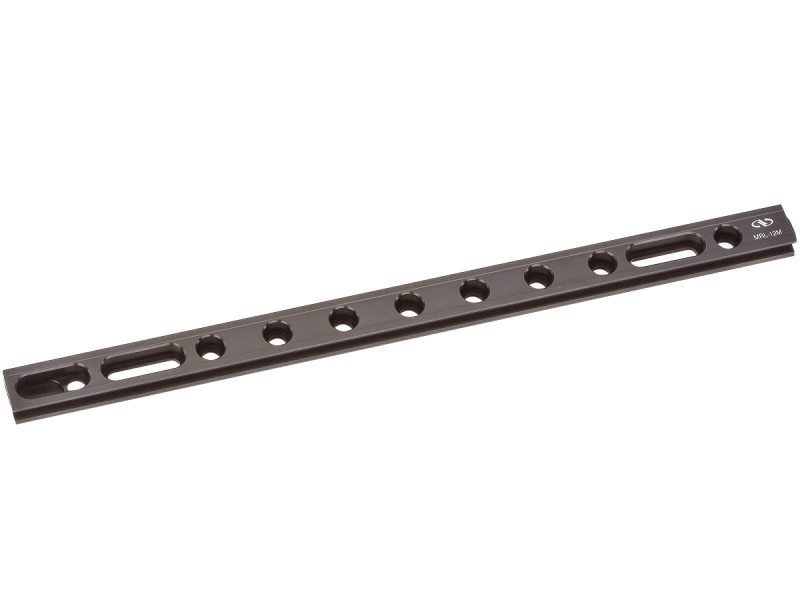

19 mm Miniature Optical Rails & CarriersThe MRL-12M Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 12 inch length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
Drawings And Cad
MRL-12M-ART-S(87.7 kB, PDF)
Other
MRL-12M RoHS Certificate(278.7 kB, PDF) MRL-12M_RoHS2021.pdf(681.5 kB, PDF)
