Optical Rail, Miniature, 1.5 in. Length, 8-32 Thread and 1/4-20 CLR
Optical Rail, Miniature, 1.5 in. Length, 8-32 Thread and 1/4-20 CLR
Model: MRL-1.5
Product Series Overview

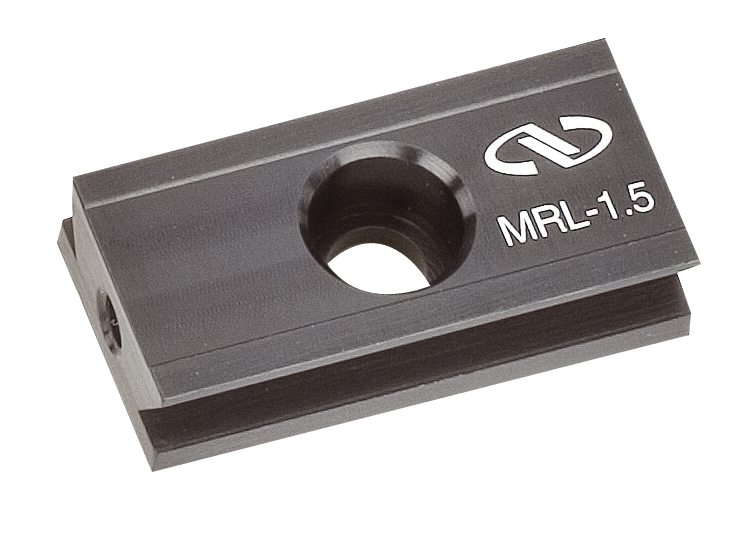

19 mm Miniature Optical Rails & CarriersThe MRL-1.5 Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 1.5 inch length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
3D Product Models
2D Product Drawings
MRL-1.5AR-S(78.7 kB, PDF)
Other
MRL-1.5 RoHS Certificate(278.7 kB, PDF) MRL-1-5_RoHS2021.pdf(681.7 kB, PDF)
