Optical Rail, Miniature, 600 mm, 19.1 mm Width, M4 Thread and M6 CLR

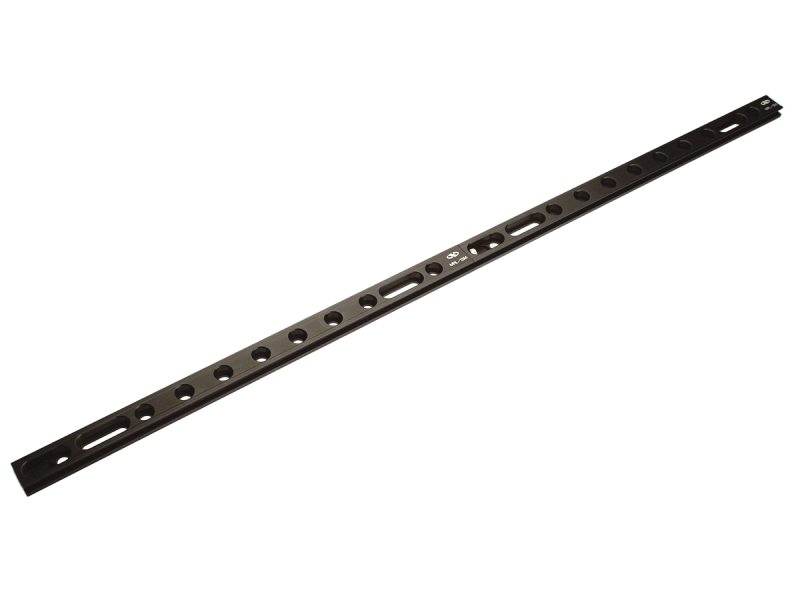

19 mm Miniature Optical Rails & Carriers

The M-MRL-24M Mini Optical Rail provides smooth carrier translation and wobble free clamp down. M6 clearance holes with M4 thread are provided. The M-MRL-24M consists of (2) M-MRL-12M rails pre-assembled for a 600 mm total length. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
600 mm
Height
9.5 mm
Length
600 mm

Width
19.1 mm
Material
Aluminum

Type
Optical Rail
Rail Length
600 mm
Height
9.5 mm
Length
600 mm

Width
19.1 mm
Material
Aluminum

Resources & Downloads

Drawings And Cad

MRL-24M-ART-S(110.1 kB, PDF)

Other

M-MRL-24M RoHS Certificate(278.7 kB, PDF)
M-MRL-24M_RoHS2021.pdf(681.6 kB, PDF)
