Optical Rail, Miniature, 450 mm, 19.1 mm Width, M4 Thread and M6 CLR
Optical Rail, Miniature, 450 mm, 19.1 mm Width, M4 Thread and M6 CLR
Model: M-MRL-18M
Product Series Overview

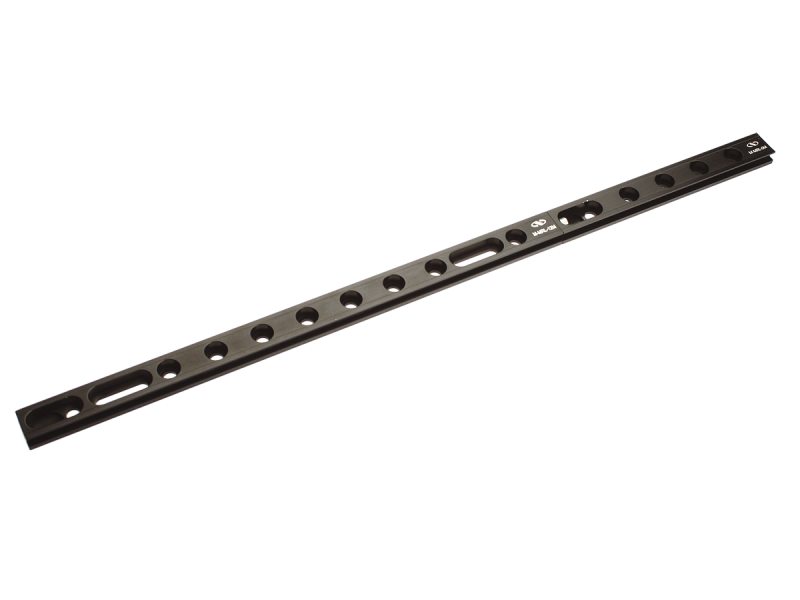

19 mm Miniature Optical Rails & CarriersThe M-MRL-18M Mini Optical Rail provides smooth carrier translation and wobble free clamp down. M6 clearance holes with M4 thread are provided. The M-MRL-18M consists of M-MRL-12M and M-MRL-6M rails pre-assembled for a 450 mm total length. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
Drawings And Cad
MRL-18M-ART-S(112.9 kB, PDF)
Other
M-MRL-18M RoHS Certificate(278.7 kB, PDF) M-MRL-18M_RoHS2021.pdf(681.7 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MCCOptical Rail Carrier, Miniature, 8-32 (M4) CLR, MRL Series | |||||
 | MCFOptical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series | |||||
 | SS-2Rail Spacer Set, 1/4-20 Thread, Qty 5 | |||||
 | MCDOptical Rail Carrier, Dovetail, Miniature Rail, MRL Series | |||||
| M-SS-2Rail Spacer Set, M6 Thread, Qty 5 |
