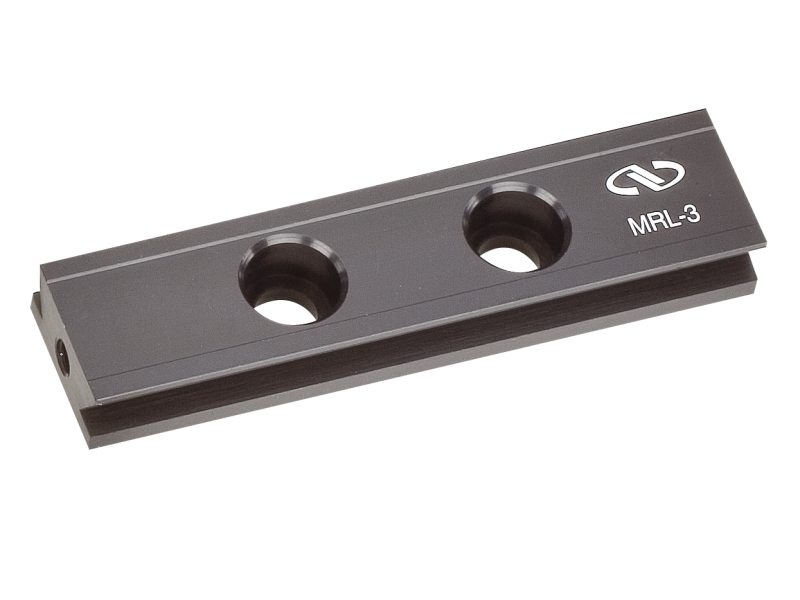

Optical Rail, Miniature, 3 in. Length, 8-32 Thread and 1/4-20 CLR

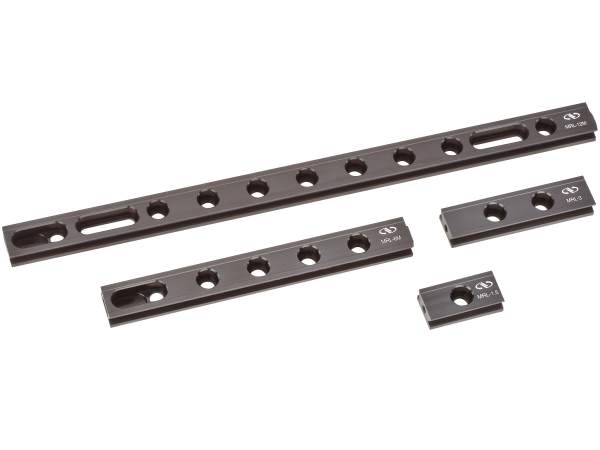

19 mm Miniature Optical Rails & Carriers

The MRL-3 Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 3 inch length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
76.2 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Type
Optical Rail
Rail Length
76.2 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

MRL-3ATR-25perc-S(78.1 kB, PDF)

Other

MRL-3 RoHS Certificate(278.4 kB, PDF)
MRL-3_RoHS2021.pdf(681 kB, PDF)
