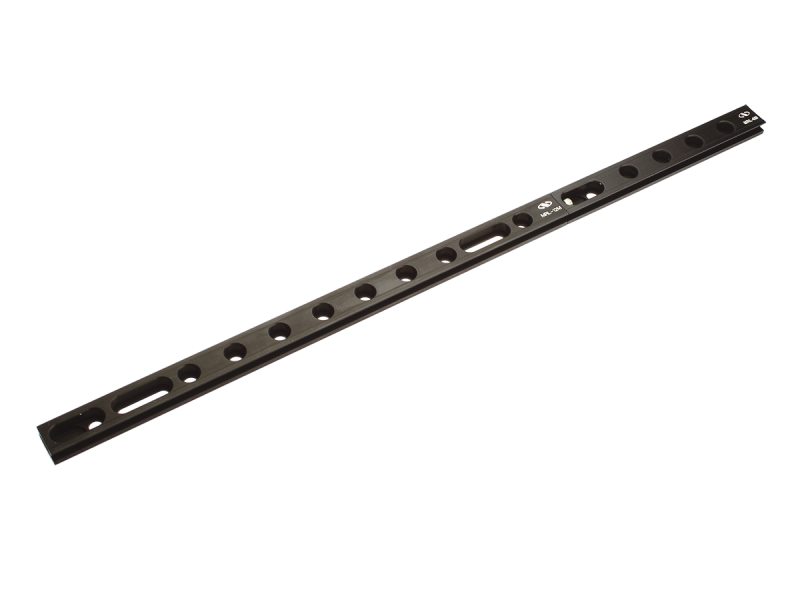

Optical Rail, Miniature, 18 in. Length, 8-32 Thread and 1/4-20 CLR

19 mm Miniature Optical Rails & Carriers

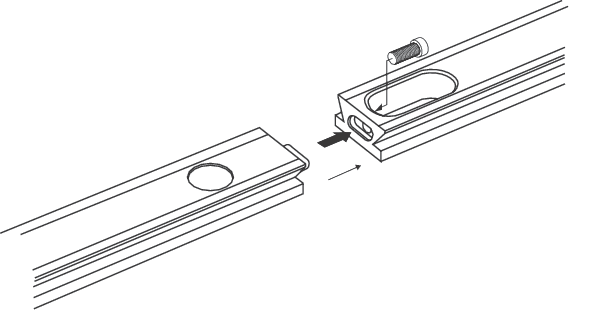

The MRL-18M Mini Optical Rail provides smooth carrier translation and wobble free clamp down. M6 clearance holes with M4 thread are provided. The MRL-18M consists of MRL-12M and MRL-6M rails pre-assembled for an 18 inch total length. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
457.2 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Type
Optical Rail
Rail Length
457.2 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

MRL-18M-ART-S(112.9 kB, PDF)

Other

MRL-18M RoHS Certificate(278.7 kB, PDF)
MRL-18M_RoHS2021.pdf(681.7 kB, PDF)
