Optical Rail, Miniature, 24 in. Length, 8-32 Thread and 1/4-20 CLR
Optical Rail, Miniature, 24 in. Length, 8-32 Thread and 1/4-20 CLR
Model: MRL-24M
Product Series Overview

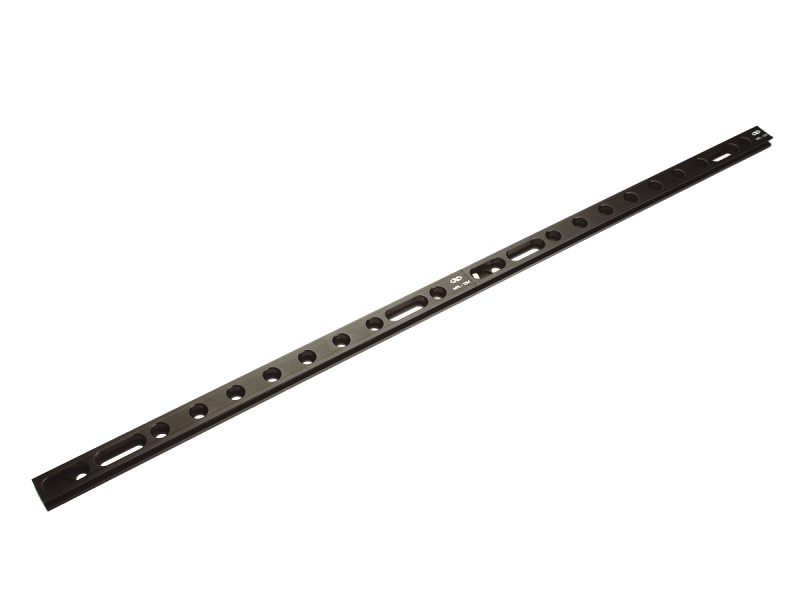

19 mm Miniature Optical Rails & CarriersThe MRL-24M Mini Optical Rail provides smooth carrier translation and wobble free clamp down. M6 clearance holes with M4 thread are provided. The MRL-24M consists of (2) MRL-12M rails pre-assembled for a 24 inch total length. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
Drawings And Cad
MRL-24M-ART-S(110.1 kB, PDF)
Other
MRL-24M RoHS Certificate(278.7 kB, PDF) MRL-24M_RoHS2021.pdf(681.6 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-SS-2Rail Spacer Set, M6 Thread, Qty 5 | |||||
 | MCDOptical Rail Carrier, Dovetail, Miniature Rail, MRL Series | |||||
 | MCFOptical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series | |||||
| SS-2Rail Spacer Set, 1/4-20 Thread, Qty 5 | |||||
 | MCCOptical Rail Carrier, Miniature, 8-32 (M4) CLR, MRL Series |
