Access Plate, SMA Beam, Aegis Qube

Adapter Plates, Aegis Qube

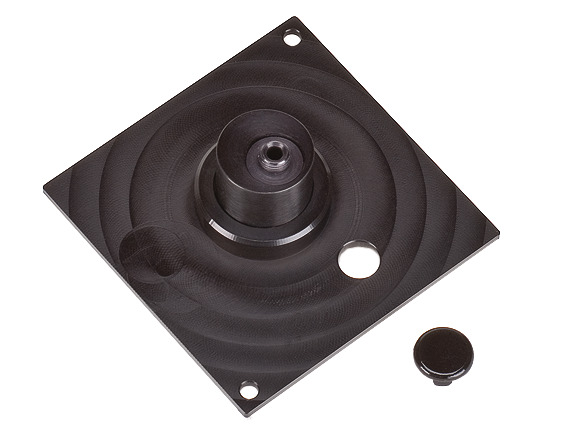

The Q-XE-DI-2 provides access for connectorized optical fibers with SMA termination. The SMA termination is removable from the Q-XE-DI-2 interface plate and can be replaced with model 77675 which provides ST termination.

Specifications

Technical Specs

Type
SMA Beam Access Plate

Type
SMA Beam Access Plate

Resources & Downloads

Drawings And Cad

Aegis PICK OFF INTERFACE(359.8 kB, PDF)

Other

Q-XE-DI-2 RoHS Certificate(277.8 kB, PDF)
Q-XE-DI-2_RoHS2021.pdf(681.6 kB, PDF)
