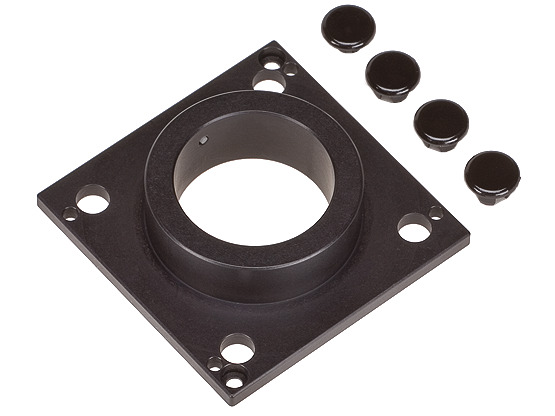

Adaptor Plate, Beam Tube, Aegis Qube

The Q-XE-TA-1 beam tube adaptor plate, which can attach to any of the 5 open faces of the cube, allows any of the Q-BT series beam tubes to be interfaced to the cube. The fit between the Q-XE-TA-1 beam tube adaptor and the Q-BT beam tubes are designed to be loose to allow additional positioning flexibility.

Specifications

Technical Specs

Type
Beam Tube Adaptor Plate

Type
Beam Tube Adaptor Plate

Resources & Downloads

Drawings And Cad

Aegis COVER TUBE MOUNT(340.9 kB, PDF)

Other

Q-XE-TA-1 RoHS Certificate(277.1 kB, PDF)
Q-XE-TA-1_RoHS2021.pdf(679.9 kB, PDF)
