Aegis Qube™ Access, Adapter, and Cover Plates

We offer a wide variety of access, adapter, and cover plates for customizing the Q-OC-1 cubic enclosure.

Adapter plates for interfacing Aegis Qubes
Cover plates for unused cube faces
Post adapters plates for mounting Aegis Qubes

Description	Compatibility	Type	Price
Q-CC-1 Adapter Plates, Aegis Qube Connector Peg, Connects Two Cubes Face to Face	UNIVERSAL	Cube Connector Peg	$15.60
Q-CP-1 Adapter Plates, Aegis Qube Post Mount Adaptor, 8-32 CLR, Aegis Qube	UNIVERSAL	Cube Post Adaptor	$43
Q-XE-CP-1 Adapter Plates, Aegis Qube Cube Cover Plate, with Access Holes	UNIVERSAL	Cube Cover Plate, with Access Holes	$31
Q-XE-CP-B Adapter Plates, Aegis Qube Cube Cover Plate, No Access Holes	UNIVERSAL	Cube Cover Plate, No Access Holes	$24
Q-XE-CP-W Adapter Plates, Aegis Qube Cube Cover Plate, with Sliding Window	UNIVERSAL	Cube Cover Plate, with Sliding Window	$34
Q-XE-DI-1 Adapter Plates, Aegis Qube Access Plate, Probe Beam, Aegis Qube	UNIVERSAL	Probe Beam Access Plate	$102
Q-XE-DI-2 Adapter Plates, Aegis Qube Access Plate, SMA Beam, Aegis Qube	UNIVERSAL	SMA Beam Access Plate	$102
Q-XE-LT10-A Adapter Plates, Aegis Qube Adaptor Plate, LT10 Lens Tube, Aegis Qube	UNIVERSAL	Adaptor Plate, LT10 Lens Tube	$27
Q-XE-TA-1 Adapter Plates, Aegis Qube Adaptor Plate, Beam Tube, Aegis Qube	UNIVERSAL	Beam Tube Adaptor Plate	$43
Q-XE-TA-R Adapter Plates, Aegis Qube Adaptor Plate, Beam Tube, Light Tight	UNIVERSAL	Beam Tube Adaptor Plate, Light Tight	$43

Show All

Features

Cube Connector Peg

The Q-CC-1 Cube Connector Pegs are used to mount two cubes together, face-to-face.

Cube Cover Plate

Three types of cover plates are available to cover any open face of the Q-OC-1 cube: blank Q-XE-CP-B, Q-XE-CP-1 with access holes, and Q-XE-CP-W with sliding window.

Beam Tube Adaptor Plate

The Q-XE-TA-1 and Q-XE-TA-R adaptors allow Q-BT series beam tubes to be attached to any of the 5 open faces of the cube. Q-XE-TA-R is designed to be light tight while Q-XE-TA-1 provides positioning flexibility with a slightly larger aperture.

Lens Tube Adaptor Plate

The Q-XE-LT10-A allows LT10 series lens tube to be attached to any of the 5 open faces of the cube.

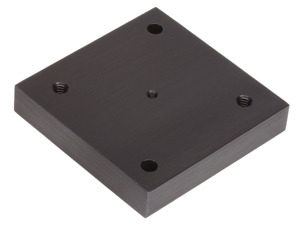

Post Mounting Adaptor Plate

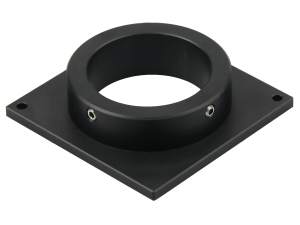

The Q-XE-RA-1 allows 1.5 in. optical pedestal to be used with the Aegis Qube™ System. Q-CP-1 features 8-32 counterbored hole in the center and allows optical post mounting of the cube via any one of its 5 open faces.
