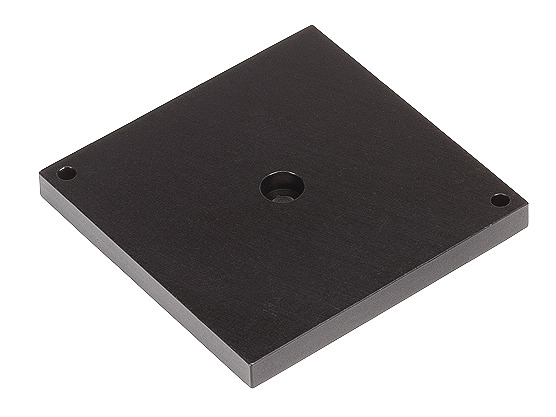

Post Mount Adaptor, 8-32 CLR, Aegis Qube

Adapter Plates, Aegis Qube

The Q-CP-1 allows optional post mounting of the cube to any one of its 5 open faces. This adaptor can be used to reorient the cube for vertical beam routing or as needed for other types of mounting configurations.

Specifications

Technical Specs

Type
Cube Post Adaptor

Type
Cube Post Adaptor

Resources & Downloads

Drawings And Cad

Q-CP-1-291(446.4 kB, PDF)

Other

Q-CP-1 RoHS Certificate(278.3 kB, PDF)
Q-CP-1_RoHS2021.pdf(681 kB, PDF)
