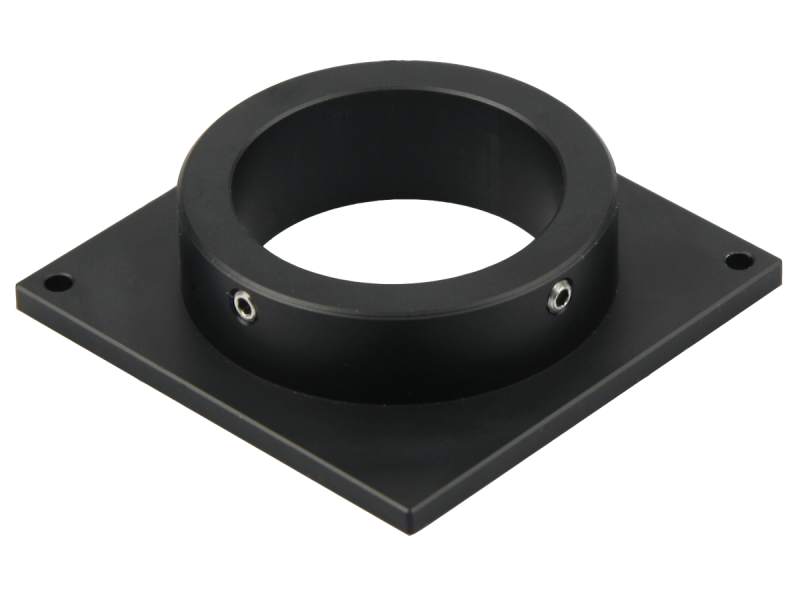

1.5 in. Rod Adaptor, SR Series, Aegis Qube

TheQ-XE-RA-1 Aegis Qube™ Adaptor allows SR series 1.5 in. optical support rods to be used with the Aegis Qube™ System. This rod adaptor is made to attach to the top of the Q-OC-1 cubic enclosure and will provide super stable direct mounting of a compatible mirror mount to the rod within the cube. The Q-XE-RA-1 is made to be used with the SR-ADP (M-SR-ADP) when mounting Suprema^® mirror mounts with the Aegis Qube System

Specifications

Technical Specs

Type
Aegis Cube Adaptor

Type
Aegis Cube Adaptor

Resources & Downloads

3D Product Models

2D Product Drawings

Q-XE-RA-1 DGW(85.5 kB, PDF)

Other

Q-XE-RA-1 RoHS Certificate(277.7 kB, PDF)
Q-XE-RA-1_RoHS2021.pdf(681 kB, PDF)
