Sorry, this product is no longer offered for sale. It was discontinued on Oct 8, 2018

Vertical Stage, 9 mm Travel, DC Drive, 300 N Load, 1/4-20

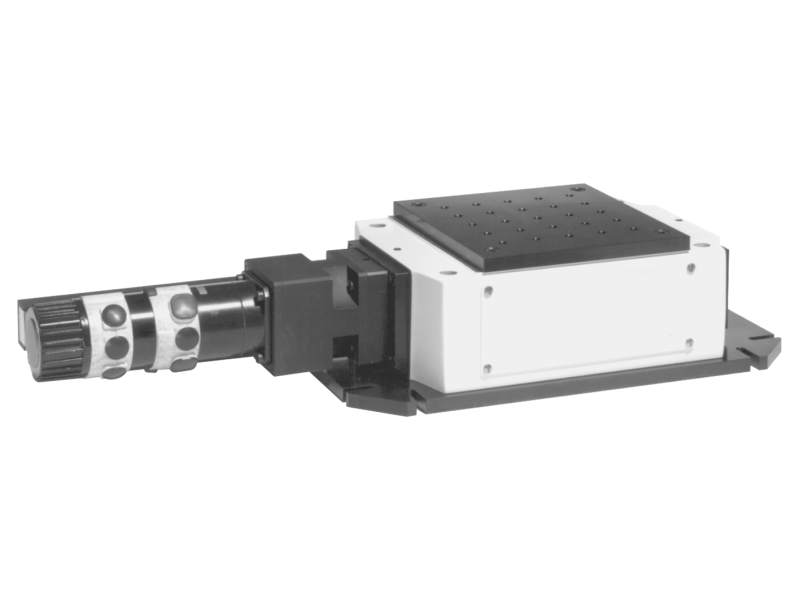

The UZM160CC.05 Vertical Stage is specifically designed for high load applications. It provides 9 mm vertical travel and can bear loads up to 300 N. When used for multi-axis assemblies, for instance in combination with our MTM series linear stages, it is recommended to mount the linear stages on top of the UZM160. The UZM160CC.05 comes with a DC-motor drive. In order to ensure consistent operation under high loads, all UZM160 versions are equipped with a 2,000 counts/revolution rotary encoder.

Specifications

Technical Specs

Travel Range
9 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
1 mm/s
Centered Load Capacity
300 N
Accuracy, Typical
±4.0 µm
Bi-directional Repeatability, Typical
±2.75 µm
Uni-directional Repeatability, Typical
±0.25 µm
Drive Screw Pitch
4 mm
Encoder Resolution
0.05 µm
Limit Switches
Mechanical
Origin
Optical, centered

Connectors
DB25 Male
Pitch, Typical
±50 µrad
Compliance in Pitch
0.65 µrad/Nm
Compliance in Roll
0.13 µrad/Nm
Yaw, Typical
±100 µrad
Cable Length
3 m
Thread Type
1/4-20
Weight
22 kg
MTBF
20,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Travel Range
9 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
1 mm/s
Centered Load Capacity
300 N
Accuracy, Typical
±4.0 µm
Bi-directional Repeatability, Typical
±2.75 µm
Uni-directional Repeatability, Typical
±0.25 µm
Drive Screw Pitch
4 mm
Encoder Resolution
0.05 µm
Limit Switches
Mechanical
Origin
Optical, centered

Connectors
DB25 Male
Pitch, Typical
±50 µrad
Compliance in Pitch
0.65 µrad/Nm
Compliance in Roll
0.13 µrad/Nm
Yaw, Typical
±100 µrad
Cable Length
3 m
Thread Type
1/4-20
Weight
22 kg
MTBF
20,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Resources & Downloads

3D Product Models

2D Product Drawings

UZM160 Interfaces(381.3 kB, PDF)
UZM160CC(422.3 kB, PDF)
UZ Data Sheet.pdf(2.2 MB, PDF)
UZM Vertical Linear Stages User's Manual(1.4 MB, PDF)
