Wafer Positioning Stage, Integrated Vertical and DC Rotation Stage
Wafer Positioning Stage, Integrated Vertical and DC Rotation Stage
Model: ZVR-PC
Product Series Overview

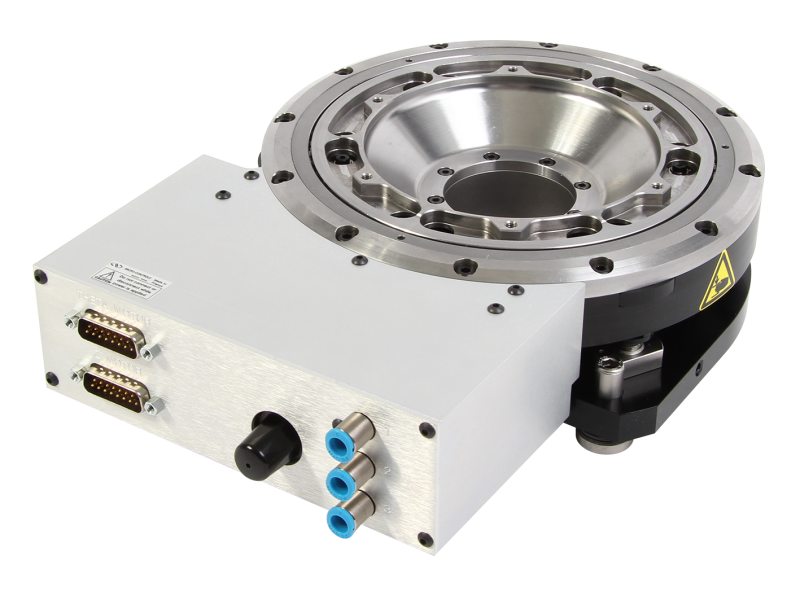

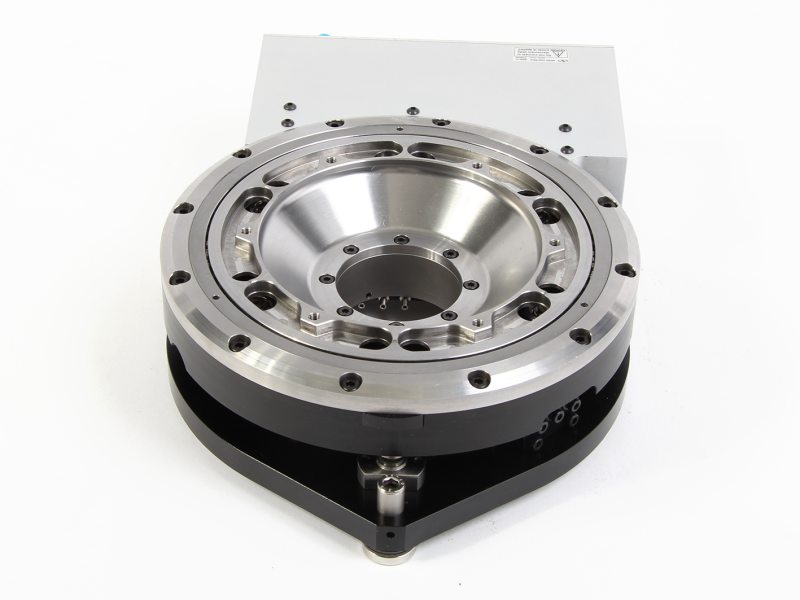

ZVR Integrated Vertical and Rotation StagesNewport’s new ZVR-PC is an integrated Z-vertical and DC Servo Theta-rotation positioning stage designed to precisely elevate and rotate 200 mm and/or 300 mm diameter wafer chucks. The ZVR-PC offers precise 10 mm vertical and continuous 360 degree angular travel in a very low profile design. Utilizing a DC Servo motor, and integrated rotary encoder in the theta stage, the ZVR-PC is capable of high speed, high performance positioning. With integrated vacuum and electrical lines accessed at a single point, and a three point mounting interface, the ZVR-PC offers convenient, stable, and high performance capability for applications such as wafer positioning. Please refer to the datasheet for the complete specifications on the rotational and vertical motion capabilities of the ZVR-PC.
Resources & Downloads
3D Product Models
2D Product Drawings
ZVR-PC.pdf(586.6 kB, PDF) ZVR Data Sheet(1.6 MB, PDF) ZVR User's Manual.pdf(2.6 MB, PDF)
Related Products
Compatible Controllers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| ESP302 3-Axis DC and Stepper Motion Controller | ||||||
| SMC100 Single Axis Motion Controller 3 | ||||||
| XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | ||||||
| XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 |
- Requires <quickview data-class="quickview-link" data-code="XPS-DRV11" data-type="product">XPS-DRV11</quickview> driver module
- Requires <quickview data-class="quickview-link" data-code="XPS-DRV11" data-type="product">XPS-DRV11</quickview> driver module
- 0.25 µm MIM for Z-axis when used with SMC100PP controller
