Anti-Backlash Goniometric Rotation Stages
Anti-Backlash Goniometric Rotation Stages

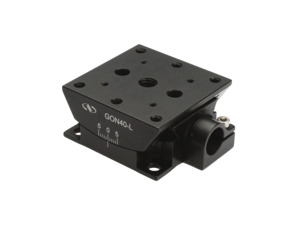

Goniometric stages rotate an object about an axis, which is unobstructed by the stage itself, located over the center of the top platform. Like-sized GON Series stages can be stacked. In a stacked configuration, the axes of rotation will intersect with each other for orthogonal motion about a common point in space.
- Stackable with common rotation point for two orthogonal axes
- Up to ±10° of rotation with secure locking mechanism
- Interchangeable manual or motorized drives See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

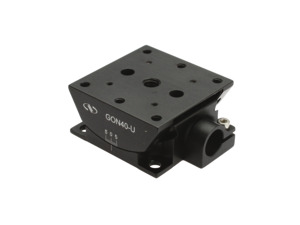

 | GON40-L Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Lower, ±5°, 1.57 x 1.57 x 0.79 in., 6-32 & 1/4-20 | |||||

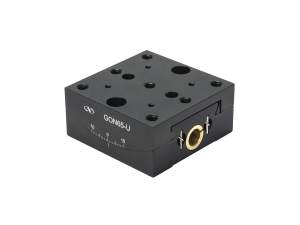

 | GON40-U Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Upper, ±5°, 1.57 x 1.57 x 0.79 in., 6-32 & 1/4-20 | |||||

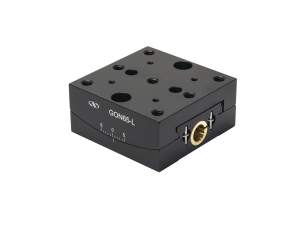

 | GON65-L Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Lower, ±5°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20 | |||||
 | GON65-U Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Upper, ±10°, 2.56 x 2.56 x 1.18 in., 6-32 & 1/4-20 | |||||

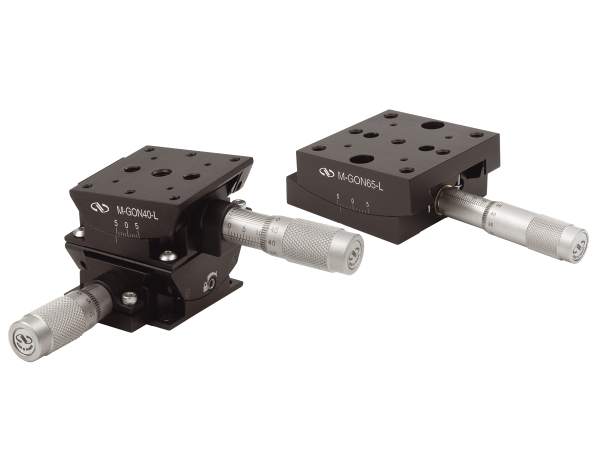

| M-GON40-L Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Lower, ±5°, 40 x 40 x 20 mm, M3 & M6 | |||||
| M-GON40-U Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Upper, ±5°, 40 x 40 x 20 mm, M3 & M6 | |||||
| M-GON65-L Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Lower, ±5°, 65 x 65 x 30 mm, M3 & M6 | |||||
| M-GON65-U Anti-Backlash Goniometric Rotation StagesGoniometric Stage, Upper, ±10°, 65 x 65 x 30 mm, M3 & M6 |
Specifications
Features
Spherical Positioning
Like-sized GON Series stages can be stacked. In a stacked configuration, the axes of rotation will intersect with each other allowing for rotation that is not restricted to a plane but is truly spherical. The motion on both goniometers can be securely locked using a hex screw on the side of the goniometer.
Interchangeable Actuators

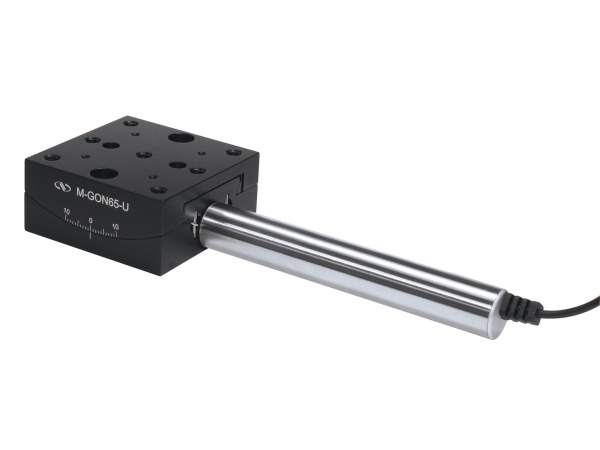

GON Series Goniometric Rotation Stages utilize an actuator-driven rather than a worm screw-driven design to allow actuator interchangeability. This allows a variety of actuators such as adjustment screws, differential micrometers, or motorized actuators to be used with these stages. Shown is a TRA25 actuator motorizing a GON65-U goniometer.
Compatible With Like Sized Stages

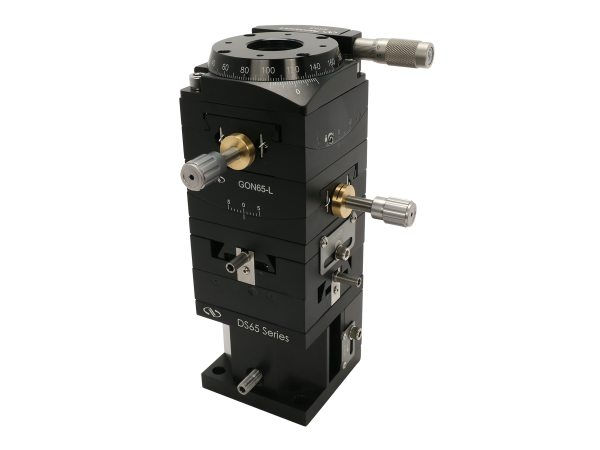

The GON Series Goniometric Stages are compatible with RS Series Rotation Stages and DS Series Linear Stages of matching size (for example, GON40 with DS40, GON65 with DS65). They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. A six-axis manual positioning system is shown using matched 65 x 65 mm stages.
Accessories
13 mm Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AJS100-0.5 Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock | |||||

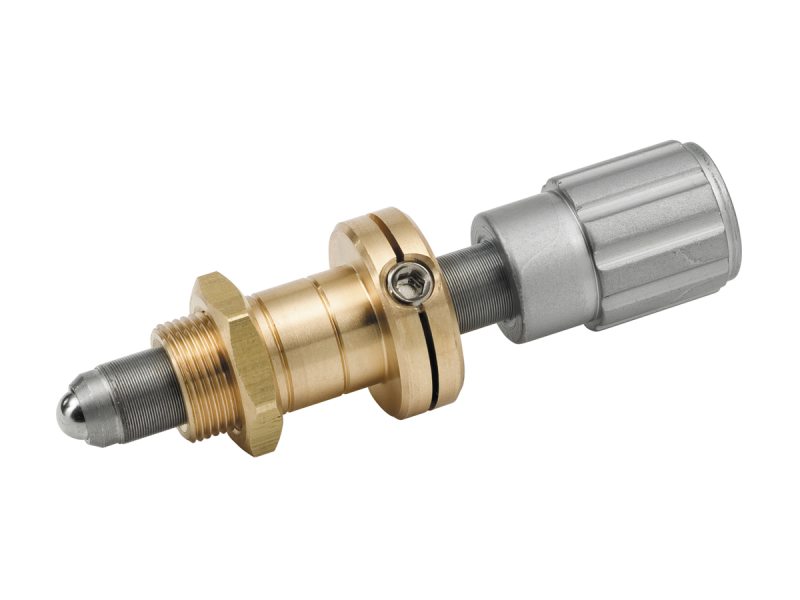

 | AJS127-0.5 Adjustment Screw, 127 TPI, 12.7 mm Travel, Small Knob, Side Lock | |||||

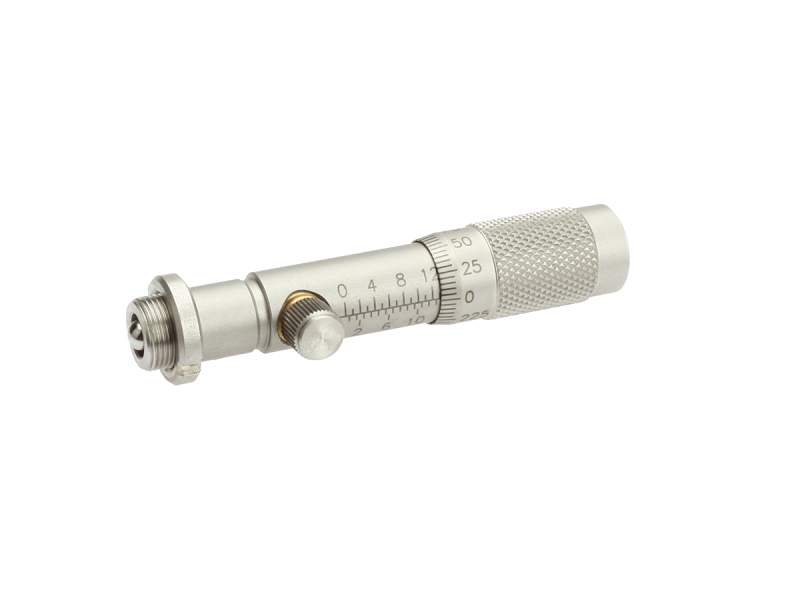

 | HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | |||||

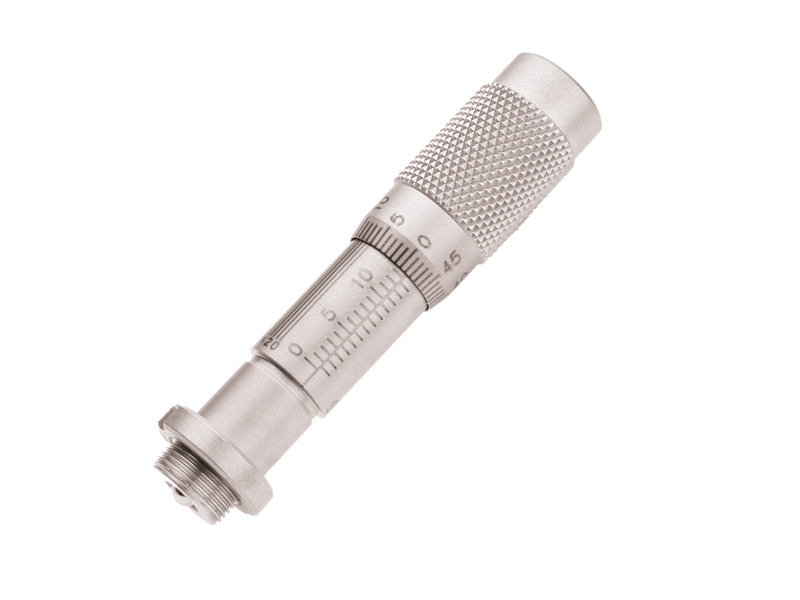

 | SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | |||||

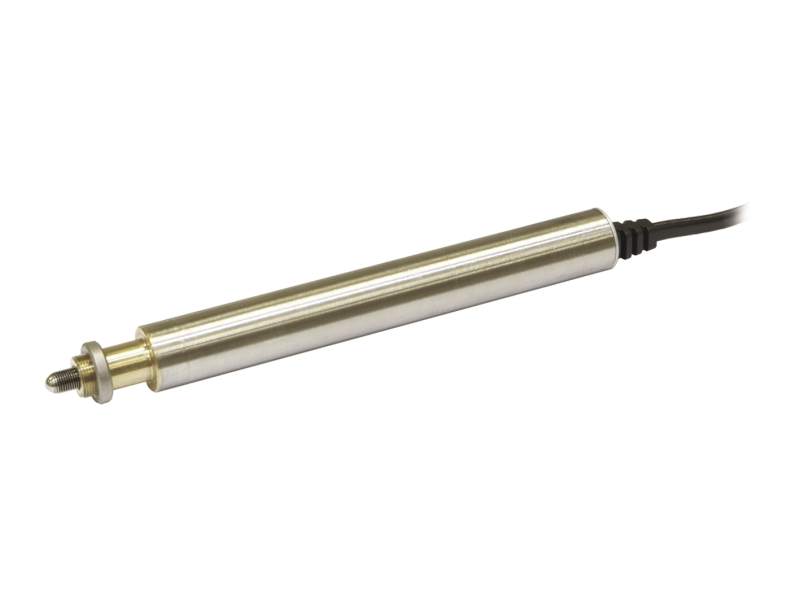

 | TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor | |||||
| TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub |
25 mm Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

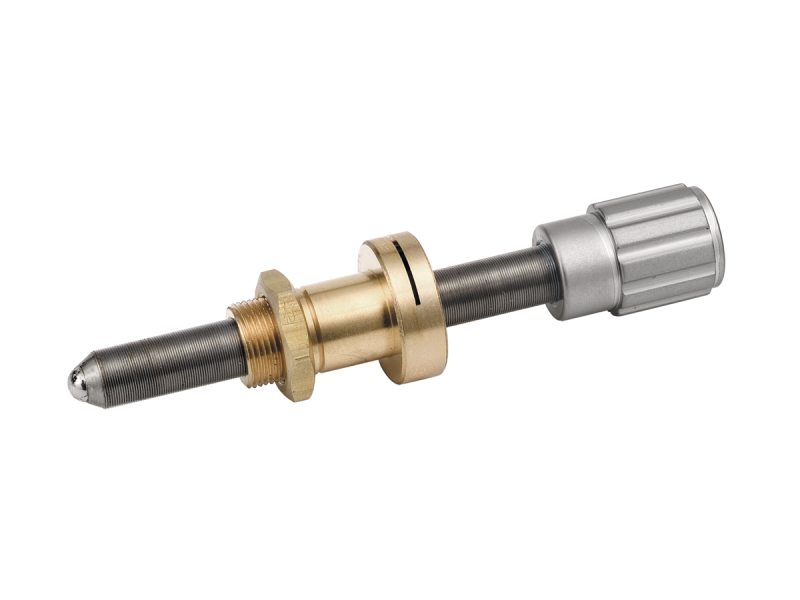

 | AJS100-1 Adjustment Screw, 100 TPI, 25.4 mm Travel, Small Knob, Side Lock | |||||

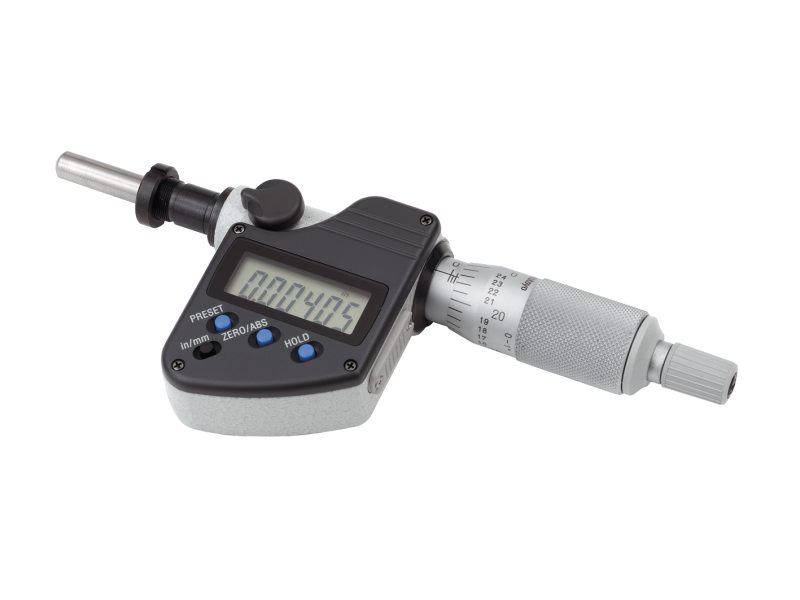

 | DMH-1 Digital Micrometer, 25.4 mm Travel, ±2 µm Accuracy | |||||

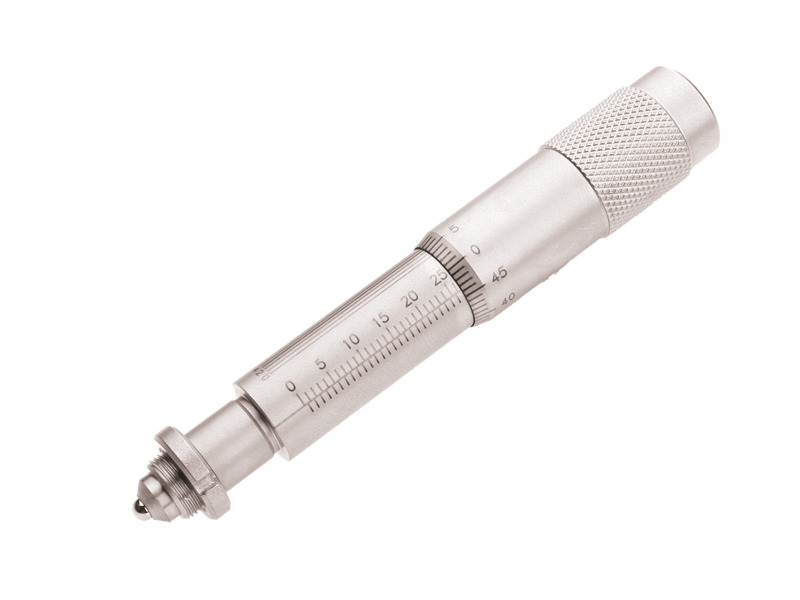

 | SM-25 Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI | |||||

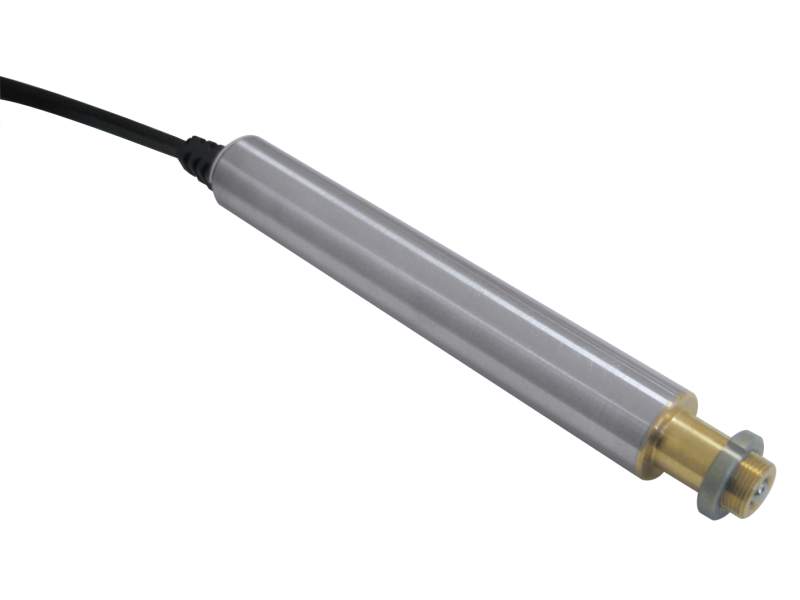

 | TRA25CC Motorized Actuator, Miniature, 25 mm Travel, DC Servo Motor | |||||
| TRA25PPD Motorized Actuator, Miniature, 25mm Travel, Stepper, 25-pin D-Sub |
