450A Series Compact Ball Bearing Linear Stage
450A Series Compact Ball Bearing Linear Stage

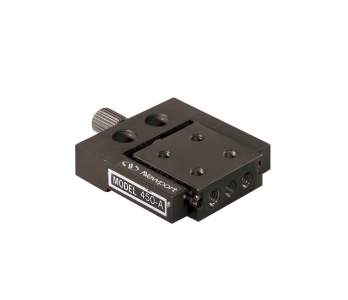

Model 450A Compact Ball Bearing Linear Stage incorporates ball bearing construction in a miniature package for applications where space is at a premium. The 1 in. square translating platform is supported within the frame by balls riding between opposing pairs of precision-ground, hardened rods. It is preloaded to remove wobble and play and is spring loaded against an 80-pitch lead screw for backlash-free travel.
- Compact, stackable design
- Components mount on either side of the stage
- All steel construction
- Ultra-fine, 80-pitch drive screw See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

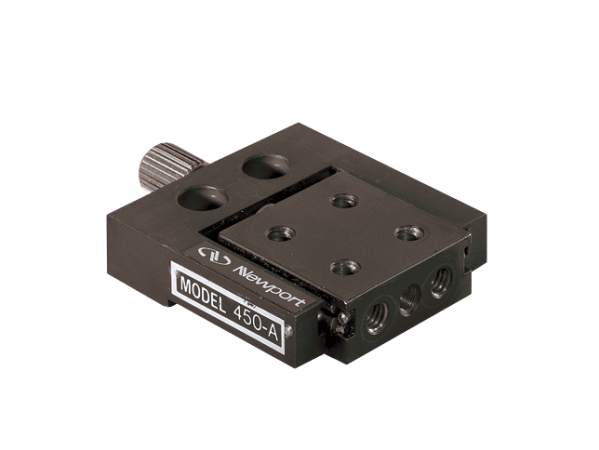

 | 450A 450A Series Compact Ball Bearing StageLinear Stage, Compact, Ball Bearing, 0.25 in. Travel, 6 lb. Load, 8-32 |
Features
Multi-Axis Configurations
Multi-axis translation systems can be assembled by attaching the frame of one stage directly to the platform of another. Adaptor Plate 450P provides a set of tapped and clearance mounting holes to accommodate post holders and other components, and to provide attachment to optical tables and breadboards.
Slightly Elevated Stage
The drive knob extends out a distance from the frame, independent of the platform travel, to minimize space requirements. To ensure clearance for overhanging components, the stage is elevated slightly above the frame.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

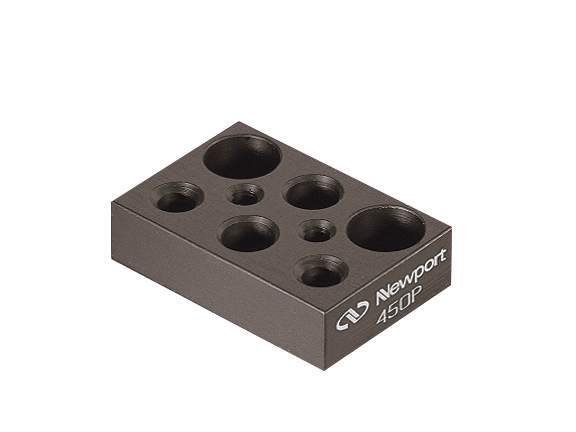

 | 450P Adaptor Plate, 450A Linear Stage |
