A-LINE 1 inch Lens Alignment Kits

The OMK31 A-LINE 1 inch Lens Alignment Kit provides a cost-effective collection of 45 of Newport’s latest 1 inch optics mounts, tools, and mounting accessories. This kit offers a variety of fixed lens mounts, kinematic mounts, mirror mounts and mounting equipment allowing a wide range of setup options and easy installation. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.

Collection of 45 fixed lens mounts, kinematic mounts and mounting equipment
Includes Pre-labeled cabinet for easy setup, organization & part replacement
Discounted compared to individual component purchases

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-OMK31 A-LINE 1 inch Lens Alignment KitsA-LINE Lens Alignment Kit, 25.4 mm, 45 Components, Metric Threads	METRIC			$1,947
		OMK31 A-LINE 1 inch Lens Alignment KitsA-LINE Lens Alignment Kit, 1 inch, 45 Components, Imperial Threads	IMPERIAL			$1,947

Kit Components

OMK31	M-OMK31	Description	Quantity
LH-1A	M-LH-1A	Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 (M4) Thread, A-LINE	10
LH-1T	M-LH-1T	Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 (M4), A-LINE	2
LH-1DB	M-LH-1DB	Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 (M4) Thread, A-LINE	2
LH-1N	LH-1N	Lens Mount, Insertable, 25.4 mm Diameter, A-LINE	1
LH-1XY	LH-1XY	XY Lens Mount, Insertable, 25.4 mm, A-LINE	2
LH-1PY	M-LH-1PY	Polarizer Rotation Mount, 25.4 mm, 8-32 (M4) Thread, A-LINE	1
LH-1PR	M-LH-1PR	Polarizer Rotation Mount, 25.4 mm, 8-32 (M4) Thread, A-LINE	2
LH-1PM	LH-1PM	Fixed Cube Mount, 1.0 in. (25.4 mm), 8-32 Thread, A-LINE	2
LH-1PY-45	LH-1PY-45	45 Degree Mirror Mount, Adjustable, 25.4 mm, A-LINE	1
LH-RMS	M-LH-RMS	Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32 (M4)	2
LH-CMT	M-LH-CMT	Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 (M4) Thread, A-LINE	1
LH-1TZ-A	LH-1TZ-A	Fine Focusing Lens Mount, 1.0 in., Screw Drive, 8-32 and M4, A-LINE	1
LT10-WR	LT10-WR	Spanner Wrench, 1 inch LT Series Lens Tubes	1
LT10-RR	LT10-RR	Retaining Ring, 22.9 mm ID, 1.035-40 Thread	5
LH1-ATP	M-LH1-ATP	Alignment Target, Post Mount, 8-32, A-Line	2
LH-GR-4	LH-GR-4	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	4
LH-GR-8	LH-GR-8	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE	4
LH-GR-10	LH-GR-10	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE	2

Features

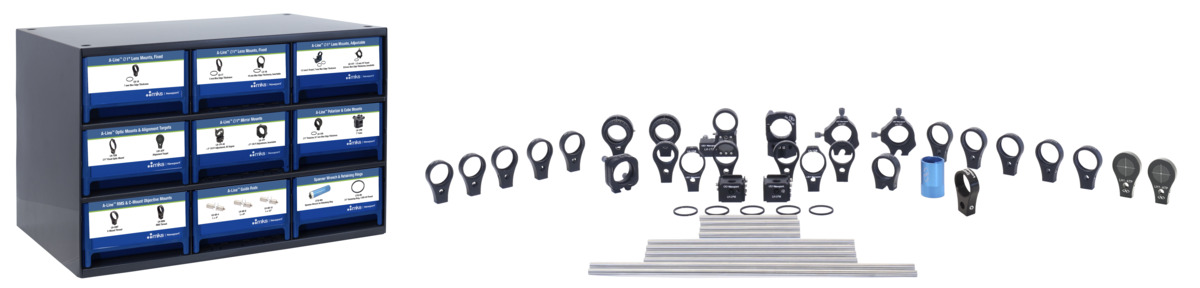

Includes Free 9-Drawer Cabinet

This component kit includes a free 9-drawer cabinet with custom pre-printed drawer labels for organizing and storing your kit's components. The labels visually identify the parts in each drawer for quick and easy storage and re-ordering. The 17 x 11 x 11 inch cabinet features a rigid and durable welded steel frame. It can be wall mounted to keep work surfaces clear or stacked to minimize the footprint.
