1 inch Optical Mounts and Accessories Kits

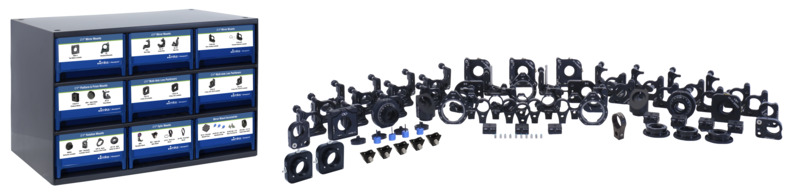

The OMK18 Optical Mounts and Accessories Kit provides a cost-effective collection of 83 of Newport’s latest 1 inch diameter mirror mounts, lens positioners, bases and optics holders with imperial threads. This kit offers a variety of mirror mounts, optics mounts and other essential optics accessories allowing a wide range of setup options and easy installation. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.

Collection of 83 mirror mounts, lens positioners, bases and optics holders
Includes Pre-labeled cabinet for easy setup, organization & part replacement
Discounted compared to individual component purchases

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Type	Thread Type	Avail.	Price
		M-OMK18 1 in. Optical Mounts and Accessories Kits Optical Mounts and Accessories Kit, 25.4 mm, 83 Components, Metric	METRIC		Component Set	Metric		$5,850
		OMK18 1 in. Optical Mounts and Accessories Kits Optical Mounts and Accessories Kit, 1.0 in., 83 Components, Imperial	IMPERIAL		Component Set	English		$5,850

Kit Components

OMK18	M-OMK18	描述	数量
M1	M1	Mirror Mount, Lab Standard, 1.0 in. (25.4 mm) Diameter, 2 Knob Actuators	8
UPA1	UPA1	Mirror Adapter, Platform Mount, (1.0 in.) 25.4 mm Diameter	4
P100-P-H	M-P100-P-H	Platform Optical Mount, Performa, 1.0 in. (25.4 mm), 2 Allen-Keys, 8-32 (M4)	4
M1Q	M1Q	Mirror Mount, Lab Standard, Clear Edge, 1.0 in. (25.4 mm), 2 Knob Actuators	4
M1-CP	M1-CP	Mirror Mount, CenterPoint, Lab Standard, 1.0 in. (25.4 mm), 2 Knob Actuators	4
M1-1D	M1-1D	Mirror Mount, Lab Standard, EdgeGrip, 1.0 in. (25.4 mm), 2 Knob Actuators	4
P100-AI38	P100-AI38	Mirror Mount, PERFORMA-i, 1.0 in. (25.4 mm), 80 TPI, 3 Locking Allen-Keys	4
P100-At38	P100-At38	Mirror Mount, Thin Optic, 1.0 in. (25.4 mm), 80 TPI, 3 Locking Allen-Keys	4
LP5X-1H	LP5X-1H	Lens Positioner, 1.0 in. (25.4 mm), XYZθXθY, 100 TPI, 8-32 (M4) CLR	2
LP6X-1H	LP6X-1H	Lens Positioner, 1.0 in. (25.4 mm), XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR	1
HX.078-2M-PK	HX.078-2M-PK	Hex Adjustment Knob, 5/64 in. (2.0 mm)	4
BK-1A	M-BK-1A	Kinematic Base, Magnetic, 1 in. (25.4 mm) Square，2-56 & 8-32（M2 & M4）	3
SK-NYT-832	SK-NYT-832	Nylon Tip Screw Set, 8-32 x 0.25 inch, Qty 10	1
LH-1DB	M-LH-1DB	Mirror Mount, Fixed, 1.0 in. (25.4 mm) Diameter, 8-32 (M4) Thread, A-LINE	5
LH-1A	M-LH-1A	Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 (M4) Thread, A-LINE	5
UPA-45D1	UPA-45D1	45 Degree Mirror Holder, 1.0 in. (25.4 mm) Diameter	2
9897	9897-M	Optical Filter Holder, Flip-Up™, 1.0 in. (25.4 mm) Diameter Filters, 8-32 (M4)	3
HM-1	M-HM-1	Optical Filter Mount, Edge Grip, 1.0 in. (25.4 mm) Optics, 8-32 (M4)	5
RM25A	RM25A	Optic Rotation Mount, 1.0 in. (25.4 mm), 2° Graduations	2
9401	9401-M	Rotary Mount, 1.0 in. (25.4 mm) Waveplates or Polarizers, 8-32 (M4) Thread	2
LH1-1R	LH1-1R	Optic Holder Cell, 1.0 in. (25.4 mm) Diameter Optics, Requires LM1-R Mount	3
LM1-R	LM1-R	Optic Cell Rotation Mount, 2° Graduations, For LH1 Optic Cells	3
LPXYZ-1H	M-LPXYZ-1H	Lens Positioner, 1.0 in. (25.4 mm) Diameter, XYZ, 100 TPI, 8-32 (M4)	1
LPXY-1H	M-LPXY-1H	Lens Positioner, 1.0 in. (25.4 mm) Diameter, XY, 100 TPI, 8-32 (M4)	2
HVM-1I	M-HVM-1I	Mirror Mount, Vertical Drive Industrial, 1 in. (25.4 mm), 2 Locking Allen-Keys, 8-32 (M4)	1
M1-PT	M1-PT	M1 Prism Mount, 2 Knob Actuators	2

Features

Includes Free 9-Drawer Cabinet

This component kit includes a free 9-drawer cabinet with custom pre-printed drawer labels for organizing and storing your kit's components. The labels visually identify the parts in each drawer for quick and easy storage and re-ordering. The 17 x 11 x 11 inch cabinet features a rigid and durable welded steel frame. It can be wall mounted to keep work surfaces clear or stacked to minimize the footprint.
