Optical Posts and Bases Kits
Optical Posts and Bases Kits

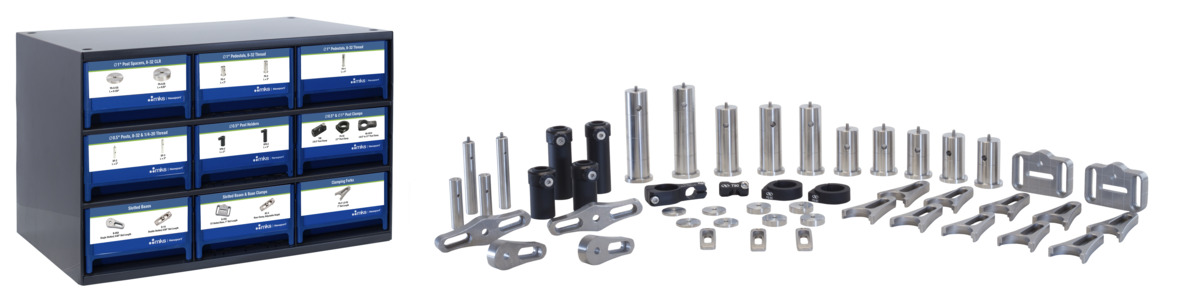

The OMK33 Optical Posts and Bases Kit offers an array of bases, post clamps, posts, pillar posts, clamping forks and other essentials totaling 49 products. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.
- Collection of 49 pillar and standard posts. post holders and bases
- Includes pre-labeled cabinet for easy setup, organization & part replacement
- Cabinet is wall-mountable and stackable. See All Features
Kit Components
| OMK33 | M-OMK33 | Description | Quantity | |
|---|---|---|---|---|
 |
B-05A | B-05A | Slotted Base, 0.68 in. Range Single Slot, Stainless Steel | 2 |
 |
B-1A | B-1A | Double Slotted Base, 0.68 in. Range, Stainless Steel | 2 |
 |
B-2SA | B-2SA | Double-Slotted Base, Stainless Steel, XY, 1.0 in. Range | 2 |
 |
BC-5 | BC-5 | Base Clamp, Adjustable-Height, Short, 1/4-20 Tapped Holes | 3 |
 |
PS-F-1.0 | PS-F-1.0 | Clamping Fork, 1.0 in. Pillars, 1.0 in. Slot Length, 1/4-20 (M6) Slot | 10 |
 |
PS-SC | M-PS-SC | Post Clamp, Sliding, 1.0 in. Diameter Posts, 8-32 (M4) Thread | 2 |
 |
PS-0.125 | PS-0.125 | Pillar Spacer, 1.0 in (25.4 mm) Diameter. 0.125 in. Thick, 8-32 (M4) CLR | 4 |
 |
PS-0.25 | PS-0.25 | Pillar Spacer, 1.0 in (25.4 mm) Diameter. 0.25 in. Thick, 8-32 (M4) CLR | 4 |
 |
PS-2 | M-PS-2 | Pillar Post, 1.0 in (25.4 mm) Diameter. 2.0 in (50.8 mm) Height | 5 |
 |
PS-3 | M-PS-3 | Pillar Post, 1.0 in (25.4 mm) Diameter. 3.0 in (76.2 mm) Height | 3 |
 |
PS-4 | M-PS-4 | Pillar Post, 1.0 in (25.4 mm) Diameter. 4.0 in (101.6 mm) Height | 2 |
 |
SP-2 | M-SP-2 | Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 (M4 & M6) Thread | 2 |
 |
SP-3 | M-SP-3 | Optical Post, 3.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 (M4 & M6) Thread | 2 |
 |
VPH-2 | M-VPH-2 | Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20 (M6) | 2 |
 |
VPH-3 | M-VPH-3 | Optical Post Holder, No Slip, 3.0 in. Height, 0.5 in. Posts, 1/4-20 (M6) | 2 |
 |
T90 | M-T90 | Optical Post End Clamp, Right-Angle, 0.5 in. Post, 1/4-20 (M6) Thread | 1 |
 |
RA-0510 | RA-0510 | Optical Post Clamp, Right-Angle, 0.5 in to 1.0 in Diameter Posts | 1 |
