0.5 inch Optical Posts and Accessories Kits
0.5 inch Optical Posts and Accessories Kits

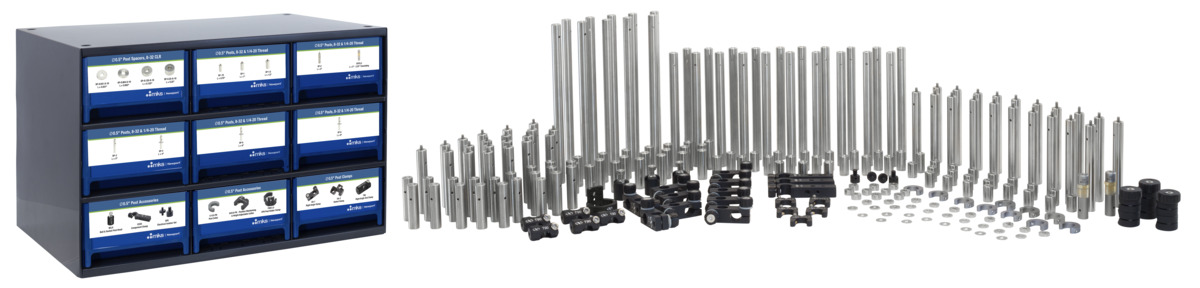

The OMK16 optical post and Accessory Kit provides a cost-effective collection of 234 of Newport’s latest 0.5 inch diameter optical posts, mounting accessories and post assembly components. This kit offers a variety optical posts, clamps, collars and other accessories allowing a wide range of setup options and easy installation. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.
- Collection of 234 optical posts, clamps, collars and other accessories
- Includes Pre-labeled cabinet for easy setup, organization & part replacement
- Discounted compared to individual component purchases See All Features
Kit Components
| OMK16 | M-OMK16 | Description | Quantity | |
|---|---|---|---|---|
 |
SP-.75 | M-SP-.75 | Optical Post, 0.5 in (12.7 mm) Diameter, 0.75 in (19.1 mm) Height | 20 |
|
SP-1 | M-SP-1 | Optical Post, 0.5 in (12.7 mm) Diameter, 1.0 in (25.4 mm) Height | 20 |
|
SP-1.5 | M-SP-1.5 | Optical Post, 0.5 in (12.7 mm) Diameter, 1.5 in (38.1 mm) Height | 20 |
 |
SP-2 | M-SP-2 | Optical Post, 0.5 in (12.7 mm) Diameter, 2.0 in (50.8 mm) Height | 20 |
 |
SP-3 | M-SP-3 | Optical Post, 0.5 in (12.7 mm) Diameter, 3.0 in (76.2 mm) Height | 20 |
 |
SP-4 | M-SP-4 | Optical Post, 0.5 in (12.7 mm) Diameter, 4.0 in (101.6 mm) Height | 20 |
 |
SP-6 | M-SP-6 | Optical Post, 0.5 in (12.7 mm) Diameter, 6.0 in (152.4 mm) Height | 20 |
 |
SP-8 | M-SP-8 | Optical Post, 0.5 in (12.7 mm) Diameter, 8.0 in (203.2 mm) Height | 10 |
 |
BTP2.0 | M-BTP2.0 | Translating Optical Post, 0.5 in (12.7 mm) Diameter, 8/32 & 1/4-20 (M4 & M6) | 2 |
 |
SPE | M-SPE | Electrical Isolator Set, 0.5 in (12.7 mm) Posts, 8/32 & 1/4-20 (M4 & M6) | 2 |
 |
CC05 | M-CC05 | Component Clamp, 0.5 in (12.7 mm) Posts, 8/32 & 1/4-20 (M4 & M6) | 3 |
 |
AC0.5 | AC0.5 | Post Collar, Position Maintaining and Height Adjustment | 5 |
 |
C-0.5 | C-0.5 | Post Collar, 0.5 in. Diameter Optical Posts | 10 |
 |
CA-2 | CA-2 | Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts | 3 |
 |
CA-1 | CA-1 | Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts | 10 |
 |
T90 | M-T90 | Optical Post End Clamp, Right-Angle, 0.5 in. Post, 1/4-20 (M6) Thread | 5 |
 |
PMC1.0 | PMC1.0 | Clamp, 1.0" Post and VPH Post Holder | 1 |
 |
BSJ1 | M-BSJ1 | Adjustable Optical Post Head, Ball and Socket, 8-32 (M4) Thread | 3 |
 |
SP-0.031-S-10 | SP-0.031-S-10 | Pedestal Spacer Pack, 1/32 in., 0.5 in. Diameter, 8-32 (M4) CLR | 10 |
 |
SP-0.063-S-10 | SP-0.063-S-10 | Pedestal Spacer Pack, 1/16 in., 0.5 in. Diameter, 8-32 (M4) CLR | 10 |
 |
SP-0.125-S-10 | SP-0.125-S-10 | Pedestal Spacer Pack, 1/8 in., 0.5 in. Diameter, 8-32 (M4) CLR | 10 |
 |
SP-0.25-S-10 | SP-0.25-S-10 | Pedestal Spacer Pack, 1/4 in., 0.5 in. Diameter, 8-32 (M4) CLR | 10 |
Features
Includes Free 9-Drawer Cabinet
This component kit includes a free 9-drawer cabinet with custom pre-printed drawer labels for organizing and storing your kit's components. The labels visually identify the parts in each drawer for quick and easy storage and re-ordering. The 17 x 11 x 11 inch cabinet features a rigid and durable welded steel frame. It can be wall mounted to keep work surfaces clear or stacked to minimize the footprint.
