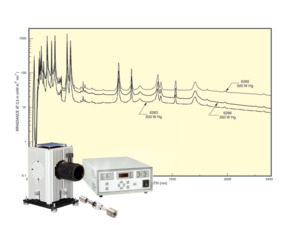

Mercury (Hg) arc lamps are ideal light sources for applications that require high intensity spectral lines emitted in the deep UV to visible light regions. Their unique UV emission spectra make them popular for unique applications that need enhanced UV output such as UV spectroscopy, UV curing and other industrial processes, and environmental and medical applications.
- Deep UV to Visible Light
- 50 to 500 Watt Lamps
- UV spectroscopy, UV curing Applications See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | 6281 Mercury Arc LampsArc Lamp, Mercury, 100 W, 0.25 x 0.25 mm Effective Arc Size | |||||
![]() | 6282 Mercury Arc LampsArc Lamp, Mercury, 50 W, 0.2 x 0.35 mm Effective Arc Size | |||||
![]() | 6283NS Mercury Arc LampsArc Lamp, Mercury, 200 W, 0.6 x 2.2 mm Effective Arc Size | |||||
![]() | 6285 Mercury Arc LampsArc Lamp, Mercury, 500 W, 1.1 x 4.1 mm Effective Arc Size | |||||
![]() | 6286 Mercury Arc LampsArc Lamp, Mercury, 350 W, 0.8 x 2.7 mm Effective Arc Size |
Compatibility
We offer complete light source systems as well as components for you to easily build your own systems.
When used with a Q Series lamp housing, the system will need the following components:
- Lamp
- Lamp Socket Adapter
- Lamp Housing
- Condensing Lens Assembly
- Rear Reflector
- Interface Kit
- Power Supply and appropriate cables
| Lamp Housing | Lamp Model | Lamp Socket Adapter | Condensing Lens Assembly Options | Rear Reflector | Interface Kit | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|---|---|---|
| 60000 | 6282 | 60013 | 60006 60008 60076 67017 |
60005 | 60025 | 69907 | 70051 | Low Power Q Series Hg |
| 6281 | 60012 | - |
When used with a Research Series lamp housing, the system will need the following components:
- Lamp
- Lamp Socket Adapter
- Lamp Housing (includes rear reflector and condensing lens assembly)
- Power Supply and appropriate cables
| Lamp Housing Options | Lamp Model | Lamp Socket Adapter | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|
| 66901 66902 67001 67005 |
6282 | 66158 | 69907 | 70051 | Low Power Hg |
| 6281 | 66150 | - | |||
| 6283NS | 66144 | 69910 | Medium Power Hg | ||
| 6286 | 66161 | ||||
| 6285 | 66162 |
Features
Mercury Lamp Shelf Life
We recommend purchasing replacement Mercury lamps only as needed. Hg arc lamps do have an unspecified shelf life, which over time can cause the end cap seals to leak and degrade lamp performance. Newport strives to keep Hg bulbs in stock to reduce lead times when ordering a replacement.
Arc Lamp Safety
Arc lamps may emit dangerous levels of UV radiation depending on their source type. Ensure that only authorized personnel are in the vicinity of the source, and wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves. Lighted UV warning signs, posted outside laboratory doors where UV sources are operating, can prevent accidental exposure. Newport also recommends using an electronic shutter to block the beam when the source is not in use but remains turned on. Alternatively, the beam can be safely contained by using beam tubes or fiber optic cables to deliver the light to a sample. It is recommended to vent the ozone that is produced by some lamp models to the outside or use the 66087 Ozone Eater.
Accessories
UV Safety Equipment
Resources
Literature
Light Sources(1.6 MB, PDF)
