MLT Series Low-Profile High-Precision Linear Motor Stages
MLT Series Low-Profile High-Precision Linear Motor Stages
The MLT Series of compact, low profile, high precision linear stages bridges the ultra-precision performance of the XM family and the compact VP family of linear stages. These stages showcase the latest innovations and expertise of MKS in precision stage design for various Industrial applications, while keeping the short setups expected of motion products when used with MKS motion controllers.
The MLT stages are ideal for typical scanning or point to point applications in semiconductor, industrial or research markets for metrology, sensor test and calibration, alignment and pick-and-place assembly.
- Compact, low profile, high repeatability design
- Stiff, FEM-optimized aluminum body prevents thermal bending effects
- Precision crossed roller bearing slides provide accurate linear motion
- Plug and Play - ESP compatible
- Easy to build multi-axis configuration See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MLT100 MLT Low Profile Aluminum Linear Motor StagesMotorized Linear Stage, 100 mm Travel, Linear Motor, 70 N Load, M4 | |||||
 | MLT200 MLT Low Profile Aluminum Linear Motor StagesMotorized Linear Stage, 200 mm Travel, Linear Motor, 70 N Load, M4 | |||||

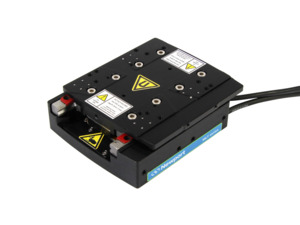

 | MLT25 MLT Low Profile Aluminum Linear Motor StagesMotorized Linear Stage, 25 mm Travel, Linear Motor, 50 N Load, M4 | |||||
 | MLT25-XYZL MLT Low Profile Aluminum Linear Motor StagesMotorized XYZ Stage, 25 mm Travel, Linear Motor, Left Handed | |||||
| MLT25-XYZR MLT Low Profile Aluminum Linear Motor StagesMotorized XYZ Stage, 25 mm Travel, Linear Motor, Right Handed | |||||
 | MLT250 MLT Low Profile Aluminum Linear Motor StagesMotorized Linear Stage, 250 mm Travel, Linear Motor, 70 N Load, M4 | |||||

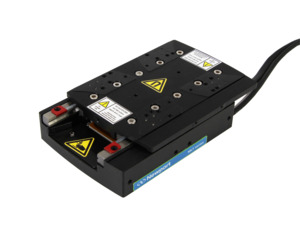

 | MLT50 MLT Low Profile Aluminum Linear Motor StagesMotorized Linear Stage, 50 mm Travel, Linear Motor, 70 N Load, M4 | |||||
| MLT50-XYZL MLT Low Profile Aluminum Linear Motor StagesMotorized XYZ Stage, 50 mm Travel, Linear Motor, Left Handed |
Compatible Controllers
Compatible motion controllers for these XM series linear motor/direct drive driven stages are:
- XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module. Not compatible with XPS-RLDM (1-Axis)
- XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
See our Stage-Controller Compatibility technical note for complete stages and controllers compatibility.
Specifications
Features
Reliable Design
Built with high strength aluminum alloy, the base of each MLT stage is optimized with Finite Element Method (FEM) for highest rigidity and best thermal performance. Select components like long life and high load crossed roller bearings, high force linear motors and high precision linear encoders are added with not only performance, but also reliability in mind. Built in limit switches prevent over travel and collision. Significant tests were conducted to ensure the high reliability performance of the MLT.
Ironless Motor
MLT series stages are equipped with MKS designed ironless motors that include hall effect sensors and thermistor in a very compact size. Compared to iron core motors, the main advantage of ironless motors is better speed stability (no cogging) and shorter settling time, which is critical for fiber alignment applications.
Low Cost of Ownership
MLT series compact, low profile and fast stages utilize less space, operate with higher accelerations and speeds, reducing operating costs. Also, due to their high reliability design they require low initial investment and need less maintenance.

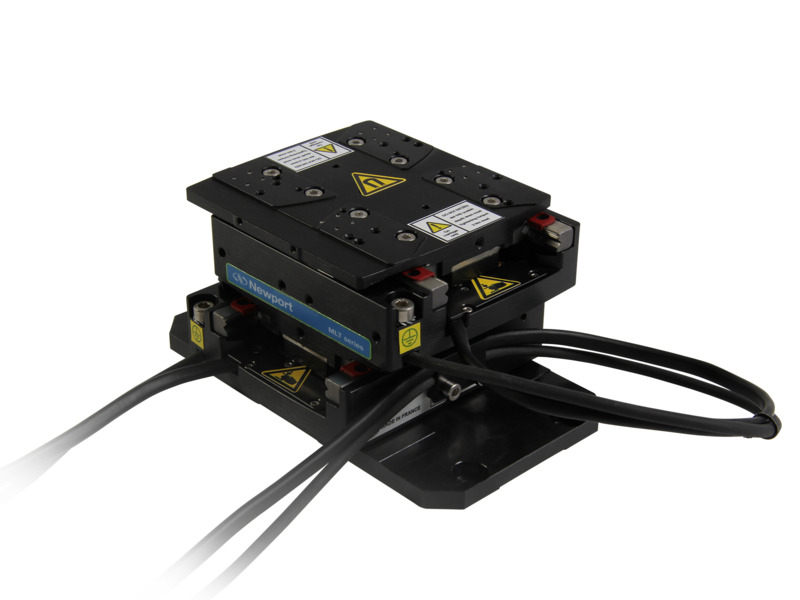

XY and XYZ Configurations

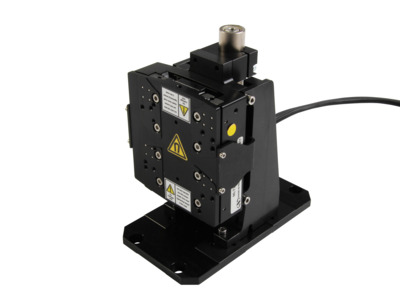

The MLT can be built into XY and XYZ stacks utilizing the available mounting holes. A magnetic shield MLT-XYPLATE is required between the X and Y stages. Cable chains can also be supplied as needed. Pre-assembled XYZ stacks are available in the short travel ranges. The MLT-Z stage features a magnetic counterweight to accommodate a range of vertical loads, while maintaining excellent positioning performance.
Plug and Play ESP Compatible
The MLT is compatible with XPS series standard MKS controllers that support plug and play ESP technology, making startup really easy without the need for complex driver configuration. (Note that for XY configurations, manual parameter setting is required.)

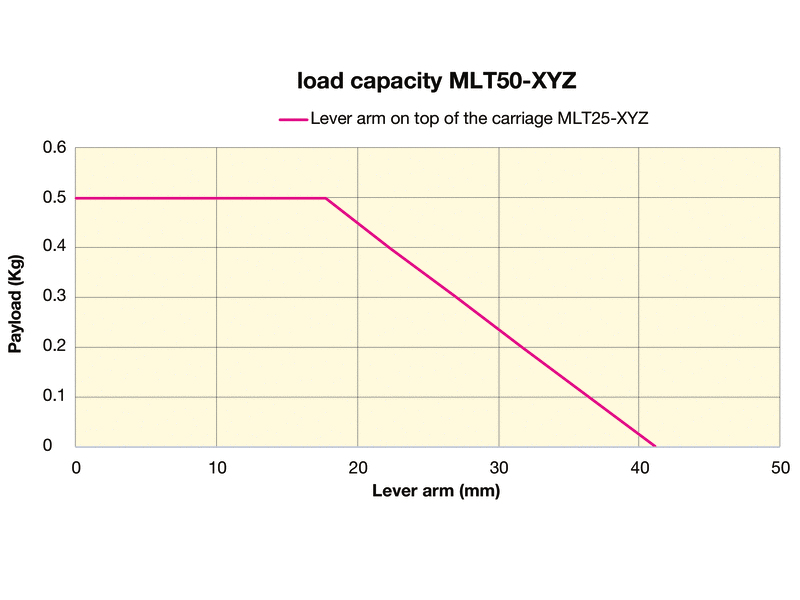

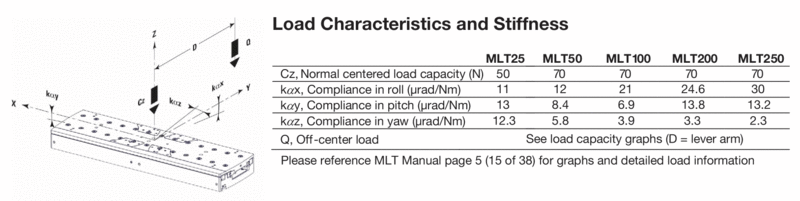

Load Characteristics
NOTE: Please reference MLT Manual page 5 (15 of 38) for graphs and detailed load information.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

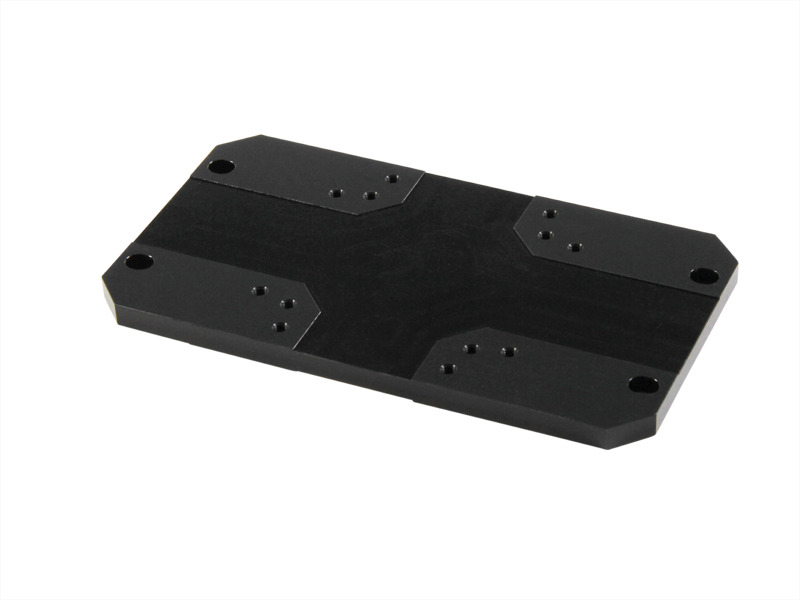

 | MLT-BP 1Base Plate, MLT Series Linear Stages | |||||
 | MLT-CML Cable Chain Kit, MLT200 and MLT250 | |||||
| MLT-CMS Cable Chain Kit, MLT25, MLT50 and MLT100 | |||||
 | MLT-XYPLATE Magnetic Barrier Plate, MLT Series Linear Stages | |||||
 | TR-M4M6-10 Thread Adaptor, M6 Male to M4 Female, pack of 10 |
- Fits: MLT25, MLT50 & MLT100
Resources
Manuals
Literature
MLT Cross Roller Linear Stages Datasheet(1.8 MB, PDF)
Other
MLT EU27 Dec of Conf.pdf(240.4 kB, PDF)
Solutions
Technical Notes
Methods to Determine Optimized Scaling Acceleration(3.4 MB, PDF)
