Quartz Tungsten Halogen Lamps

Quartz Tungsten Halogen (QTH) lamps are a popular alternative to arc lamps. By comparison, QTH lamps have better output stability, do not produce strong UV light emission, do not have intense spectral emission lines in their output, and do not produce toxic ozone. These advantages over traditional arc lamps make QTH lamps preferable for radiometric and photometric applications as well as excitation sources of visible to NIR light.

Intense Visible-NIR spectral output with minimal UV emission
Smooth spectral output curve
Various lamp wattages available
Open air mount available for select lamps

See All Features

Show Filters:

Showing 16 of 16 total products

Compatibility:

Description	Compatibility	Lamp Wattage	Approximate Flux	Average life	Price
6319 QTH Lamps Quartz Tungsten Halogen Lamp, 20 W	UNIVERSAL	20 W	450 lm	100 h	$35
6332 QTH Lamps Quartz Tungsten Halogen Lamp, 50 W	UNIVERSAL	50 W	1600 lm	50 h	$40
6333 QTH Lamps Quartz Tungsten Halogen Lamp, 100 W	UNIVERSAL	100 W	3600 lm	50 h	$45
6334NS QTH Lamps Quartz Tungsten Halogen Lamp, 250 W	UNIVERSAL	250 W	8500 lm	50 h	$45
6335 QTH Lamps Quartz Tungsten Halogen Lamp, 250 W, Long Lifetime	UNIVERSAL	250 W	8400 lm	300 h	$60

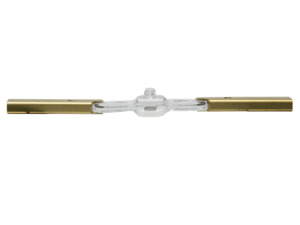

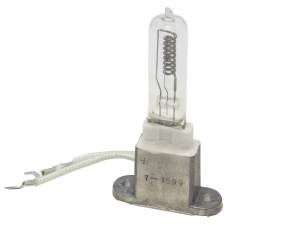

63350 QTH Lamps Calibrated Source Lamp, Quartz Tungsten Halogen, 1000 W, 250-2400 nm	UNIVERSAL	1000 W	27500 lm		$6,265
63355 QTH Lamps Calibrated Source Lamp, Quartz Tungsten Halogen, 200 W, 300-2400 nm	UNIVERSAL	200 W	5000 lm		$6,060
63358 QTH Lamps Calibrated Source Lamp, Quartz Tungsten Halogen, 45 W, 300-2400 nm	UNIVERSAL	45 W	705 lm		$5,860
6336 QTH Lamps Quartz Tungsten Halogen Lamp, 600 W	UNIVERSAL	600 W	16500 lm	75 h	$60
6337 QTH Lamps Quartz Tungsten Halogen Lamp, 50 W	UNIVERSAL	50 W	850 lm	2,000 h	$45

Show All

Compatibility

We offer complete light source systems as well as components for you to easily build your own systems.

When used with a Q Series lamp housing, the system will need the following components:

Lamp
Lamp Socket Adapter
Lamp Housing
Condensing Lens Assembly
Rear Reflector
Interface Kit
Power Supply and Appropriate Cable

Lamp Housing	Lamp Model	Lamp Socket Adapter Options	Condensing Lens Assembly Options	Rear Reflector	Interface Kit	Power Supply	Cable	Complete System
60000	6332	60043 60046 60050	60006 60008 60076 67017	60005	60090	OPS-Q250	70050*	Low Power Q Series QTH
	6333
	6337
	6319					68938		-
* Cable is included in interface kit.

When used with a Research Series lamp housing, the system will need the following components:

Lamp
Lamp Socket Adapter
Lamp Housing (includes rear reflector and condensing lens assembly)
Power Supply and Appropriate Cable

Lamp Housing Options	Lamp Model	Lamp Socket Adapter	Power Supply	Cable	Complete System
10-250 W 66881 66884 67011 67009	6337	60043	OPS-Q250	70050*	Low - Medium Power QTH
	6332
	6333
	6334NS
	6335				-
600-1000 W 66885	6336	6392NS	OPS-Q1000		High Power QTH
	6317	6392NS
	6315	6397
*Cable is included in the QTH housing.

When used with an open air rod mount, the system will need the following components:

Lamp
Lamp Mount
Power Supply

Lamp Mount	Lamp Model	Power Supply	Complete system
63966	63360	OPS-Q250	Open Air QTH
63966	63368	OPS-Q250
63965	63362	OPS-Q1000

Features

20 W Lamp Option

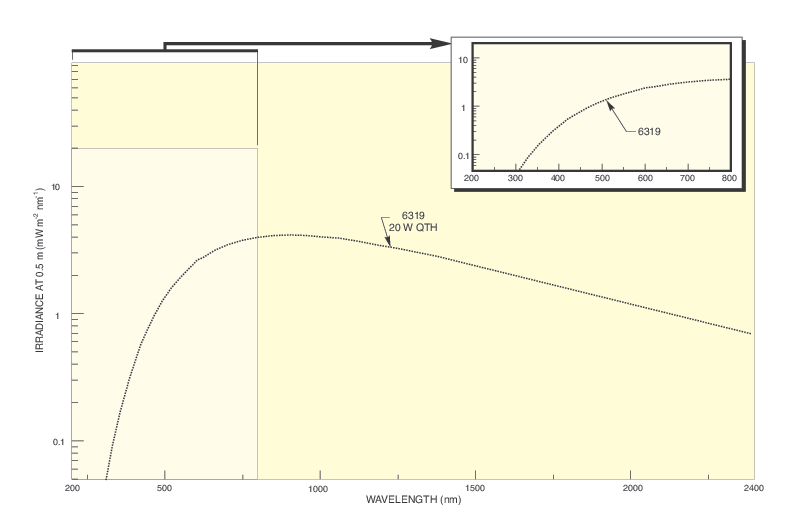

For users and applications that do not need the high intensity spectral output of larger QTH lamps, the 6319 is a low wattage alternative.

Two 50 W QTH Lamp Choices

Two different 50 W QTH lamps are offered. The 6332 is a short filament type QTH lamp. Short filament QTH lamps have better shock and vibration due to their compact construction and can be more useful for reimaging the filament onto a small input slit of a monochromator, for example. The 6337 is a long filament type QTH lamp. Long filament QTH lamps have an extended average lifetime.

100 W QTH Lamp Option

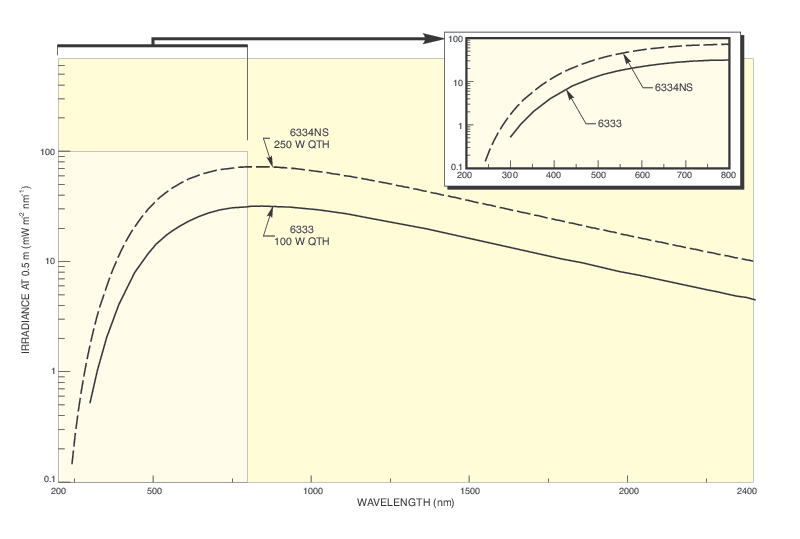

The 6333 is a 100 W QTH lamp for users that require a larger filament size and additional light output intensity.

150 W QTH Lamp Option

The 6346 is a 150 W QTH lamp for use in the fiber optic illuminator models 66088 and IQE-LIGHT-BIAS. It is the only QTH lamp offering with an integrated reflector, which makes it truly drop-in replaceable with no lamp alignment necessary.

250 W QTH Lamp Option

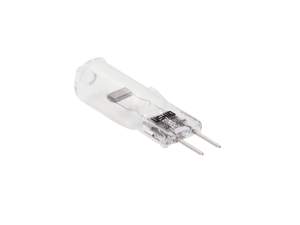

The 6334NS is a 250 W QTH lamp for use in the Tunable Light Sources and compatible with most Research QTH Lamp Housings. Due to its large power rating, this model cannot be used in the Q Series housings.

600 and 1000 W QTH Lamp Options

The 6336 600 W and 6317 1000 W QTH lamps are used with the high power Research QTH Sources and with lamp socket adapter 6392NS.

FEL Standard Lamp Offered

An FEL lamp is an ANSI standard 1000 W QTH lamp with a two pin base. The 6315 lamp is categorized as an FEL type.

Open Air Mount Option for Select Lamps

For particular QTH lamps, rod mounting is available instead of mounting inside the usual lamp housing setup. Rod mounts are open-air holders that provide a low cost alternative to lamp housings. Additional benefits when using a rod mount include the ability to place the lamp closer to the sample or desired area of illumination and the option of mounting the lamp horizontally () or vertically (). Users that need to collimate and focus the light output of the QTH lamp can select the appropriate lens setup from Newport's line of Lenses.

Horizontal Mount 63966: 63360, 63368
Vertical Mount 63965: 63362
