Top Performance Active and Tuned Damped SmartTable^® Optical Table Tops

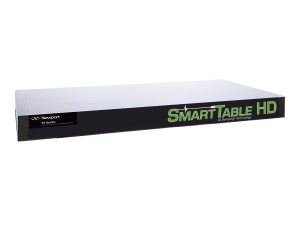

The SmartTable^® HD with hybrid damping uniquely combines the powerful IQ Damping Technology^® with the passive precision tuned damping used in RS2000 series tables. The passive dampers deliver unmatched performance compared to competitors, and give the HD table a good foundation to start with. IQ active dampers built on top of this foundation further eliminate all the resonance peaks in range, delivering the quietest tabletop for your application.

Requires S-2000A isolators or rigid LabLegs
Two precision tunable dampers
Two IQ active dampers
Constrained layer core damping attenuates broadband vibration
Damped composite edge finish eliminates sidewall resonance
Honeycomb core for a lighter, stiffer table with better dynamic rigidity

See All Features

Show Filters:

Showing 34 of 34 total products

Compatibility:

Description	Compatibility	Mounting Holes	Width	Length	Thickness
SST-410-12 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 10 ft., 12 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	10 ft.	12 in.
SST-410-18 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 10 ft., 18 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	10 ft.	18 in.
SST-410-8 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 10 ft., 8 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	10 ft.	8 in.
SST-414-18 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 14 ft., 18 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	14 ft.	18 in.
SST-46-12 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 6 ft., 12 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	6 ft.	12 in.
SST-46-8 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 6 ft., 8 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	6 ft.	8 in.
SST-48-12 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 8 ft., 12 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	8 ft.	12 in.
SST-48-8 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 4 x 8 ft., 8 in. Thick, 1/4-20	IMPERIAL	1/4-20	4 ft.	8 ft.	8 in.
SST-56-12 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 5 x 6 ft., 12 in. Thick, 1/4-20	IMPERIAL	1/4-20	59.06 in.	6 ft.	12 in.
SST-56-8 SST Active and Tuned Damped SmartTable® Optical Table Tops Optical Table, Hybrid Damped SmartTable<sup>®</sup>, 5 x 6 ft., 8 in. Thick, 1/4-20	IMPERIAL	1/4-20	59.06 in.	6 ft.	8 in.

Show All

Selection Guide

Optical Table Selection Guide

Newport offers a wide variety of Optical Tables including our broadband damped RPR Series Optical Tables, precision tuned damped RS Series Optical Tables, and actively damped SmartTable Optical Tables with IQ Damping Technology. Our optical table solutions are designed to fit any performance, budget and delivery need. From very demanding applications like confocal microscopy, spectroscopy or interferometry, to applications under a small budget, Newport has the right optical table for them all.

Table Top Series	Hybrid SmartTable	Active SmartTable	Upgradable SmartTable¹	Passive RS4000	Passive RS2000	Broadband RPR
Applications	Check Out Our Complete Optical Table Selection Guide
Active IQ Dampers	2	2	0 ⇒ 2	0	0	0
Precision Tuned Dampers	2	0	2	6	2	0
Broadband Damping	Constrained Layer Core, Damped Working Surface, Composite Edge Finish
Damping Performance	★★★★	★★★	★★★★	★★★	★★	★
Cost	$$$$	$$$$	$$$$	$$$	$$	$
Working Surface	4.8 mm Thick 430 Ferromagnetic Stainless Steel
Bottom Skin	4.8 mm Thick Carbon Steel
Core Design	Vertically Bonded Trussed Honeycomb
Side Panels	Highly Damped Composite Wood
Mounting Holes	Individually Sealed
Mounting Threads	1/4-20 (M6) on 1 in. (25 mm) Grid
Standard Tabletops	SST	ST	ST-UT2	RS4000	RS2000	RPR
Other Standard Versions	N/A	N/A	N/A	Cleanroom	Double Density	Non-Magnetic
Table Supports	Check Out Our Optical Table Supports
Table and Support Systems²	OTS-SST Isolated	OTS-ST Isolated Rigid	OTS-UT2 Isolated Rigid	N/A	INT4 Isolated Rigid	INT2 Isolated Rigid
Compliance Curve³

1. Upgradable SmartTable can be field upgraded to Hybrid SmartTable by installing two active IQ dampers.
2. Table system is offered with pneumatic isolation support or rigid support. The table top in table system has different leg mounting holes than standalone table tops.
3. The compliance curve is based on a 4 ft x 8 ft x 12 in table top.

Features

SmartTable Optical Table Top Overview

Learn about the features and performance of our innovative SmartTable optical table tops.

SmartTable Optical Table Installation

Learn about how to install your new SmartTable optical table.

Active, Tuned, and Broadband Damping Performance

SST Series SmartTable HD optical table top delivers the best damping performance among all table tops. Broadband damping is provided by a 4.8 mm thick table skin, a constrained layer core that attenuates broadband vibration, a damped working surface that eliminates skin resonance, and a composite edge finish that eliminates sidewall resonance. Two precision tuned dampers selectively eliminate two fundamental structural table modes and their entire harmonics. Two IQ active dampers effectively address medium frequency resonances of optical tables by sensing the vibrations and driving shakers at the opposite phase of the vibrations to cancel them out.

The compliance curve shows the positional motion of the structure for a given excitation force and frequency. The dashed red line is the rigid body line showing how an ideal optical table would perform with no relative motion. The blue line shows the natural frequencies of the optical table and how they these deviate from that of a rigid body. The red line shows the full damping performance of the table top with active damping turned on.

Compliance curve for a SST 4 ft x 8 ft x 8 in. (1200 x 2400 x 203 mm) table top.

Tuned Mass Damping - The Most Effective Passive Damping Method

Hybrid Damped and Upgradable SmartTable® optical table systems feature precision Tuned Mass Damping (TMD) technology to eliminate table resonances. TMD is the most effective method among all known passive damping methods, as it concentrates damping efforts where it's needed at the frequencies of dominant resonance modes. It is widely used in various industries for its efficiency and effectiveness of damping, such as the famous Grand Canyon Skywalk, Taipei 101 Building, and NASA's Ares I rocket. Compared to our top competitor's broadband damping methods which absorbs a moderate amount of vibration energy equally over the broadband, our tuned mass damping method targets at resonances and as a result is much more effective. The precisely tuned dampers work from as low as 25 Hz and go all the way up to 525 Hz, creating opportunity for optimum damping on larger optical tables, the resonances of which often fall outside of competitor's broadband frequency range. Once tuned at factory the dampers are locked securely and the frequency would not shift during shipping of the table.

Intelligent Q (IQ) Active Damping Technology

At the core of our SmartTable optical table tops is an advanced damping technology called Intelligent Q (IQ) Damping. It effectively addresses the medium frequency resonances of optical tables from 80 to 550 Hz by incorporating two pairs of sensors and actuators in the optical table top design. An external controller is used to coordinate the signal processing, enabling a fast and accurate damping response. Each sensor-actuator pair is controlled by a separate control channel. The sensor senses the vibrations and the actuator outputs a signal to compensate for the vibrations. The pre-amplifiers and band-pass filters condition the sensor output signal before feeding it to the digital controller. The digital controller implements recursive filters that compensate for the dynamic response of the shaker and correct the phase to bring the phase difference between the displacement and force close to (-π/2) in the desired frequency range.

Easy Set-up with One-Button Auto Tuning

SmartTable active damping products are easy to set up and operate. Simply connect the IQ dampers with controller and press "Auto-Tune" button on the controller, the system will automatically find the resonances of the table and set gain parameters. Once the tuning is finished, the dampers will start working to damp vibrations on your tabletop real time. This feature also enables users to improve their table performance under different payload or payload distributions - press "Auto-Tune" when you have a major change in your set up to achieve the maximized damping performance.

24/7 Vibration Monitoring Capability

The ST-300 active damping controller comes with powerful and intuitive software that allows user to generate FFT plots, time response plots and save graphs or export data for further analysis. The ST-300 software also provides time continuous 10 to 820 Hz vibration data monitoring that could be used as a system trouble shooting tool for long duration experiments.

Minimized Surface Motion

When the IQ damping system is activated, the motion on the table is minimized. Active damping eliminates main resonance vibration peaks in vibration spectra created by random excitation, particularly in the sensitive 100-300 Hz range.

Fastest Settling Time

With IQ active damping and precision tuned passive damping technologies in one table top, SST Series provides most accurate and timely compensation across the entire working ranges of the actuator-sensor pairs, delivering a quietest working surface for any challenging applications.

Super Rigid Trussed Honeycomb Core Design

The honeycomb core in our optical tables is different than our competitors. Each piece of the corrugated honeycomb steel sheet is emerged in proprietary elastomeric vibration absorbing materials and bonded vertically throughout the height of the optical breadboard or optical table, creating a much stiffer honeycomb core structure. This labor intensive procedure makes sure that Newport's optical breadboard or optical table has the most robust honeycomb structures.

Vertically Bonded Triple Core Interface

All Newport tables are vertically bonded along the height of the honeycomb core. Most other manufacturers forego this extra step because of added expense and time required to apply adhesive to each individual core member. Vertical bonding adds constrained layer damping effects into the core, while maximizing the table’s rigidity-to-weight ratio. The trussed core design enables a triple core interface at each honeycomb cell. Whereas open core designs only have two structural members at each interface, the Newport table has three offering a 50% increase in local rigidity. The three sheets are fully bonded for the full table height producing greater stiffness.

Highly Damped Side Panels

Side panels for optical tables are more than just covers. They should contribute to the overall damping performance of the table. Our optical tables use highly damped composite wood as side panels to help eliminate vibrations from the side. Composite wood has a much better damping performance than steel has a high elasticity and tends to allow vibration or ringing. Materials with low elasticity such as wood tend to dampen vibration and ringing. For example, home stereo speakers are typically enclosed by composite wood to damp the acoustic vibrations.

Individually Sealed Mounting Holes

All of Newport's optical breadboards and tables are with individually sealed mounting holes. Those mounting holes feature 19 mm screw depth and in contrast to some of the other products in the market that has channel for a row of holes or just a polymeric film, Newport's individually sealed holes are more reliable and easier to clean. This is because we believe in the integrity of the product - especially the core. When dust and liquids go into your optical breadboard and table, it may have a long term effect on the damping performance of the product and make the product degrade over time. A good quality breadboard and table lasts long time - tens of years and more. It's a good investment for a product with sealed mounting holes.

Precision Grid of Tapped, Countersunk & Deburred Mounting Holes

The 1/4-20 or M6 tapped mounting holes are countersunk and deburred. This ensures easy thread engagement while eliminating contamination problems. The mounting holes are located on a 1 in. or 25 mm grid with standard grid markings for easy and repeatable component placement.

Unique Pressure Bonding Process Ensures Superior Flatness

Metrology quality steel assembly platens are used to ensure the superior flatness of our optical tables. The platen supports the top surface of the table during the assembly and bonding process and imprints the top surface with the same flatness characteristics. Our platens are the largest and flattest in the industry. We use gravity pressure bonding to apply constant pressure across the optical table during the bonding process ensuring that the top surface conforms to the platen flatness.

Optical Table Support Options

We offer three types of supports for our optical tables. S-2000A Series pneumatic vibration isolators with automatic re-leveling provide industry leading vibration isolation performance, and includes an integrated, mechanical height adjustment system to allow improved table leveling, height control and compensation for non-level floors. SL Series closed pneumatic vibration isolators offer vibration isolation at a very affordable price when automatic re-leveling is not required. The isolators remove floor vibrations in the 10 Hz to 50 Hz range and support a wide variety of less rigorous research and production applications. RL Series non-isolating support legs offer rigid high load support where vibration isolation is not required.

Optical Table Accessory Options

We offer a compete set of optical table accessories to free up space on your optical table or enclose a table top experiment of application. Accessories include:

Nanostructure Imaging Improvements with SmartTables

The Nanostructures shown in the images above were built on and imaged with a Newport SmartTable optical table top. The image on the left was built with SmartTable active damping disabled. The image on the right was built with SmartTable active damping enabled. Source for images: Steven E. Kooi, Ph.D. Research Engineer, Institute for Solder Nanotechnologies, MIT

Typical Applications with SmartTable HD

Many applications could benefit from the SmartTable HD platforms. Compared to traditional optical tables, SmartTable detects and damps vibration in the real time in a broad frequency range, accurately and precisely damp multiple resonance peaks to provide a quiet platform for your applications. SmartTable HD adds two active IQ dampers on an already passively damped platform with Newport's precision tunable passive dampers, providing the most quiet platform in the industry.

Super resolution microscopy
Ultra precision nanostructure studies and fabrication Applications that involves constant load changes
Super long exposure holography, spectroscopy and microscopy
Any application that requires the best vibration control platform

Custom SmartTable Design Options

Newport has a dedicated custom design team for your custom needs. This team has been working with various types of materials, shapes (see doubled table tops), structures, hole patterns (and many more) for over 40 years, and has served customers across the world in research, aerospace, semiconductor and medical related fields. Newport is committed to providing: The most accurate and timely quoting response; The most professional communications of custom design review and changes; The optimum turnaround time and the highest quality end product. Contact Newport today for your custom needs.
